Summary of Contents for Ecostrad Standard Heating Element

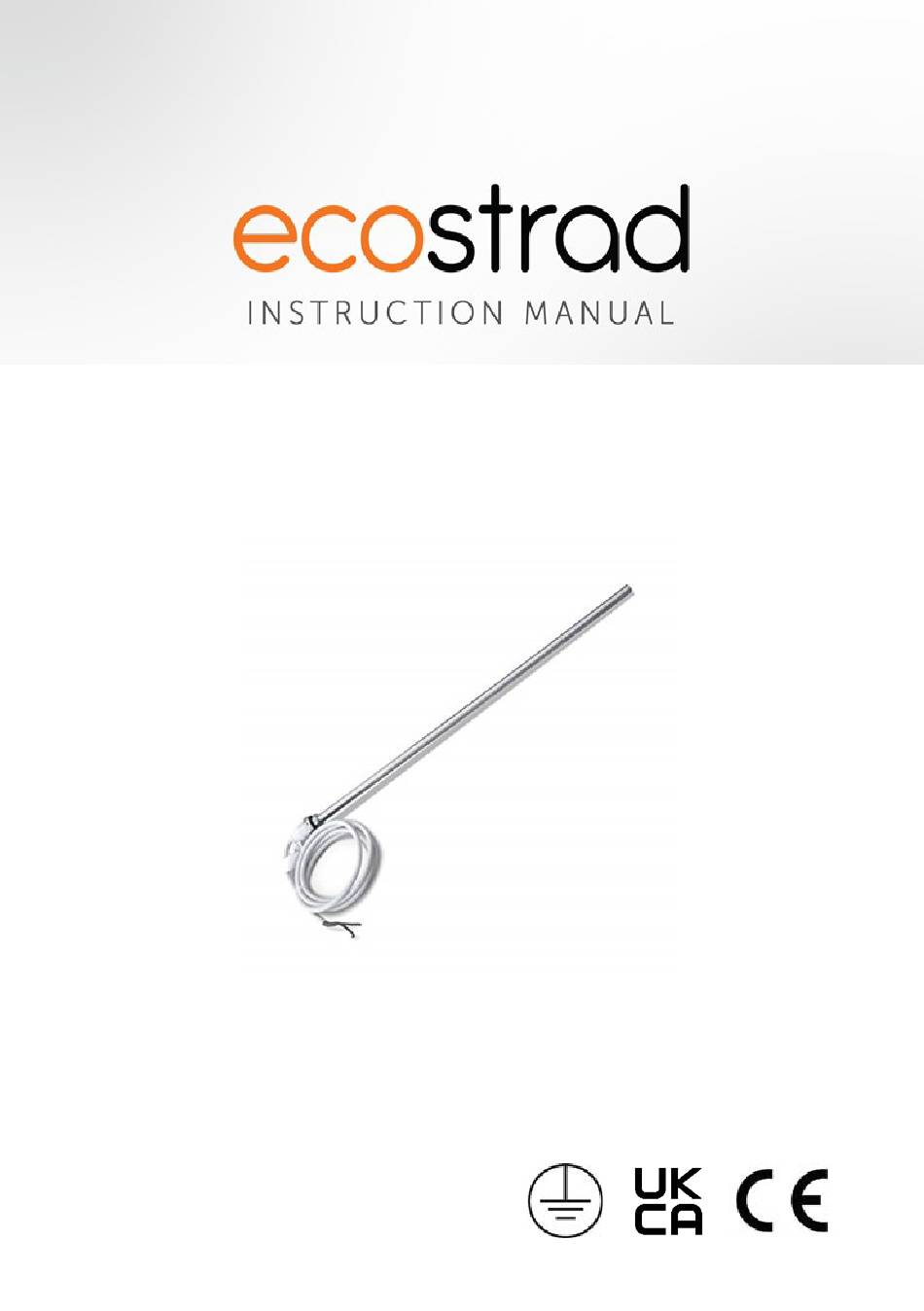

- Page 1 Ecostrad Standard Heating Element PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 2 Symbols Warning This symbol indicates a hazard with an average risk level which, if not avoided, could result in serious injury or death. Warning of electrical voltage This symbol indicates danger to the life and health of persons due to electrical voltage. Hot surface This symbol located on the device indicates that its surfaces are hot during and immediately after...
-
Page 3: Table Of Contents
Contents 1 | About the Manual - - - - - - - - - - - - - - - - - - - - - 3 2 | Technical Information - - - - - - - - - - - - - - - - - - - 3 3 | Warnings &... -
Page 4: About The Manual
About the Manual | About the Manual This manual describes the Ecostrad Standard Heating Element and details how to install and use the product. It is important to thoroughly review this manual before using the product. The declaration of conformity is issued under the sole responsibility of the manufacturer. -
Page 5: Warnings & Precautions
Warnings & Precautions | Warnings & Precautions READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Read this manual carefully before using or installing the heating element. Always store the manual in the immediate vicinity of the radiator or its site of use. Failure to follow the warnings and instructions may result in electric shock, fire, serious injury, or all of the above. - Page 6 Warnings & Precautions Warning Some parts of this product can become very hot and cause burns. Do not touch the surface when in operation. Do not install close to curtains or other combustible materials. Particular attention should be given where children and vulnerable adults are present.
- Page 7 Warnings & Precautions • The element is a Class I unit and therefore must always be earthed. • Ensure the element's power cord does not touch the hot parts of the device or the towel rail. • Do not use the device if you detect any damage to the element, particularly to the mains power cable.
- Page 8 Warnings & Precautions • The element must be disconnected from the mains during cleaning and maintenance. • Never attempt to disconnect the head from the heating element. The product is an integrated unit that has been factory sealed. • Do not open the casing of the element — any interference with internal components will invalidate the warranty.
-
Page 9: Installation
Warning Please take every precaution when filling the towel rail or fitting the element in order to avoid being burnt by hot liquid. Element Head Heating Element Power Cord Figure 2 | Ecostrad Standard Element components Ecostrad_Standard_Element_V1-02_24102024... -
Page 10: Fitting Instructions
Installation 4-1 | Fitting instructions If you have purchased a pre-filled towel rail with the element already installed, skip to step 7 below. Read all safety instructions and warnings stated in the preceding section of this manual. Failing to follow these instructions can cause damage to life or property. - Page 11 Installation 3. Tilt the towel rail until the fitting location is at the highest point, as shown in Figure 4. This prevents any fluid escaping if your towel rail is pre-filled. Figure 4 | Inlet tilted to its highest point before opening.. 4.
- Page 12 Installation 7. If the towel rail has been pre-filled by the manufacturer, skip to the next step. Do not tamper with the heating medium in pre- filled towel rails. 8. If the towel rail is yet to be filled, tilt the towel rail so the next free filling cap is at the highest point.
- Page 13 Installation WARNING It is critical that the correct volume of heating medium is used. Under-filling the radiator will impede circulation and prevent the unit from heating up. Overfilling the radiator can cause a dangerous build up of pressure as the fluid heats up. A suitable air cushion must be maintained.
-
Page 14: Warranty
What does the warranty cover? Within the stated period, starting from the date the customer receives their unit, Ecostrad guarantee to repair or replace the unit where a fault is due to defects in materials or manufacturing. What does the warranty NOT cover? The warranty does not cover any defect arising from damage, negligence, usage outside the product’s intended purpose or... - Page 15 The warranty covers only the model shown on the purchase invoice. The warranty covers the repair or replacement of the defective product only and Ecostrad shall have no liability for installation costs or consequential losses however incurred. Claims must be made with the establishment where the device was purchased.
-
Page 16: Disposal
For queries, contact: The UK manufacturer The ROI importer Ecostrad Ltd. Ignition Heatco Ireland Limited Unit 21 Ash Way Unit 282 Avenue C Block G...
