DMP 505DC-PLATE Installation Manual

505DC-PLATE MOUNTING PLATE
Installation Guide
505DC-PLATE Mounting Plate
DESCRIPTION
The 505DC-PLATE Mounting Plate
is designed to install a DualComNF
Fire Communicator into a 505-12
power supply enclosure.
Compatibility
• DualComNF Network Universal
Fire Communicator
What is Included?
• One 505DC-PLATE Mounting
Plate
• Hardware pack
1
INSTALL THE MOUNTING PLATE

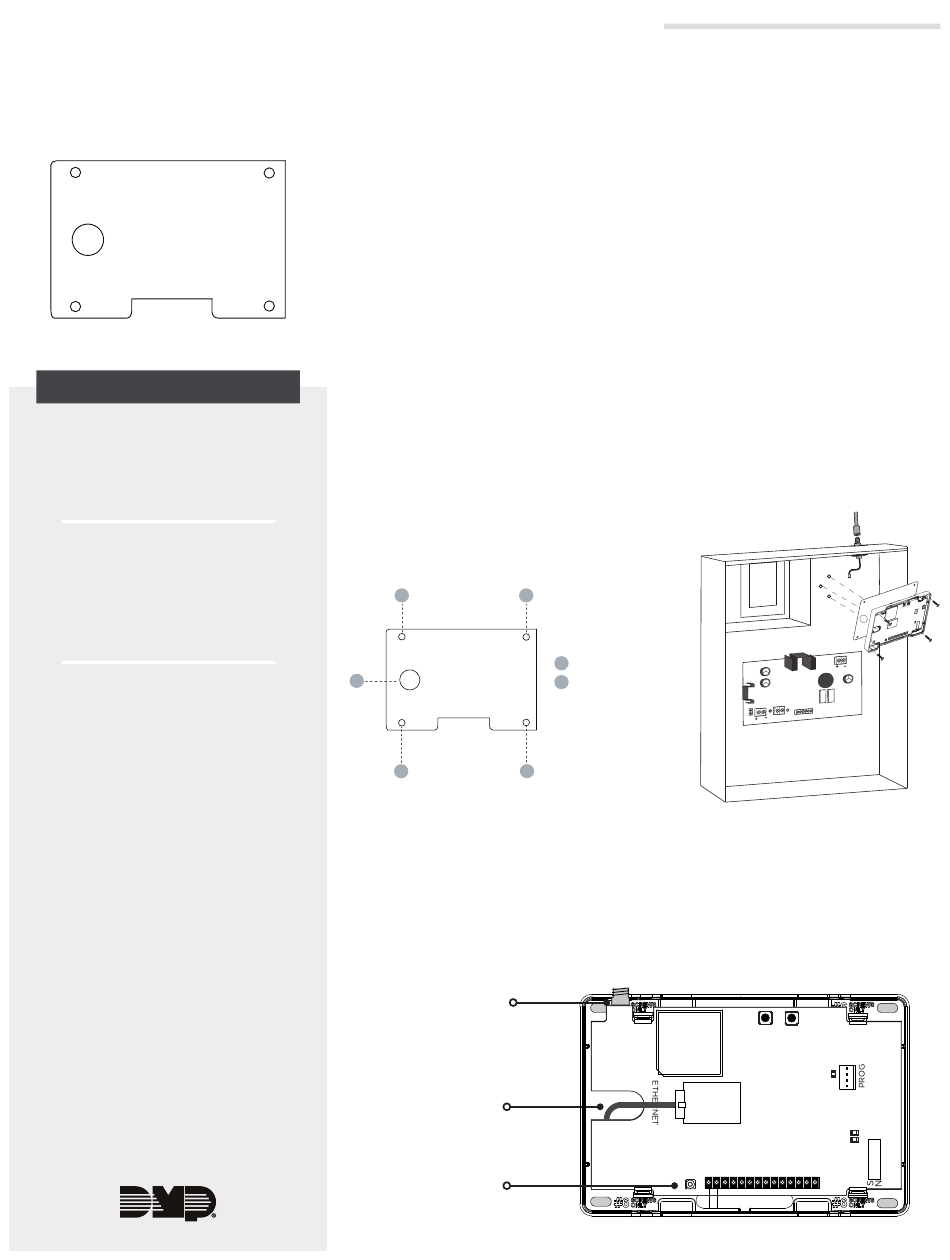

During mounting plate installation, refer to Figure 1 and Figure 2.
1. Use three of the included screws to mount the back side
of the 505DC-PLATE to the upper right side of the 505-12
enclosure using the 3-hole mounting pattern.
2. Remove the tamper tab from the back of the DualComNF
housing and run the network cable through the Network
Connection port (A).
3. Use four included Phillips screws to secure the DualComNF
to the 505DC-PLATE through the mounting holes (B).
Tighten screws in a crisscross pattern. Do not overtighten.
4. Observe polarity and wire the - DC + terminals of the 505
Power Supply to the - DC + terminals of the DualComNF.
Refer to the DualCom Series Programming and Installation
Guide (LT-1859) to finalize installation.
B B
A
B B
Figure 1: Mounting Hole Locations
2
WIRE THE COMMUNICATOR
When connecting component wires, route all wires so they will
not interfere with the tamper switch. See Figure 3 for wire routing
options.
DualComNF SMA
Connector
Network
(Routed behind
Backing Plate)
Tamper
A
Network Connection Port
B
DualComNF Mounting Holes
Figure 2: Final Installation
+DC- Z1 Z2 Z3 G +Z4- 01 02 T1 R1 T2 R2
Figure 3: DualComNF PCB
DC
AC TRBL BATT TRBL
AC AC
BAT
LOAD RESET
