Summary of Contents for Riftek RF096-Insp Series

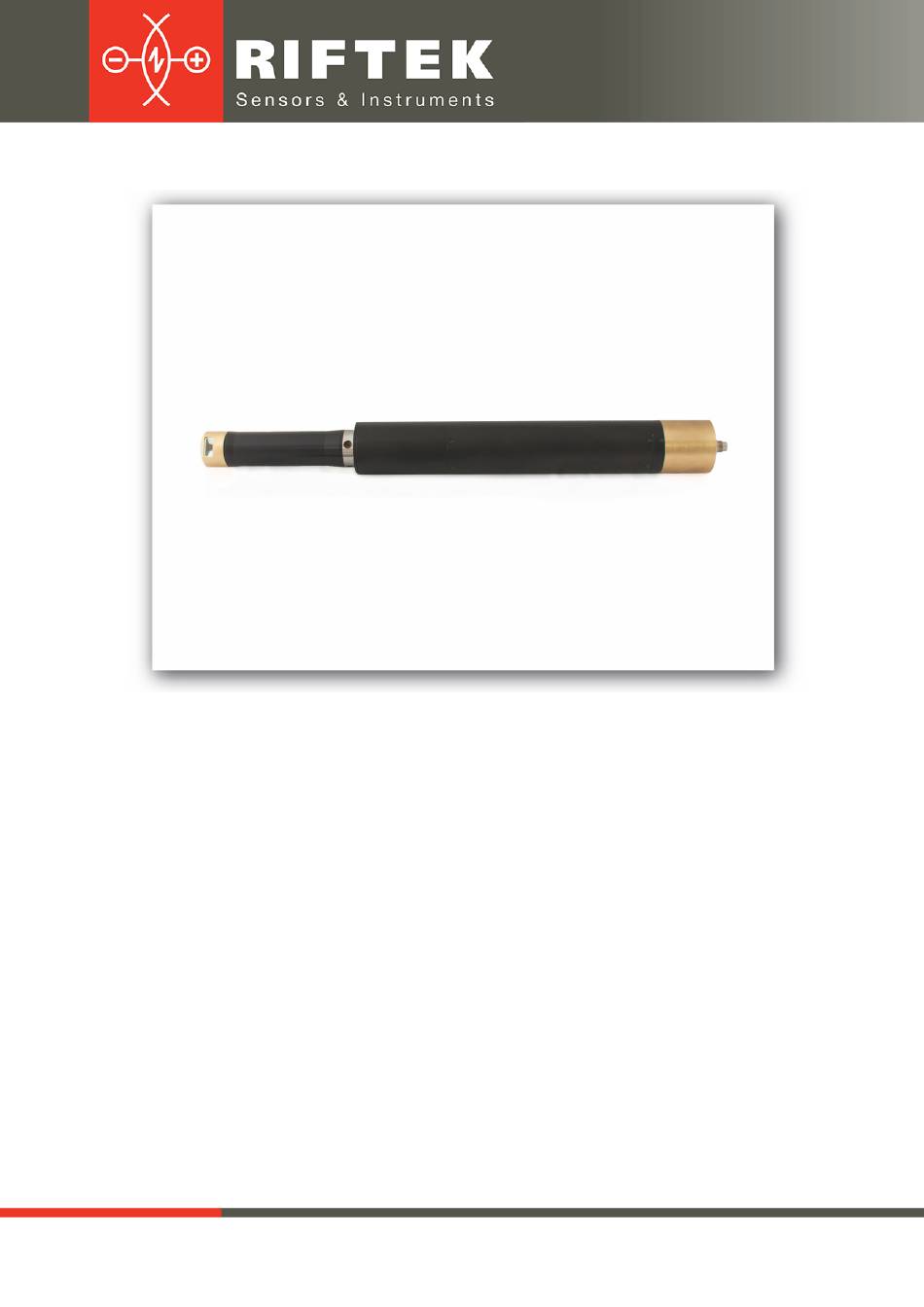

- Page 1 LASER INSPECTION SYSTEM RF096-Insp Series User's manual www.riftek.com info@riftek.com Certified according to ISO 9001:2015...
-
Page 2: Table Of Contents
Laser Inspection System. RF096-Insp Series Contents Safety precautions ...........................3 CE сompliance ...........................3 Laser safety ...........................3 General information ...........................3 Basic technical data ...........................4 Example of item designation when ordering ...........................4 Structure and operating principle ...........................5 Dimensions and mounting ...........................6 Overall and mounting dimensions ........................... -
Page 3: Safety Precautions
Laser Inspection System. RF096-Insp Series Safety precautions · Use supply voltage and interfaces indicated in the system specifications. · In connection/disconnection of cables, the system power must be switched off. · Do not use the system in locations close to powerful light sources. -
Page 4: Basic Technical Data
Laser Inspection System. RF096-Insp Series Basic technical data Param eter Value Version 1 Version 2 Inspected grooves diameter range, mm 35...53 25...30 Minimal size of detected debris, mm 0.03 (thickness) x 0.1 x 0.1 Space resolution (points/turnover) 3200 Laser sensor linearity, um ±10... -
Page 5: Structure And Operating Principle
Laser Inspection System. RF096-Insp Series Structure and operating principle Operation of the system is based on the scanning of the item surface by a laser triangulation sensor. (NOTE: Version 1 uses a binocular sensor). The system contains the laser sensor mounted on the rotation module. -
Page 6: Dimensions And Mounting
Laser Inspection System. RF096-Insp Series Figure 1.2. Version 2 Dimensions and mounting Overall and mounting dimensions Overall and mounting dimensions of the system are shown in Figures 1.1. and 1.2. The housing is made of anodized aluminum. The front panel of the laser sensor has a glass window for laser beam output and for receiving radiation reflected from the object under control. -
Page 7: Cables
Laser Inspection System. RF096-Insp Series Pin number Assignment Power- AL (output) IN (input) Power+ Cables Designation of cable wires is given in the table below: Pin number Assignment Wire color RJ-45 White-orange RJ-45 Orange RJ-45 White-green RJ-45 Green free lead... -
Page 8: Operating The System
Laser Inspection System. RF096-Insp Series Operating the system The inspection cycle is fully automated and operation of the system is reduced to the work with two logical signals. 1. To start the inspection cycle, set a high logic level on IN input. By the wave- rise of the IN pulse (transition to a high level) the triangulation sensor turns the laser ON. -
Page 9: Service Program
Laser Inspection System. RF096-Insp Series Service program 12.1 Function The service program is intended for: · Testing and demonstration of work of the Inspection system. · Setting of some system parameters. 12.2 Network setting All systems are shipped with the following default network configuration: IP address of the system –... -
Page 10: Parameters
Parameters panel and select Write to FLASH. Warranty policy Warranty assurance for the Laser Inspection System RF096-Insp Series – 24 months from the date of putting in operation; warranty shelf-life – 12 months. Revisions... - Page 11 Laser Inspection System. RF096-Insp Series BRAZIL BULGARIA CHILE CAPI Controle ASCO RAIL sp. z o.o. MOL INGENIERIA LTDA e Automaçã o Ltda EXCLUSIVE REPRESENTATIVE EXCLUSIVE REPRESENTATIVE FOR RAILWAY EQUIPMENT FOR RAILWAY EQUIPMENT Rua Itororó, 121, CEP 13466-240 Americana-SP, Brazil ul. Wielowiejska 53, 44-120 República de Honduras 11936...
