Page 1: B Connectivity - Plate
Manual UX BYOM Smart Switch Doc Ref: 770-00070 Rev1 31/10/23 Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 2: Table Of Contents
6.D.4 Mode Set-Up 6.D.5 Input 1 USB-C 6.D.6 Input 2 HDMI 6.D.7 Auxiliary 1 6.D.8 System Off 6.D.9 In Summary: PC goes to sleep 6.D.10 Manual Control / Testing Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... - Page 3 Ashton Bentley Group Limited. Under the law, reproducing includes translating into another language or format. As between the parties, Ashton Bentley Group Limited retains title to and ownership of all proprietary rights with respect to the software contained within its products.
-
Page 4: Important Safety Information
1. Important Safety Information Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... - Page 5 • Always use suitable cable management or install cables under a raised floor to avoid trip hazards. If you notice these conditions with a product that is not supplied by Ashton Bentley, immediately disconnect from the Ashton Bentley product, and stop using that product until you can contact •...
-
Page 6: Please Read This First 4 Section
Product Components Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 7: A Box Contents
E: Compliance & Conformity. 2.C Shipping Weights & Dimensions F: Unit serial number. G: Unit serial number barcode Shipping Weight: 0.55Kg Dimensions (mm): (L) 245 x (W) 160 x (H) 90 Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 8: Ux Byom Smart Switch
UX BYOM Smart Switch Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 9: A Overview

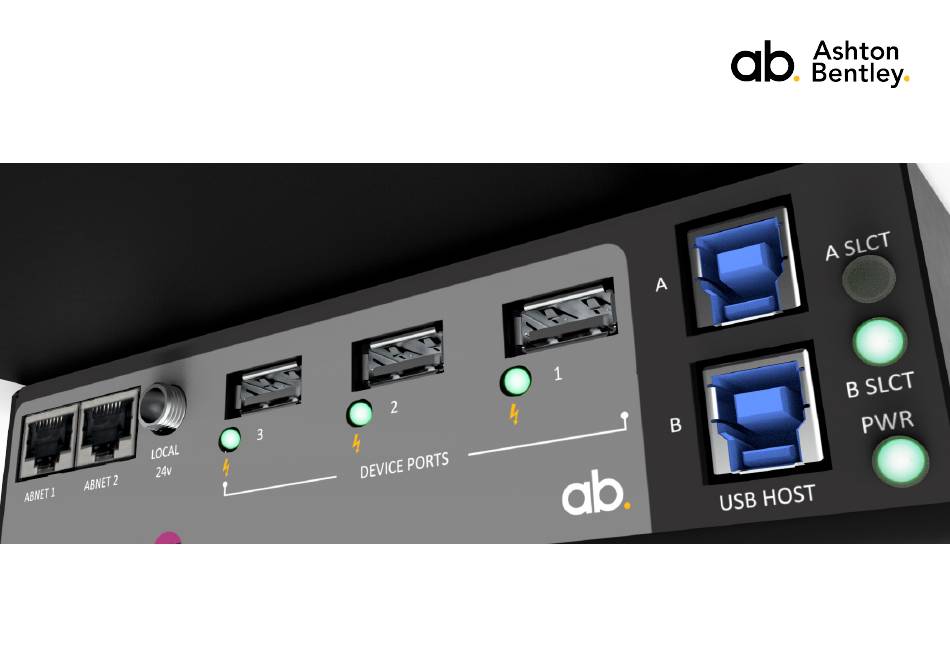

3.A Overview The UX BYOM Smart Switch is an intelligent USB switch/hub which allows the switching of USB peripherals between a room PC/NUC and a laptop. The UX has: • 2 host ports to connect to laptop/room PC • 3 device ports for connecting speaker bars, cameras etc. - Page 10 Do not connect the new 24v PSU to the previous version, or the older 5v PSU to the new version of Please read the legend for the local power connection and match to an appropriate power supply. Using an incorrect Power Supply will invalidate the warranty. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24...
- Page 11 Connectivity – Plate 2 Connection Type Function Service Micro USB Service port for firmware upgrade. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24...
-
Page 12: Setup & Initial Power Up
4. Setup & Initial Power Up Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 13: A Setup
For connection details please refer to Section 5 if using the UX in Standalone mode, or Section 6 if using the UX in Control mode with a TX2 / DX2. Refer to Section 7 for trouble shooting tips. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 14: Standalone Mode
5. Standalone Mode Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... - Page 15 When the UX is switching between hosts, the USB power to the device ports will turn off momentarily, in order to ensure the connected devices initialize correctly with the new host. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24...
-
Page 16: Control Mode With Dx2 Room Hub
6. Control Mode with DX2 Room Hub Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 17: Abnet & Usb Connections
2.0m USB 2.0 Cable UX USB HOST port B to the Room PC Long USB 2.0 cable (supplied with the camera bar) UX any DEVICE PORT to the videobar Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 18: B System Schematic
6.B: System Schematic Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 19: B System Setup
If you can ping the DX2 but not connect to it, check the firewall settings. NOTE: The network port on the TX2 only connects to the USB-C cable and cannot be used to configure the system. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 20: Tx2 / Dx2 Settings
“05 Copy from DX2 Display 1” setting. This will copy the EDID from the display to each of the inputs. When the EDID settings are changed, the word “Success” should appear at the top of the screen. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 21: Dx2 Inputs - Auto Switching
• DX2 Inputs – Auxiliary 1 set to ‘On’ and Auxiliary 1 Auto Switch is set to ‘On’ • Auto Switch – select ‘TX2 takes precedence over Auxiliaries” Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 22: Cec
The DX2 can control a connected display using CEC (Consumer Electronics Control). The reliability of this varies between different displays of different ages and manufacturers. If not required, turn CEC off. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 23: Mode Set-Up
Video routing together with USB port power (Hot plug detect control), UX Control and Display Control can be set here for each Mode and hence each input. The default set-up should work, however check settings as shown on the following pages. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 24: Input 1 Usb-C
Port Power: On Host Select: A Toggle Power: Yes DX2 USB Hub Port Power: On Toggle Power: No If any changes are made, don’t forget to push the ‘Save’ button Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 25: Input 2 Hdmi
Port Power: On Host Select: B Toggle Power: No DX2 USB Hub Port Power: Off Toggle Power: No If any changes are made, don’t forget to push the ‘Save’ button Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 26: Auxiliary
Port Power: On Host Select: B Toggle Power: Yes DX2 USB Hub Port Power: Off Toggle Power: No If any changes are made, don’t forget to push the ‘Save’ button Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 27: System Off
Port Power: On Host Select: B Toggle Power: Yes DX2 USB Hub Port Power: Off Toggle Power: No If any changes are made, don’t forget to push the ‘Save’ button Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... - Page 28 PC via host port ‘B’ on the UX Smart Switch. UX port power is on. Video is routed from the PC to Aux 1 in the DX2 and then to output 1. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24...
- Page 29 6.D.9 In Summary: laptop is disconnected When the laptop is disconnected, the UX will automatically flip the Poly Studio back to the PC if it is awake. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24...
-
Page 30: In Summary: Pc Goes To Sleep
When the PC goes to sleep, the system will turn off. The UX port power will then turn off and this disconnects the Poly Studio from the PC. Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 31: Manual Control / Testing
LEDs change on the UX according to the settings. With a USB-C laptop connected, you can manually change modes here Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 32: Troubleshooting
7. Troubleshooting Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 33: A Troubleshooting
5V or 24V is used, no other voltage should be used. We recommend a minimum of 1A. If in doubt, contact Ashton Bentley support. Note that connecting an incorrect power supply will cause significant damage to both the UX and any connected devices, and invalidates the warranty. -
Page 34: Technical Data
8. Technical Data Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 35: Ux Specification
Power Consumption 3W (excluding connected USB devices) Operating Temperature 32 -104°F / 0 -40°C Storage Temperature -4 -140°F / -20 -60°C Relative Humidity 20 -90% RH (no condensation) Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 36: B Ux Dimensions
8.B UX Dimensions 164 (6.5”) The BX unit is housed on a standard Ashton Bentley back plate for mounting under furniture or inside cabinets. Manual - BX USB-C Breakout Hub Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 37: Environmental Policy
9. Environmental Policy Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... - Page 38 All Ashton Bentley products have been designed to provide many years of trouble-free service, however, when the time comes to dispose of your system, Ashton Bentley offer a fully inclusive program under the European WEEE directive 2012/19/EU and its subsequent amendments.
-
Page 39: Warranty
10. Warranty Manual - UX BYOM Smart Switch Doc Ref: 770-00070 - Rev1 31/10/24... -
Page 40: Warranty Overview
Ashton Bentley in the UK. The warranty services will be managed and provided by an Ashton Bentley approved service 2. Should a fault occur you simply report the fault to Ashton Bentley or your local service partner who is fully supported by Ashton Bentley. - Page 41 © 2011-2023 Ashton Bentley Group limited, All rights reserved. Ashton Bentley®, the Ashton Bentley logo Want to know more? and the names and marks associated with Ashton Bentley’s products are trademarks and/or service marks of Ashton Bentley Collaboration Spaces and are registered and/or common law marks in the United States and various other countries.
