Summary of Contents for WULI WMF-10005-5S
Page 1

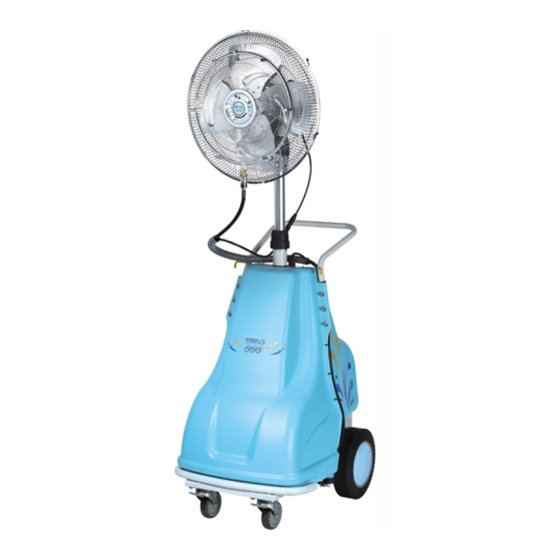

物理農業機械股份有限公司 WULI AGRICULTURE MACHINE CO., LTD. 動力噴霧機、高壓洗淨機、微霧系統專業設計製造 PORTABLE MISTING FAN OPERATION MANUAL MODEL WMF-10005-5S WMF-10005-6S WMF-10005-5D WMF-10005-6D WMF-10005-5F WMF-10005-6F 感謝您購買物理產品,使用前請詳閱本說明 Thank you for choosing our product. Please read the operation manual before use. W U L I A G R I C U L T U R E M A C H I N E C O .
GENERAL SAFETY INFORMATION ATTENTION Read the manual and safety precautions before using the misting fan. Please make sure the misting fan is properly grounded. While operating the misting fan, please supervise the safety of children. To reduce the risk of short circuit, please place the misting fan in a dry place. ...
WMF-S SERIES OVERVIEW 【FRONT VIEW】 【BACK VIEW】 Fan Power Switch Filter (1) Quick Connector Fan Post Fan Power Coupling Digital Timer Water Tank Water Gauge Inlet Stand Drain Cap/Filter (2) Wheel Air Release Valve Castor...
Page 4
WMF-D SERIES OVERVIEW 【FRONT VIEW】 【BACK VIEW】 Fan Power Switch Filter (1) Fan Power Coupling Fan Post Quick Connector Digital Timer Inlets Water Gauge Water Tank Drain Cap Wheel Air Release Valve Castor...
Page 5
WMF-F SERIES OVERVIEW 【FRONT VIEW】 【BACK VIEW】 Fan Power Switch Filter (1) Fan Post Quick Connector Fan Power Coupling Digital Timer Water Tank Water Gauge Inlet Air Release Valve Wheel Castor Drain Cap/Filter (2)
INSTRUCTIONS A. Before Operation 1. Lock the castors to prevent the misting fan from accidentally moving. 2. Make sure the fan kickstand is release before moving. 3. Make sure the fan is connected securely to the unit and adjust the fan height. 4.
Page 7
24-HOUR DIGITAL TIMER INSTRUCTIONS A. Parts Of The Timer Countdown Display Timer Display Auto Mode Indicator Light Manual Mode Indicator Light Setup Mode Indicator Light Alarm Indicator Light System ON Indicator Light System OFF Indicator Light OFF/Enter Button Automatic/ Left Button Manual/ Right Button Setup/ Down Button 24 Hour Mode Interval...
C. Continuous Running Press for 5 seconds. Auto Running Press for 5 seconds. The default setup is 40 sec. running and 15 sec. stop. E. Setting The Spray & Stop Intervals E-1. Setup the spray time (Max. 99:59, Min. 0:15) E-1-1 Press and hold for 5 seconds E-1-2 Press...
Page 9
E-2. Setup the stop time (Max. 99:59, Min. 0:15) E-2-1 Use to left and right to select the column. E-2-2 Press to adjust the time E-2-3 Press to finish the setup. ※Note: The minimum stop time is 15 seconds. The timer will not allow a stop interval shorter than this.
G. Alarm Indicator The Alarm Indicator light will be on if the system has stopped due to a lack of water. Please check the water tank then restart the misting fan after adding sufficient water. ※Note: Never attempt to run the misting fan without water, as this will cause serious damage to the pump components.
Spray Mode 1: Press and hold for five seconds. The MOTOR light will turn on and the misting fan will alternately start spraying for 40 seconds and stop for 15 seconds. Spray Mode 2: Press and hold for five seconds. The MOTOR light will turn on and the misting fan will alternately start spraying for 40 seconds and stop for 25 seconds.
Page 12
1. Open the cover. 2. Unscrew the oil drain plug. Please use a container or a tray to catch oil as it comes out of the pump. When the oil stops draining, please refasten the plug. 3. Carefully refill 110 ㏄ of motor oil of #30 or #40 weight and make sure the oil level is up to the middle of the oil window.
