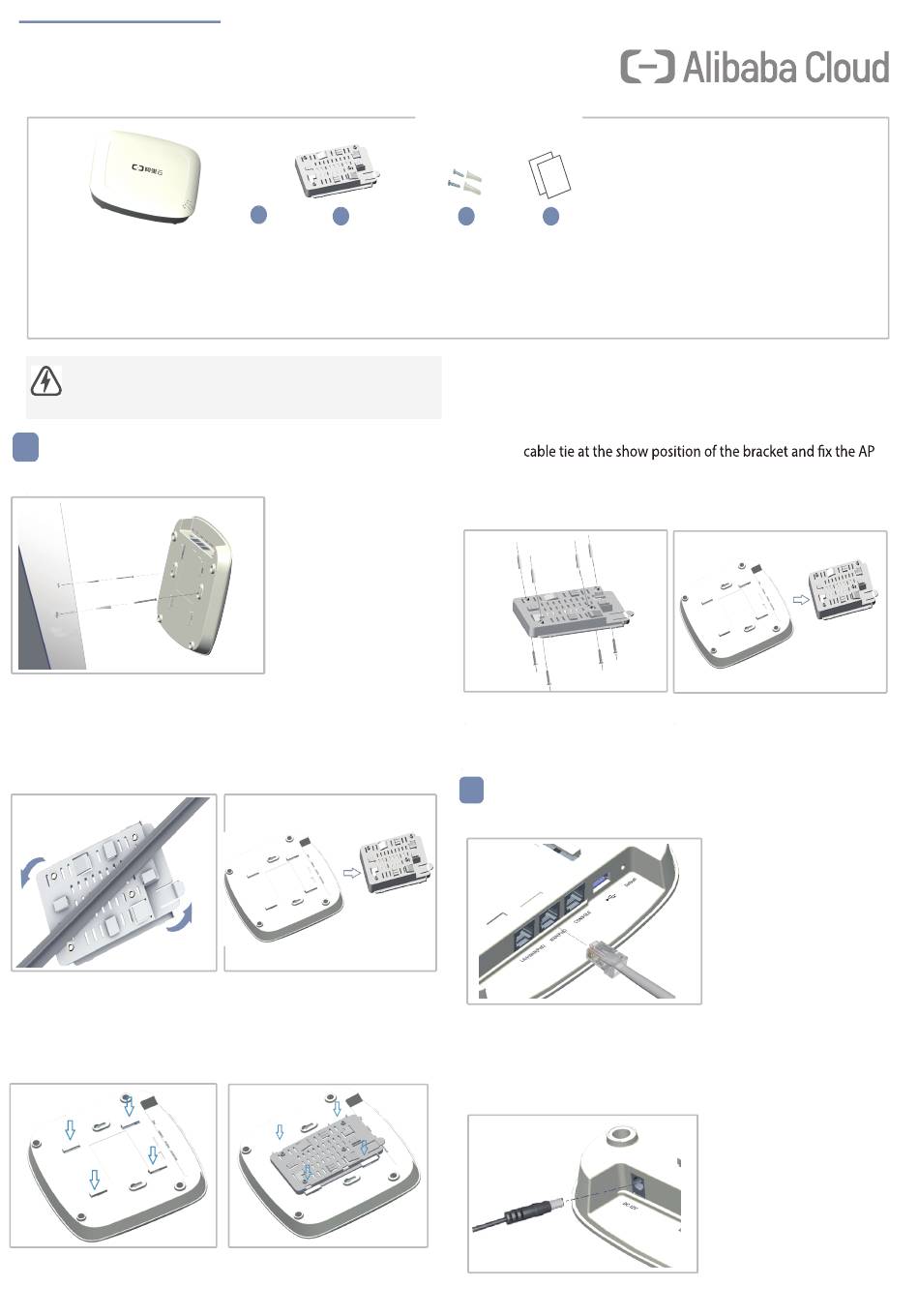

Quick Start Guide
AP8220 Wireless Access Point
1.
AP8220 access point
2.
One mounting bracket
Warning:
For indoor use only. The access point and all
connected cables are not suitable for outdoor use.
1
Install the AP
a. Install it on the Wall
1. Fix two screws on the wall and 110 mm apart.
2. Slide the AP'S wall mounting slots down onto the screws so
that the unit is secure.
b. Install it on the Ceiling T-Bar
1. Rotate the bracket onto the T-bar of the ceiling.
2. Push the AP toward the bracket until it snaps into place.
c. Install it with Cable Ties (with or without bracket)
Package Contents
1
2
– 1 –
3
4
3.
One pack of screws
Documentation— Quick Start Guide (this document),
4 .
Certificate and Warranty card
Mode 1: The hole on the back of the access point is threaded into the
cable tie, and secured to the water pipe at the top.
Mode 2: First insert the mounting bracket into the AP then insert the
at the top position.
d. Install it on the Ceiling Bracket
1. Use the included screws to attach the mounting bracket to the wall.
2. Push the AP toward the bracket until it snaps into place.
2
Connect Cables
a. Connect LAN cables
1. Connect the external cable to the WAN/PoE port, When connected
the port connection provides power to the device.
2. (Optional) Connect a local LAN switch or computer cable to the
LAN port.
b. (Opitional) Connect AC power adapter (Input: DC 12V / 3A)
150200002232H R03
