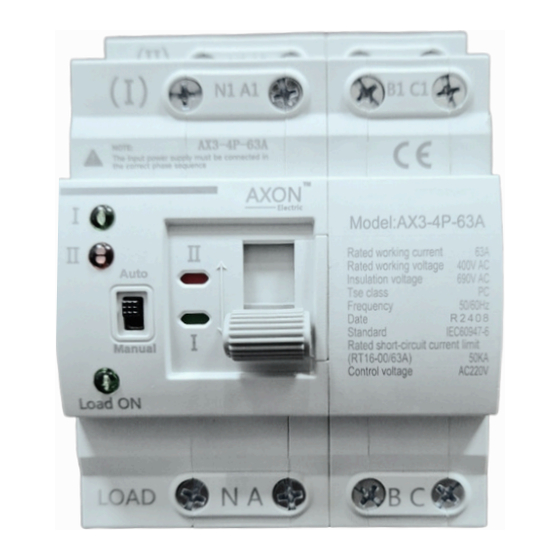

AUTOMATIC TRANSFER SWITCH
AX3-63A automatic transfer switch is a PC class change-over switch, with two-Source
input design (commonly used for 2-sources A and B), AC systems with AC 50-60hz
and rated current 6A-63A. The main function of the automatic transfer switch is when
the main power (common power supply A) fails, the ATS will automatically switch to
the backup power (Backup power supply B) does maintaining the supply load
(switching speed <50 milliseconds).
2 pole
4 pole
www.axonelcorp.com
AXON ELECTRIC CORPORATION
Advertisement
Related Manuals for Axon AX3-63A
Summary of Contents for Axon AX3-63A
- Page 1 AUTOMATIC TRANSFER SWITCH AX3-63A automatic transfer switch is a PC class change-over switch, with two-Source input design (commonly used for 2-sources A and B), AC systems with AC 50-60hz and rated current 6A-63A. The main function of the automatic transfer switch is when...
- Page 2 Main circuit category III; control and auxiliary circuit category II. power supply and the AC power supply. The load side and two poles, including the insulation resistance, when using live parts and metal plates, the insulation resistance should not be less than 10MQ. AXON ELECTRIC CORPORATION...
- Page 3 Size : Technical Specifications : Wiring Instructions : AXON AXON www.axonelcorp.com / sales@axonelcorp.com Cust Support: 8073684622 AXON ELECTRIC CORPORATION...
