WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing
•
Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any other appliance.
•
An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light appliance.
•
Extinguish any open flame.
•
Shut off gas to appliance.
Service must be performed by a qualified service agency.
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe place for future
reference. Do not allow anyone who has not read these instructions to assemble, light, adjust or operate the heater.
This is an unvented gas-fired portable heater. It uses air (oxygen) from the area in which it is used. Adequate
combustion and ventilation air must be provided.
United States Stove Company
227 Industrial Park Road, South Pittsburg, TN
PH: (800) 750-2723
www.usstove.com

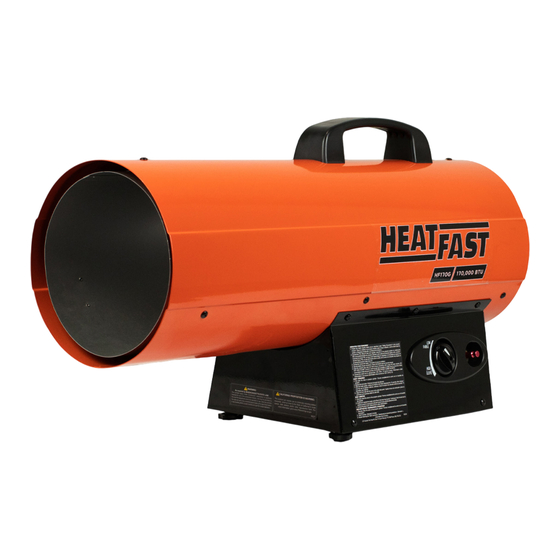

MODEL: HF60G / HF120G / HF170G
HF170G
property damage, personal injury or loss of life.
FORCED AIR
PROPANE
CONSTRUCTION
®
HF120G
HEATER
854019B-3005M
Advertisement
Table of Contents
Related Manuals for HEATFAST HF60G
Summary of Contents for HEATFAST HF60G
- Page 1 FORCED AIR PROPANE CONSTRUCTION ® HEATER MODEL: HF60G / HF120G / HF170G HF60G HF120G HF170G WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: General Safety Information
GENERAL SAFETY INFORMATION WARNING: YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS, SO PLEASE READ THESE INSTRUCTIONS BEFORE YOU OPERATE THIS HEATER. GENERAL HAZARD WARNING: FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK. -
Page 3: Specifications
SPECIFICATIONS Model HF60G HF120G HF170G 30,000 - 60,000 Btu/Hr 75,000 - 125,000Btu/Hr 120,000 - 170,000Btu/Hr Rating 8.79 - 17.58kW 21.97 - 36.6kW 35.16 - 49.8kW Fuel Consumption 0.33 - 0.66 gal/hr 0.82 - 1.37 gal/hr 1.31 - 1.86 gal/hr Electrical Input... - Page 4 Liquefied Petroleum Gases ANSI/NFPA 58 and CSA B149.1, Natural Gas and Propane Installation Code. VENTILATION (Minimum openings required) MINIMUM CLEARANCE (From normal combustible material) Opening near Opening near Heater floor ceiling Clearance HF60G 1 ft² 1 ft² From floor HF120G 2 ft² 2 ft² From outlet HF170G 3 ft²...
- Page 5 GENERAL INFORMATION ODOR FADE WARNING WARNING: ASPHYXIATION HAZARD • REFER TO THE SPECIFICATION SECTION OF THE • DO NOT USE THIS HEATER FOR HEATING HUMAN HEATER’S MANUAL, HEATER DATA PLATE, OR CONTACT LIVING QUARTERS. THE FACTORY TO DETERMINE COMBUSTION AIR •...
- Page 6 GENERAL INFORMATION • Use your neighbor’s phone and call your fuel gas supplier and your fire department. Do not re-enter the building or area. Stay out of the building and away from the area until declared safe by the firefighters and your fuel gas supplier. •...
- Page 7 9. When using an extension cord, make certain that it is a 3-wire (grounded) cord of proper wire size. START HF60G & HF120G 1. Connect the power cord to a properly grounded three (3) prong 120V, 60Hz, single phase receptacle.
- Page 8 OPERATING INSTRUCTIONS START HF170G 1. Connect the power cord to a properly grounded three (3) prong 120V, 60Hz, single phase receptacle. 1. Fully open the valve on propane cylinder 2. Depress the fuel button. 3. After the heater ignites, continue to hold the fuel button depressed for 15 seconds, then release. 4.
- Page 9 1. Select the lowest air temperature expected (at the bottom of the chart). 2. Move straight up to time of operation desired (left side of chart). 3. Read the cylinder size required. HF120G HF60G 3 cylinders 100# (45.4KG) 2 cylinders 100# (45.4KG)
-
Page 10: Wiring Diagrams
WIRING DIAGRAMS If any original wiring as supplied with the heater, must be replaced , It must be replaced with Type AWG 105° C wire or its equivalent, except as indicated (Type SF 2.200, **SGI-250° C) WARNING: Never leave the heater unattended while operating. Disconnect the heater from its power source when not in use. -
Page 11: Parts List
PARTS LIST Key Part No. Description Qty. 892973 Handle w/ Hardware 80785 Motor 80786 Fan Blade 80787 HF60G 80931 Igniter Electrode HF120G 80932 HF170G 80788 Electronic Control Module 892974 HF60G 892974 Variable Control Knob w/Collar HF120G 894046 HF170G 892975 Height Adjustment Knob... -
Page 12: Service Record
SERVICE RECORD It is recommended that this unit is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider: Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. -
Page 13: Limited Warranty
® LIMITED WARRANTY 854057 United States Stove Company warrants this product, to of purchase from an authorized retailer or distributor. the original retail purchaser only, to be free from defects This Limited Warranty does not cover any operational in material and workmanship for a period of one (1) year failures or difficulties due to normal use and wear and from the date of the initial purchase as evidenced on an tear, accident, abuse, misuse, alteration, misapplication,... - Page 14 NOTES WARNING: Never leave the heater unattended while operating. Disconnect the heater from its power source when not in use. -14-...
- Page 15 NOTES WARNING: Never leave the heater unattended while operating. Disconnect the heater from its power source when not in use. -15-...
