Summary of Contents for Konig Security SEC-DVR210

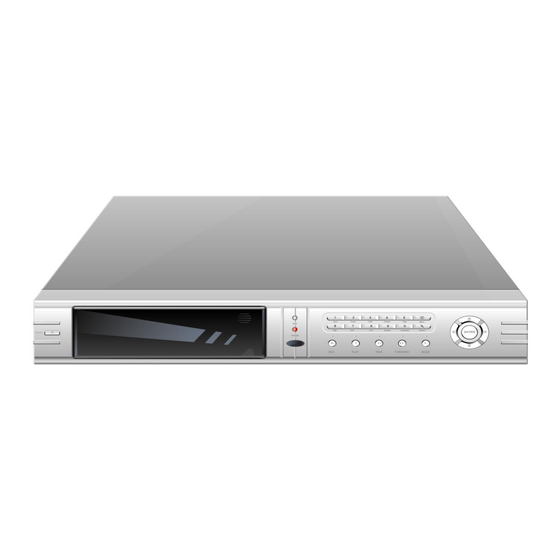

- Page 1 SEC-DVR210 4 CHANNEL HARDDISK RECORDER Quick Installation Guide ANLEITUNG MANUAL MODE D’EMPLOI GEBRUIKSAANWIJZING MANUALE MANUAL DE USO HASZNÁLATI ÚTMUTATÓ KÄYTTÖOHJE NÁVOD K POUŽITÍ BRUKSANVISNING...
-
Page 2: Front Panel Function Description
Quick Installation Guide Guide for quick installation of the harddisk recorder. For details on using the harddisk recorder, refer to advanced manual supplied on CD. Front Panel Function Description 1. ON/OFF: Switch for DVR’s power 2. REC: for video recording; and re-push to stop recording 3. - Page 3 6). MENU: press this button to enter the system setup menu, re-press to exit. All the function of the DVR can be found here. 7). USB: to backup the video on Flash Disk. When using this function, you have to format your USB Flash disk in “FAT”...
- Page 4 ③. TIME DATE SEARCH: search play by input time. Push “MENU” button to exit this mode. 8. Channel choosing control area: 1). First channel / Up: push this button to see full screen display form channel 1. While selecting menu items, push this button to move up the cursor. 2).
- Page 5 Remote control: PIP: picture in picture. 0~4: select the channel to full screen. 2x2: 2x2 Screen Mode AUTO: Auto Sequence Mode TRIP: triplex mode. DISPLAY: DVR Information USB: Still Picture Backup ZOOM: 2X zoom up FREEZE: Freeze all the pictures. PTZ (IRIS, FOCUS, ZOOM, SPEED, SET): control key of high-speed domes.
- Page 6 All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such. Attention: This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
- Page 7 Copyright ©...
