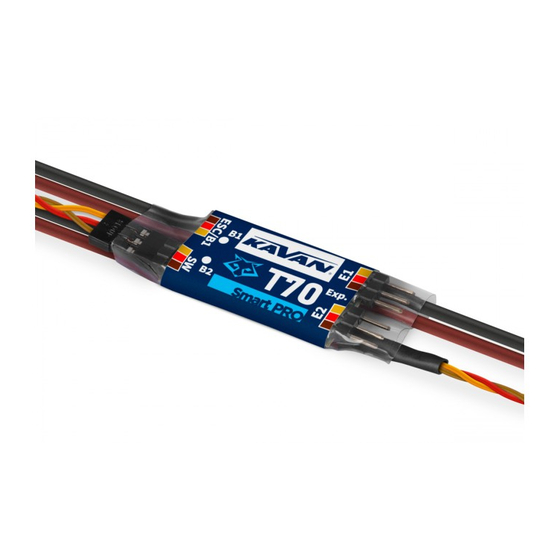

KAVAN Smart PRO T70 Dual battery switch with telemetry
expander - Instruction manual
INTRODUCTION
Congratulations on purchasing the KAVAN Smart PRO T70-C / T70-JR, a high-performance digital dual battery backer with advanced telemetry features. It
contains a charging circuit and touch switch functionality. The battery switch is ideal for mid-size models that use high-voltage servos without voltage
stabilization.
It is suitable for models equipped with dual receiver batteries or an ESC battery eliminator circuit (BEC) used as a primary power source, combined with a
small backup battery. The battery switch prefers its primary battery input, and in case of a voltage drop it automatically switches to the secondary input. The
charging circuit may be optionally enabled to charge the secondary battery from the primary input/BEC.
The device is designed to turn on/off the electronics in your model, it can replace a mechanical switch as well. The battery switch remembers its last
operating state, and if the battery is accidentally disconnected, it will automatically boot up as soon as the battery is connected again.
FEATURES
Intelligent dual battery backer/multiplexer with configurable voltage switchover threshold.
Touch switch function. Optionally, the possibility of connecting a magnetic, mechanical or electronic switch or button.
FPort, Duplex EX, S.Bus2, MSB, Hott, P²Bus telemetry support (current, voltage, capacity of both battery inputs).
Optional charging of the secondary battery.
Remembers the last operating state.
Two expansion ports allowing connecting additional Duplex EX/EX Bus sensors. Alternatively, the ports offer digital inputs/outputs
functionality.
Configuration through the transmitter or MAV Manager PC software.
Firmware updates.
TECHNICAL SPECIFICATIONS
Dimensions
Weight (incl. cables)
Cables
Connectors
Continuous current
Peak current (2 s)
Standby current
Operating current
Charging current for Batt.2
Operating temperature
Supply Voltage
Recommended Supply Voltage
Telemetry
Telemetry expander
Touch switch support
BEC
Selectable Touch/Mechanical/RC switch
Status LED
INSTALLATION
Plug the battery switch between the receiver and a primary battery/BEC. Connect the secondary battery to the B2 input.
T70
40×21×6 mm
23 g
1 mm² (17AWG)
\
FrSky FPort, JETI Duplex EX, Multiplex MSB, Graupner Hott, Futaba S.Bus2, PowerBox P²Bus
2 Extension ports: Duplex EX/EX Bus
T70-JR
40×21×6 mm
21 g
0.5 mm² (20AWG)
Standard JR
15 A
30 A
100 μA
40 mA
up to 200 mA
(-20)–85 °C
4–12.6 V
5–8.4 V
Yes
No
Yes
Yes
Advertisement
Table of Contents
Related Manuals for Kavan Smart PRO T70
Summary of Contents for Kavan Smart PRO T70
- Page 1 INTRODUCTION Congratulations on purchasing the KAVAN Smart PRO T70-C / T70-JR, a high-performance digital dual battery backer with advanced telemetry features. It contains a charging circuit and touch switch functionality. The battery switch is ideal for mid-size models that use high-voltage servos without voltage stabilization.
-
Page 2: Battery Backup Function
Dual battery installation (without BEC): T70-JR Dual battery installation (without BEC): T70 Installation with ESC BEC and a backup battery - T70-JR Dual ESC with Duplex telemetry - T70-JR OPTIONAL MECHANICAL/ELECTRONIC SWITCH CONNECTION T70-JR T70 Note: If using in combination with R3/RSW Wireless Switch you have to change the device setting from “Touch”... -
Page 3: Extension Ports
EXTENSION PORTS The battery switch offers two additional configurable JR-type extension ports. These ports allow you to extend the device functionality in combination with some RC systems. Expander EX – useful if you need to connect additional Duplex EX/EX Bus sensors to the battery switch. Digital Input –... - Page 4 The battery switch is compatible with JETIBOX/SMART-BOX and you can use it for programming. The JETIBOX menu is divided into three sections: Actual values – displays the latest telemetry values (current, voltage, capacity, temperature) including minimums and maximums. The main screen shows the device temperature with the voltage and current of the active battery. If the charging is enabled and active, the “CHG”...
- Page 5 GRAUPNER HOTT MENU STRUCTURE The battery switch offers telemetry as an “Electric Air Module”. FUTABA AND MULTIPLEX CONNECTION Futaba and Multiplex systems do not offer wireless device configuration. The telemetry transmission is possible with the following fixed sensor slots:...
-
Page 6: Firmware Update
Futaba S.Bus2 Multiplex MSB Current 1 Voltage 1 Capacity 1 Current 2 Voltage 2 Capacity 2 Note Manual detection in the menu Linkage – Sensor. Choose S1678 current sensor on slots 2 and 5. Automatically detected by the transmitter. FIRMWARE UPDATE Firmware updates for the battery switch are transferred from a PC via the USB interface. -
Page 7: Safety Information
Always use a sufficient power source according to the consumption of the attached servos. Never exceed the maximum allowed operating voltage of the attached servos. MANUFACTURER KAVAN Smart PRO Dual battery switch with telemetry expander is made in Czechia by MAV Sense s.r.o. E-mail: info@mavsense.com | Web: www.mavsense.com (https://www.mavsense.com/) RECYCLING AND WASTE DISPOSAL NOTE (EUROPEAN UNION) - Page 8 GUARANTEE The KAVAN Europe s.r.o. products are covered by a guarantee that fulfils the currently valid legal requirements in your country. If you wish to make a claim under guarantee, please contact the retailer from whom you first purchased the equipment. The guarantee does not cover faults which were caused in the following ways: crashes, improper use, incorrect connection, reversed polarity, maintenance work carried out late, incorrectly or not at all, or by unauthorised personnel, use of other than genuine KAVAN Europe s.r.o.
