Intelight PRIMUS TEC 6-36 Operating Instructions

Dear Customer,
Thank you for the confidence you have bestowed on our company by choosing to purchase one of our devices. Prior to its use, for the sake of your
own safety, please review carefully information about the product provided below.
PRIMUS EMERGENCY POWER SUPPLY KIT
It features a DC powered emergency module and a battery pack with mounting brackets. It works with fluorescent lamps, powered by magnetic and
electronic ballasts. For lighting fittings fitted with electronic ballast it is recommended to use PRIMUS TEC model.
OPERATION PRINCIPLE
The emergency module detects a failure of 230V/50Hz power and using the power stored in the battery it begins to generate high frequency
voltage, necessary for power supply of fluorescent lamps. The duration of emergency operation depends on fluorescent lamp power rating and the
capacity of battery used. The converter reaches its full efficiency after 24 hours from connection to or restore of normal voltage. In the event of a
failure of 230V/50Hz power before those 24h, the duration of emergency operation of the device will depend on the level of battery charge. It is so
as under normal conditions, i.e. when supplied with 230V/50Hz power, the converter charges the attached pack of high temperature batteries in a
continuous mode. Battery charging as well as presence of 230V/50Hz AC power in signalled by a green LED. In addition, PRIMUS modules can be
equipped with test system and lock system. The test system enables, at any time, a manual test of correct operation of the lighting fitting in
emergency mode. The lock system is responsible for disabling the emergency mode of the lighting fitting during repair and maintenance.
CONNECTION DIAGRAMS
The following diagrams are presented for illustration purposes only. They fail to include all possible connections of the emergency module with to
electronic ballasts available on the market and are limited to the most common solutions. If in doubt, please contact a qualified electrician or the
distributor from whom you purchased the unit, or directly with our technical department.

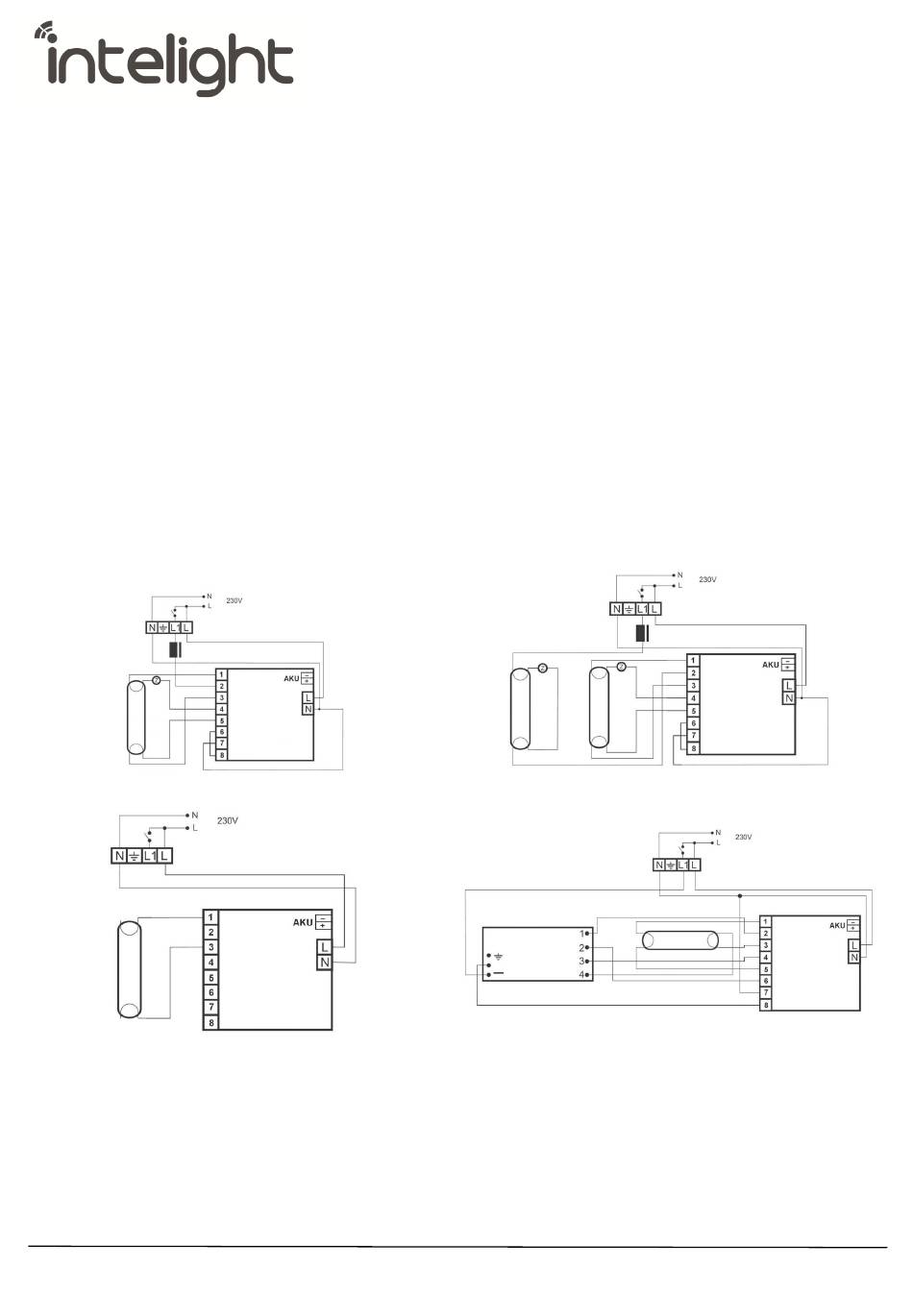

ALL-PURPOSE CONNECTION DIAGRAMS
Connection to inductive ballast
Emergency mode connection without ballast
INTELIGHT Sp. z o.o. 19, Gwiaździsta str., 01-651 Warsaw, Poland
Manufactured in Poland.
PRIMUS TEC 6-36
PRIMUS TEC 6-58
Connection to inductive ballast for fluorescent lamps
arranged in serial layout
Connection to electronic ballast
OPERATING INSTRUCTIONS
www.intelight.pl
