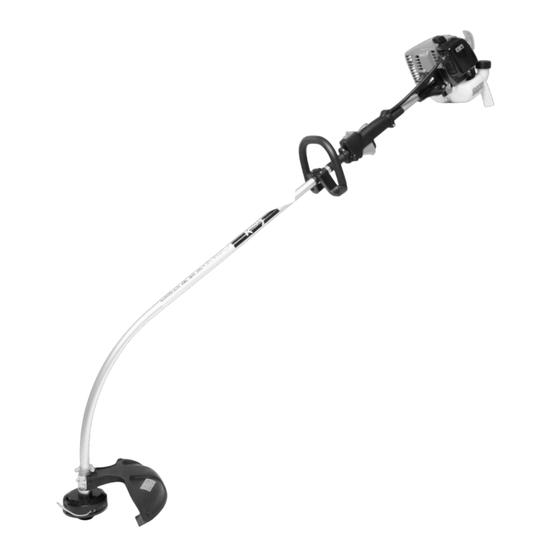

RADLEY 5073-096 Owner's Manual
  1. Manuals
  2. Brands
  3. RADLEY Manuals
  4. Trimmer
  5. 5073-096
  6. Owner's manual

RADLEY 5073-096 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5073-096
5073-096

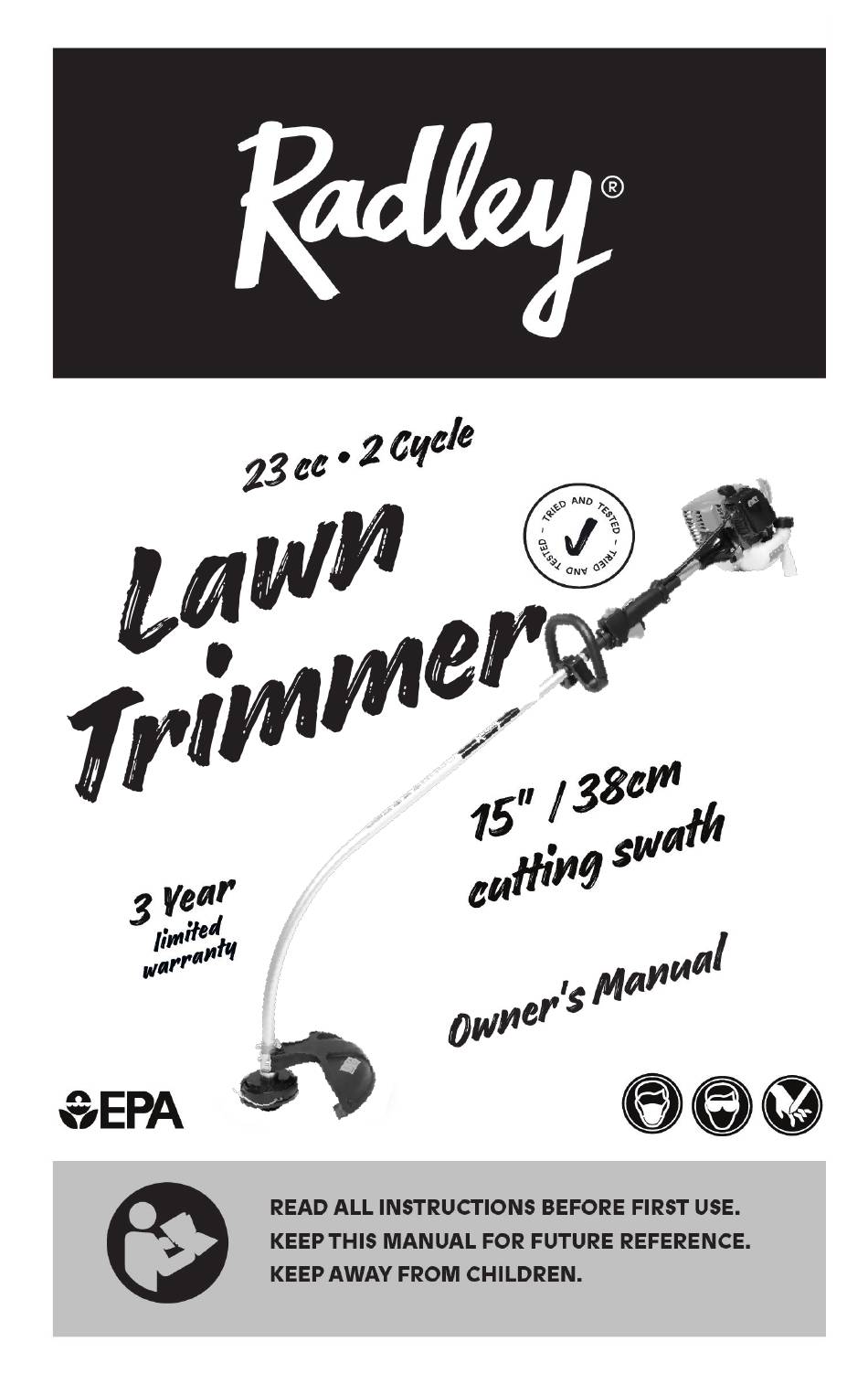

2 CYCLE LAWN TRIMMER OWNER'S MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5073-096 and is the answer not in the manual?

Questions and answers

Related Manuals for RADLEY 5073-096

Summary of Contents for RADLEY 5073-096

  • Page 1 5073-096 5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS LAWN TRIMMER Engine displacement 23 cc Engine type 2-stroke Line size 0.08" / 2 mm Cutting swath 15" / 380mm Fuel tank capacity 13.5 oz / 400 ml Fuel to oil mix ratio 50:1 NOTE Do not use E15 or E85 fuel (fuel containing ethanol greater than 10%) in this product.

  • Page 3: Table Of Contents

    5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL TABLE OF CONTENTS Product specifications ..................2 Table of contents ....................3 Safety Instructions ....................4-6 Symbols ........................7 Operation ......................8 Quick start symbols ....................9 Know your 2-cycle lawn trimmer ..............10 Included pieces .....................11 Assembly .......................11...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS ∫ Do not allow children or untrained individuals to use this unit. ∫ Never start or run the engine inside a closed area; breathing exhaust fumes can kill. ∫ Always wear eye protection with side shields marked to comply with ANSI Z87.1 along with hearing protection.

  • Page 5: Fuel Safety

    5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL ∫ The cutting attachment should never rotate at idle during normal use. The cutting attachment may rotate at idle during carburetor adjustments. ∫ Use only as directed in this operator’s manual. ∫ Never use blades, flailing devices, wire, or rope on trimmer attachment.
  • Page 6 ∫ Wipe spilled fuel from the unit. Move 30' /9 m away from refueling site before starting engine. ∫ Never attempt to burn off spilled fuel under any circumstances. ∫ To reduce the risk of fire and burn injury, handle fuel with care. It is highly flammable.

  • Page 7: Symbols

    5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL SAFETY INSTRUCTIONS IMPORTANT Please read these instructions fully before assembling and operating. SYMBOLS The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

  • Page 8: Operation

    EYE AND EAR THROWN OBJECTS PROTECTION Always Beware of flying objects wear safety goggles that could hit you. or safety glasses with side shields, and as necessary a full face shield as well as full ear protection when operating this product.

  • Page 9: Quick Start Symbols

    5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL QUICK START LABEL SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 10: Know Your 2-Cycle Lawn Trimmer

    KNOW YOUR 2 CYCLE LAWN TRIMMER...

  • Page 11: Included Pieces

    5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL INCLUDED PIECES Carefully remove the lawn trimmer from its packaging and check that the following parts are included: Lawn ASSEMBLY Your trimmer requires some assembly. If you have any questions regarding the assembly of your trimmer, call our Technical Support Team at 1-833-818-4111.
  • Page 12 NOTE! Make sure the grass shield is assembled in line with the sleeve edge at the end of the tube. NOTE! Please remove the cutoff knife cover before use. CAUTION : Pay attention to the cutoff knife to prevent injury to people! 3.

  • Page 13: Operation

    5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL OPERATION HANDLING FUELING AND REFUELING FUEL MIXTURE CAUTION! The machine is equipped with a two-stroke engine and must always be run using a mixture of gasoline and two-stroke engine oil. It is important to accurately measure the amount of oil to be mixed to ensure that the correct mixture is obtained.
  • Page 14 Mix (shake) the fuel mixture thoroughly before filling the machine’s fuel tank. Do not mix more than one month’s supply of fuel at a time. If the machine is not used for some time, the fuel tank should be emptied and cleaned.

  • Page 15: Starting The Engine

    5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL NOTICE: Do not use E15 or E85 fuel (fuel containing ethanol greater than 10%) in this product. It will damage damage your engine and void your warranty. NOTICE: Gasoline containing up to 10% ethanol by volume (commonly referred to as E10) is acceptable.

  • Page 16: Stopping The Engine

    7. If the choke lever was moved to the CLOSED position to start the engine, gradually move it to the OPEN position as the engine warms up. Allow the engine to warm up for at least 30-60 seconds after a cold start. When the engine is warm enough to idle well, pull and release the throttle trigger to disengage the throttle set button.

  • Page 17: General Tips

    5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL TO EXTEND LINE This unit features a bump feed trimmer head. If the cutting swath has decreased due to wear or breaking, firmly bump the trimmer head on the ground to extend the line.

  • Page 18: Replacing Trimmer Line

    Use the edge of line to do the cutting; do not force the string head into uncut grass. Fencing, posts, rocks and other items can cause extra wear and possibly breakage of the trimmer line. Take extra care when cutting around these items as they can be damaged by the string.
  • Page 19 5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL 3. Remove the string holder by pressing both tabs as shown at right. 4. Make sure the replacement line is 0.08" / 2 mm line. Fold the replacement string line in half and connect to the spool. Rotate the string around the spool in the direction indicated by the arrows on the spool.

  • Page 20: Maintenance

    MAINTENANCE GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use a clean cloth to remove dirt, dust, lubricant, grease, etc. WARNING! Before inspecting, cleaning, or servicing the machine, shut off...

  • Page 21: Spark Plug

    5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL FUEL CAP WARNING! Check for fuel leaks. A leaking fuel cap is a fire hazard and must be replaced immediately. If you find any leaks, correct the problem before using the product. Failure to do so could result in a fire that could cause serious personal injury.

  • Page 22: Storing The Trimmer

    STORING THE TRIMMER Clean all foreign material from the product. Store idle unit indoors in a dry, well-ventilated area that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and deicing salts. Abide by all ISO and local regulations for the safe storage and handling of gasoline.

  • Page 23: Troubleshooting

    5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Engine does not start. Fuel mixture is too rich. Open choke. Fuel strainer clogged. Clean fuel strainer. Fuel line clogged. Clean fuel line. Flooded engine. Let unit sit for 15 minutes or remove spark plug and clean per manual.

  • Page 24: Exploded View /Parts List

    EXPLODED VIEW...
  • Page 25 5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL ENGINE...

  • Page 26: Parts List

    PARTS LIST Number Part sku Part Name Quantity APCA031001 Soft shaft assembly APCA031002 Soft shaft support APCA031003 Aluminum tube matte APCA031004 Drive shaft joint (left handed) APCA031005 Rolling bearings 608 APCA031006 Interval set CG260E APCA031007 Hexagon socket screw assembly M5 x 12 APCA031008 M5 x20 white zinc plated bolts APCA031009...
  • Page 27 5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL APCA031034 Left control box (black) APCA031035 Threaded pipe (8 x 210 mm) APCA031036 M6 white nut APCA031037 Hand pad sets APCA031038 Aluminum tube pad sets APCA031039 Connection disk combination APCA031040 Passive disc welding Tapping screws ST4.8x16-C-H plated with white...
  • Page 28 APCA031068 Fuel tank APCA031069 Tank cap combination black APCA031070 Cylinder block APCA031071 Silencer pad APCA031072 Silencer complement APCA031073 Muffler shield APCA031074 Hexagon socket screws M5X60 grade 12.9 APCA031075 Rubber plug APCA031076 Combination of the stator APCA031077 Stop line APCA031078 Screw M4X16 APCA031079 Since the tapping ST4.2X12 APCA031080...
  • Page 29 5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL APCA031103 Tubing stopper APCA031104 Fuel oil filter APCA031105 Top air deflector of cylinder block APCA031106 The spark plug APCA031107 Screw M5X25 APCA031108 Screw M5X16 APCA031109 Washer 5 APCA031110 Washer 5 APCA031111 Heat insulation pad (black)

  • Page 30: Warranty

    WARRANTY RADLEY 2 CYCLE LAWN TRIMMER WARRANTY If this Radley tool fails due to a defect in material or workmanship within three years from the date of purchase, it has a three-year repair warranty with the original bill of sale. This warranty does not include expendable parts including but not limited to blades, brushes, belts, light bulbs and/or batteries.
  • Page 31 5073-096 2 CYCLE LAWN TRIMMER OWNER’S MANUAL EXCLUSIVE TO HOME HARDWARE For information on the entire lineup of Radley power tools visit homehardware.ca or your local Home Hardware retail store. RADLEY TOOLS ST. JACOBS, ONTARIO N0B 2N0 © 2022 Home Hardware Stores Limited...
