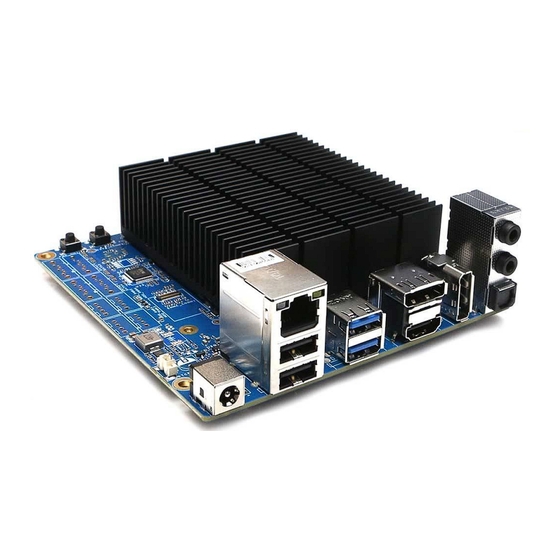

ODROID H4, H4+, and H4 Ultra
Modern 4-Core 4-Thread or 8-Core 8-Thread x86 64-bit single board computer with large memory
capacity and advanced IO ports.
Intel® Core™ i3 Processor or Intel® Processor N97 has a base clock of 2GHz and a boost clock
•
of up to 3.8GHz with 6MB Smart Cache by Intel7 Lithography.
Up to 48GB Single-channel Memory (DDR5 PC5-384000 4800MHz)
•
One DDR5 1.1V SO-DIMM slot, up to 48GB
•
PCIe 3.0 x 4 lanes for one M.2 NVMe storage
•
2 x 2.5Gbit Ethernet ports
•
4 x SATA 3.0 ports
•
SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
•
Intel UHD Graphics 24
•
HDMI 2.0 and DP 1.2 multiple video outputs
•
EUs(H4 Ultra:32 EUs)
Turbo
1.2GHz(H4 Ultra:1.25GHz)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ODROID H4
Summary of Contents for ODROID H4
- Page 1 ODROID H4, H4+, and H4 Ultra Modern 4-Core 4-Thread or 8-Core 8-Thread x86 64-bit single board computer with large memory capacity and advanced IO ports. Intel® Core™ i3 Processor or Intel® Processor N97 has a base clock of 2GHz and a boost clock •...
- Page 3 H4 Ultra Processor CPU Intel® Processor Intel® Processor Intel® Core™ i3 Celeron N5105 Pentium Silver Processor N305 N6005 Code name Alder Lake-N Alder Lake-N Alder Lake-N Jasper Lake Jasper Lake Lithography 10 nm (Intel 7) 10 nm (Intel 7) 10 nm (Intel 7)
- Page 4 H4 Ultra DP 1.4 4K/60Hz HDMI 2.0 4K/60Hz IGP (INTEL Graphics) Base Frequency (MHz) Burst 1200 1200 1250 Frequency (MHz) Execution Units PCIe (via NVMe adapter) Generation Gen 3 Gen 3 Gen 3 Gen 3 Gen 3 Lanes Max Transfer Rate (GT/s) 3.94...
- Page 5 H4 Ultra 2.5GbE 1 port 2 ports 2 ports 2 ports 2 ports SATA III None 4 ports 4 ports 2 ports 2 ports NVMe PCIe Gen 3 x4 PCIe Gen 3 x4 PCIe Gen 3 x4 PCIe Gen 3 x4...
-
Page 6: Installation
• support via on-board Intel I226-V NIC chipset. Finally, connect the DC power adapter to the DC jack at the rear side of the ODROID-H4. For • high performance computing and/or multiple storage devices, at least a DC 15V/4A power adapter is strongly recommend. - Page 7 To install from CD/DVD media, you have to connect a USB CD/DVD drive to a USB host port • on ODROID-H4. Installation media will need to be created using another computer and the appropriate software. Burning an operating system to USB stick This section assumes that you will install an operating system from a USB stick and are going •...
- Page 8 The ODROID-H4 series can have multiple storage devices that an operating system can be • installed on. These storage devices can be connected to the ODROID-H4 at the same time and an operating system can be installed and select to use during booting.
- Page 9 Selecting an installation media on boot The BIOS on the ODROID-H4 always tries to load bootable images from the storage as • configured in the BIOS. For example, you can set SATA port 2 to load the operating system rather than SATA port 1 by setting this order in the BIOS.
-
Page 10: Applications Notes
Specifications specifications • Board Layout & Dimensions board_layout • board_dimensions • ODROID-H4 Schematic and Full Intel@ N305 Datasheets ODROID-H4 Schematics (PDF format) • Intel@ N305 datasheet • ODROID-H4 BIOS ODROID-H4 BIOS Release • How to update ODROID-H4's BIOS • eMMC Connection Check in BIOS •... - Page 11 Auto Start Of System When Power Applied • The external power switch • How to Control FAN Speed via CPU Temperature • How to Install ODROID-VU(5/7/7+) Touch Screen Driver • DKMS Device Driver for WiFi Modules • I2C 20x4 LCD •...
