Summary of Contents for Taga Harmony TCD-70T

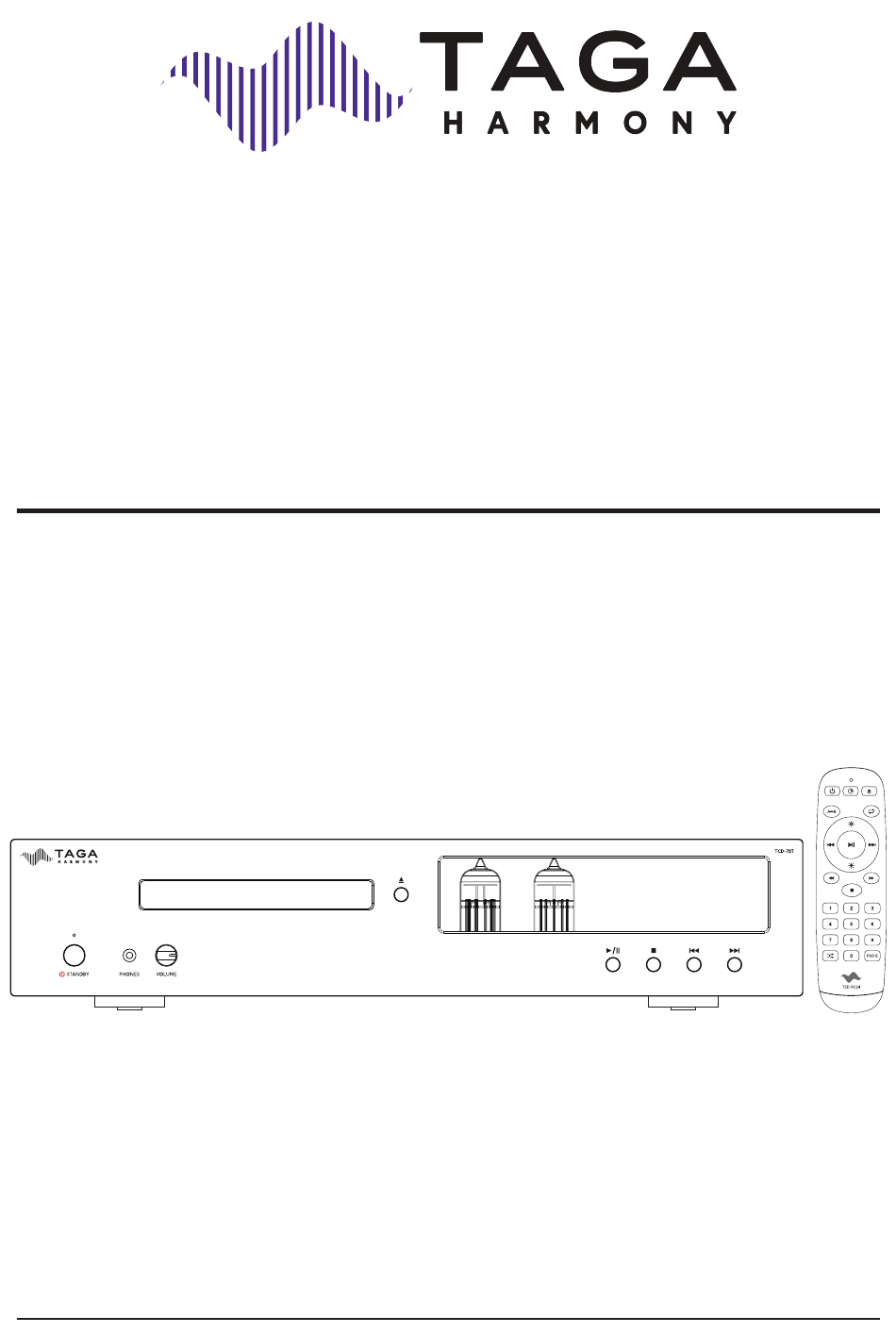

- Page 1 TCD-70T VACUUM TUBE CD PLAYER Instruction Manual Edition 09-2024...
- Page 3 Versatile Connectivity: wide range of analog and digital outputs, the TCD-70T seamlessly integrates into any audio system, providing flexibility and convenience. 2 analog outputs: including balanced XLR, which helps in canceling out electromagnetic interference and noise, resulting in cleaner audio signals.
-
Page 4: Table Of Contents
An IEC C14 power inlet and a removable Schuko-IEC C13 power cord give an option to upgrade to a premium audiophile power cable at any time. The TCD-70T combines the best of both classic and modern technologies to deliver an unmatched listening experience. -
Page 5: Safety Instructions
Safety Instructions IMPORTANT READ THIS SECTION CAREFULLY BEFORE PROCEEDING! WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The triangle containing a lightning symbol is intended to alert the user to the presence of uninsulated dangerous voltages within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 6 Safety Instructions 1. Read Instructions - All the safety and operating instructions 13. Overloading - Do not overload wall outlets, extension cords or should be read before the product is operated. integral convenience receptacles as this can result in a risk of fire 2.
- Page 7 Batteries- Safety Instructions IMPORTANT READ THIS SECTION CAREFULLY BEFORE PROCEEDING! Make sure to insert the battery aligning the correct polarity - the positive and negative ends should be facing in the correct direction as marked on equipment. Incorrect fitting may cause leakage or, in extreme cases, fire or even an explosion.
- Page 8 Batteries- Safety Instructions Remember that small button cell batteries such as used in some hearing aids, toys, games and other appliances, may be easily swallowed by young children and this is dangerous. Keep loose button cells away from young children. Make sure appliance battery compartments are securely closed.
-
Page 9: Remote Controller
Remote Controller • Always use AAA bateries and do not use the rechargeable batteries. • If the batteries run out, remove the old batteries and replace them with new ones within several minutes. • If the batteries are placed incorrectly, thay can cause explosion. •... - Page 10 Remote Controller 1. Signal LED Indicator The Indicator flashes after each button is pressed indicating that the remote controller is transmitting the signal. 2. Standby Button ( ) 3. Repeat A-B Function Button ( 4. Brightness Higher ( ) 5. Previous Button ( ) 6.
-
Page 11: Front And Rear Panel
Front and Rear Panel Front Panel: Standby LED Indicator Standby Button Headphone 3.5 mm (1/8”) Output Headphone Output Volume Regulator Knob Disc Tray Open/Close Button Vacuum Tube Window Play/Pause Button Stop Button 10. Previous Button 11. Next Button 12. Display 16 17 Rear Panel: 13. -
Page 12: Hooking Up The Cd Player
Hooking Up the CD Player Digital-to-Analog Stereo Receiver etc. Converter etc. Digital Digital coaxial optical cable cable XLR female RCA-RCA – XLR male interconnect interconnect Amplifier, receiver, powered speakers etc. Preamplifier, Amplifier, receiver, powered speakers etc. - Page 13 3. If you want to listen to music via headphones: connect the headphones to the Phones output. Check „Headphones connection (PHONES)” for more details. 4. External audio equipment connection options: Signal TCD-70T Audio equipment Connection Cable Output Input R-Analog-L...
-
Page 14: Operation
Operation Plug the Power Cable to the CD Player and into the electrical outlet. Switching ON / OFF When you connect the CD Player to the electrical outlet for the first time, it will be in the Standby mode. The Standby LED Indicator will be illuminated. •... - Page 15 Operation CD Discs Playing 1. Press the button to open the disc tray and place the CD disc on it (with the printed side up). Note! If the disc tray is not closed manually within approximately 60 seconds, it will close automatically.
- Page 16 Operation Repeat Play Switching between ALL-track repeat and ONE-track repeat. The function may be only activated during the playback or pause by using the but- ton. • First press: to repeat the current track. [REP ONE] will be displayed. • Second press: to repeat all tracks. [REP ALL] will be displayed.
- Page 17 Operation Direct Track Selection The 0-9 buttons allow to select a specific track on the CD disc. For instance: to select track number 12, press 1 and then 2 buttons etc. • During playback: press the 0-9 buttons to start playing from the selected track. •...
-
Page 18: Additional Information
Additional Information Break-In Your TAGA Harmony CD Player sounds great immediately after it is taken out of the carton but as all devices utilizing tubes, this CD Player requires a “break-in” period to reach its full sonic capabilities. During the “break-in” period it is recommended to operate the CD Player at moderate volume levels. - Page 19 Additional Information Handling of CD discs Playback side • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth.
-
Page 20: Kit Content
Kit Content We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. Kit Content: CD Player Power Cable Instruction Manual Specifications... - Page 21 EU declaration of conformity Your product is marked with the symbol shown on the left. As its manufacturer, hereby we declare that the product is in compliance with the Your product is marked with the symbol as showed on the left. following EU directives and regulations: For EU (European Union) member users: 2014/30/EU (EMC) &...
- Page 22 Notes...
- Page 23 Notes...
- Page 24 Notes...
