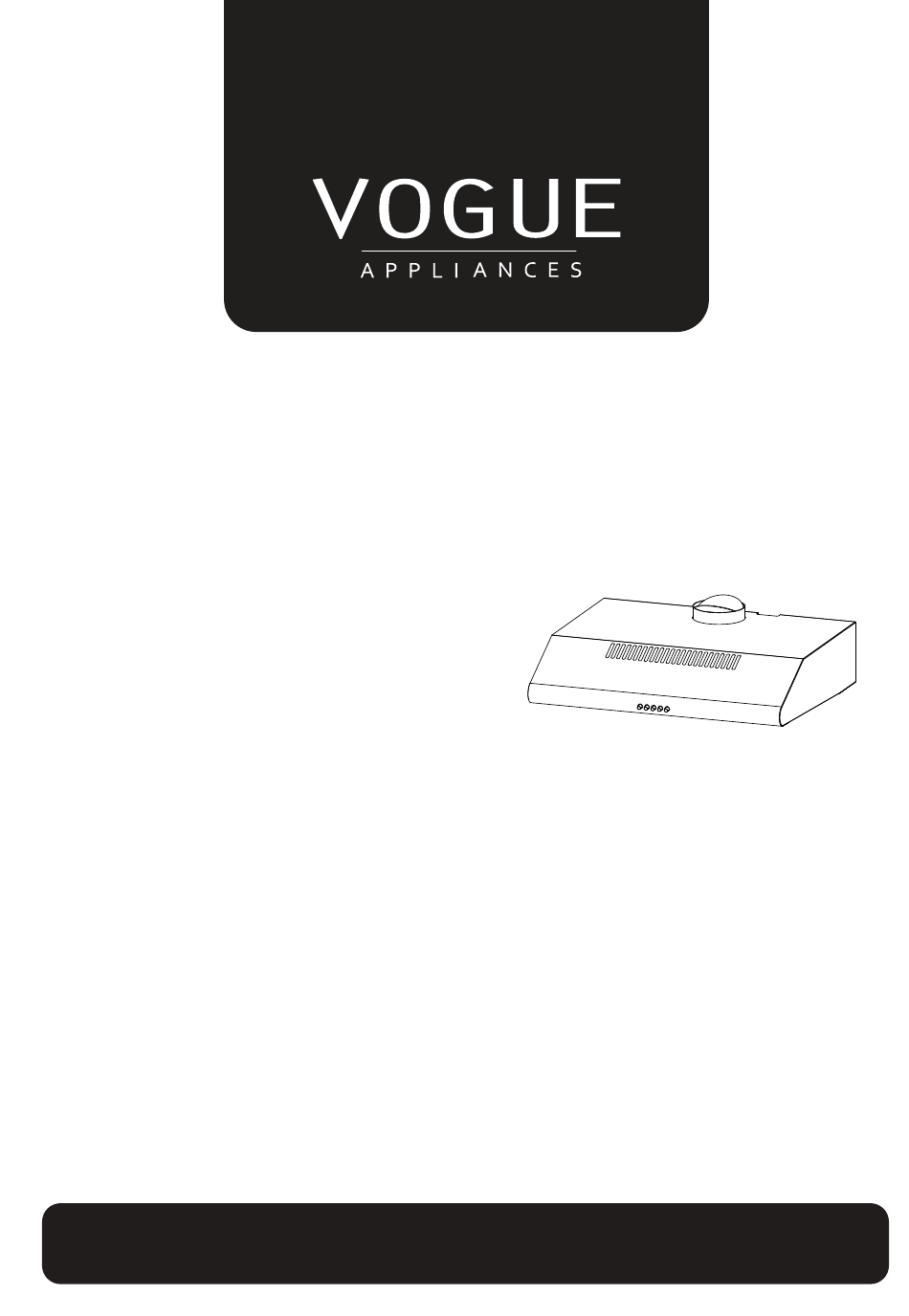

- Page 1 INSTALLATION INSTRUCTIONS USER GUIDE Rangehood VOGUE 330171/330172 To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the f irst time...
-
Page 2: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. -
Page 3: Main Parameters
MAIN PARAMETERS Rated Voltage and Frequency 220-240V~ 50Hz Motor Input Power:125W In certain circumstances electrical appliance may be a danger hazard. COMPONENTS Ref. Qty. Product Components Air Duct Assembly (optional) Venting Knob Main Body Filter Assembly (optional 2 ) Qty . Ref. - Page 4 DIMENSIONS unit：mm Ф120 Min. Min. 650mm 650mm Ø120...
-
Page 5: Installation
INSTALLATION WALL DRILLING AND BRACKET FIXING Please read the instructions carefully. Unpack the canopy and check that all functions are working. Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate match the voltage and frequency at the installation site. - Page 6 Information Sufficient air is needed for proper combustion and exhaustion of gases through the fiue (chimney) of fuel burning equipment to prevent back drafting. Ductless fans must always be vented to the outdoors. When assessing the air pressure, the entire ventilation system in the house/apartment ...
-
Page 7: Wall Mounting Installation
CUPBOARD MOUNTING INSTALLATION Drill a 130mm diameter and four 3.5mm diameter hole as below picture. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. ATTENTION: If your cooker hood works at circulating-air mode, it is not necessary to drill ... -
Page 8: Operation
OPERATION OFF MOTOR SWITCH: Press on this switch to stop the motor operation. SPEED SWITCH: Press on this switch, the motor runs at LOW speed. SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed. SPEED SWITCH: Press on this switch, the motor runs at HIGH speed. -
Page 9: Cleaning And Maintenance
LIGHTING LIGHT REPLACEMENT Switch off the extractor hood and isolate the extractor hood by pulling out the mains plug or switching off the fuse. Remove the grease filter. Remove the light by levering its fitting from the hood body (this may require ... -
Page 10: Check Valve Installation
Information There is a fire risk if cleaning is not carried out in accordance with the instructions. CHECK VALVE INSTALLATION Hold on check valve with your hands, align the box gap, put in the check valve , and then spin to a certain angle until three anglesof the valve are stuck. -
Page 11: Disposal Of Old Electrical Appliances
DISPOSAL OF OLD ELECTRICAL APPLIANCES The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. - Page 12 P/N:16173000A18707...
