Summary of Contents for Antylia Scientific Environmental Express Bio-Pump IAQ Lite

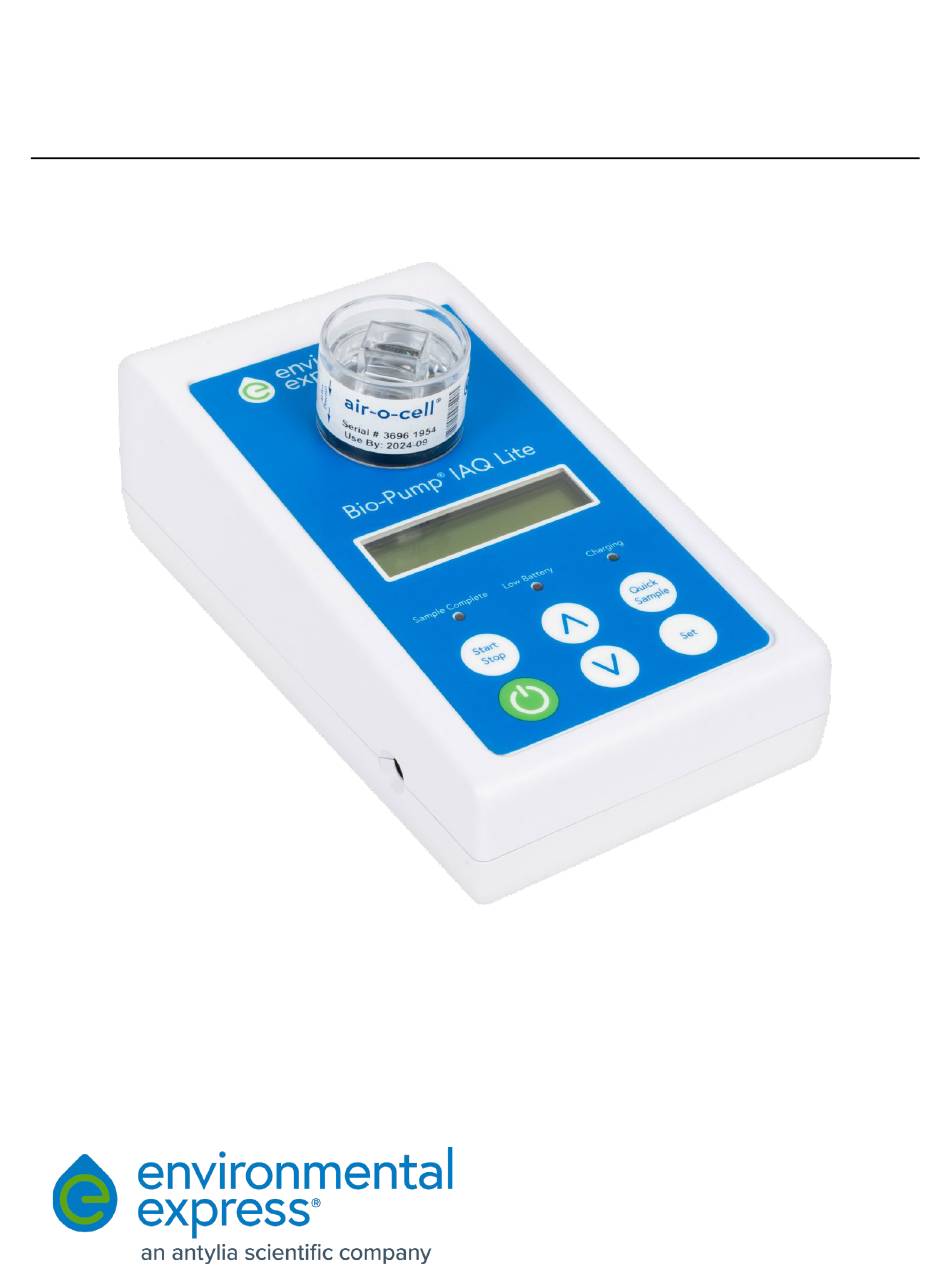

- Page 1 Bio-Pump® IAQ Lite Operating & Instruction Manual T: +1.800.343.5319, 1.843.881.6560 W: environmentalexpress.com LA03070 Rev 2...
-
Page 2: Table Of Contents
Contents Section 1 - Warranty Information ......................3 Section 2 - Declaration of Conformity ....................4 Section 3 - Specifications ........................5 Section 4 - What Is Included ........................5 Section 5 - Physical Description ......................6 Section 6 - Cautions and Warnings ...................... -
Page 3: Warranty Information
Section 1 - LIMITED WARRANTY The Environmental Express Bio-Pump IAQ Lite is warranted against defects in materials and workmanship when used in accordance with applicable instructions, for a period of one (1) year from the date of shipment. This warranty extends to parts, labor, and any approved transportation costs. This warranty applies only to damage or failure caused by normal use. -
Page 4: Declaration Of Conformity
Out of Warranty Repair If the Bio-Pump IAQ Lite fails after the warranty period has lapsed, the repair procedure is as follows: First, notify an Environmental Express Technical Service Representative of the product’s failure and place an order for repair. Whenever possible, our customer service technician will walk you through possible troubleshooting scenarios which may enable you to repair your unit on-site. -
Page 5: Specifications
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Specifications Section 3 - Intended Use • The Bio-Pump IAQ Lite is an advanced portable, battery-powered air sampling pump designed for exclusive use with Air-O-Cell®... -
Page 6: Physical Description
Physical Description Section 5 - Top View of Pump Bottom View of Pump 1. Cassette retainer 1. Housing screws, qty: 4 2. LCD (remove only to change battery) 3. SAMPLE COMPLETE light 2. Motor assembly mounting screws, qty: 4 4. START/STOP button (DO NOT REMOVE) 5. -
Page 7: Cautions And Warnings
Cautions and Warnings Section 6 - 1. When The pump may be opened only to change the battery. Do not touch board components when changing battery and handle the board by the edges only. 2. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. -
Page 8: Sampling Modes
7. Press the SET key to save the calibration Note: When you enter the Calibration mode, the pump will reset its flow rate to the default setting. To check the pump calibration without resetting the flow rate, you may use the Verify Calibration function. Verifying the Calibration 1. -
Page 9: Battery Charging And Status
4. Using the arrows, select SINGLE SAMPLING MODE. 5. Press SET. 6. Using the arrows, enter the sample run time (adjustable in 1 minute increments). 7. Press SET (optional). 8. Press START to begin sampling. Once completed, the unit will beep, the display will show SAMPLE COMPLETE and the yellow sample complete light will turn on. -
Page 10: Battery Installation
indicate the unit is charging. When charging is complete, the charging light will blink. A full battery charge takes approximately 3 hours. If the pump will not be used for an extended period of time, it will slowly lose its battery charge and will need to be recharged before use. -
Page 11: Cautions And Warnings
3. Unplug the old battery from the circuit board. Remove it from the top of the case. 4. Install the new battery in the same orientation as the old, plug it into the board, and replace the bottom cover with four phillips-head screws. Do not overtighten as screws might strip. Cautions and Warnings Section 11 - 1. -
Page 12: Accessories And Consumables
4. Use ONLY the charger and battery supplied with the Bio-Pump IAQ Lite. Using a different battery or charger can damage the pump or cause injury from explosion. 5. Do not submerge the pump or subject the pump to any liquids. 6.
