Sealey AP6350GS.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instructions gloves
1. SAFETY
WARNING! Ensure Health & Safety, and local authority regulations are adhered to when assembling and using this rack.
‰
Locate rack in a suitable area where it will not be an obstruction.
9
Keep the general area clean, uncluttered and ensure there is adequate lighting.
9
WARNING! Erect rack on a level and solid surface such as concrete.
‰
Keep children and unauthorised persons away from the storage area.
9
DO NOT use the rack for any purpose other than that for which it is are designed.
8
DO NOT site the rack out of doors.
8
DO NOT get the rack wet or use in damp or wet locations or areas where there is condensation.
8
DO NOT clean the shelf supports with any solvents which may damage the surface.
8
Ensure that the rack is properly assembled before loading them with heavy items.
9
WARNING! Maximum load for each shelf is 350kg.
‰
Where possible the rack should be fixed to the wall with suitable fixings
9
Place heavier items on the lower shelves.
9
Heavier items should be evenly distributed across the shelves.
9
2. INTRODUCTION

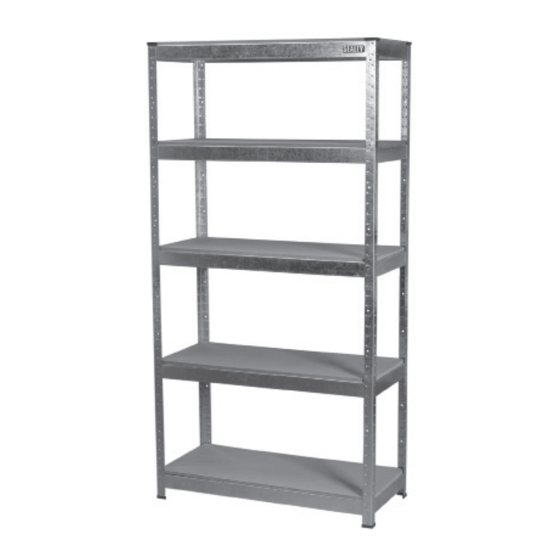

Steel frame with five MDF shelves (AP6350 painted/AP6350GS galvanised). 350kg capacity per level giving
a maximum capacity of 1750kg per rack. No nuts and bolts means no tools required to assemble. Clips
together in minutes. Two piece uprights allow use as a single bay rack, or split in two separate shelf
systems or workstations.
3. SPECIFICATION
Model No.........................AP6350.V2........................AP6350GS.V2
Coating......................................Paint.............................Galvanised
Height..................................1805mm.................................1805mm
Width.....................................910mm...................................910mm
Depth.....................................410mm...................................410mm
4. CONTENTS
Carefully unpack the product and check the contents against the list below. Should any items be missing or damaged make immediate
contact with your Sealey stockist.
Part Description
Leg Angle Section
Leg Angle Joiners
Plastic Floor Protectors
Shelf Support, Long
Shelf Support, Short
MDF Shelf
Fastener Kit (Nuts & Bolts for joining side by side sections)
© Jack Sealey Limited
RACKING UNIT WITH 5 SHELVES
(350KG CAPACITY PER LEVEL)
AP6350.V2 & AP6350GS.V2
MODEL NO:
No. off
8
8
8
10
10
5
4
Original Language Version AP6350.V2, AP6350GS.V2 Issue 1 09/07/18
