Summary of Contents for JY JY617

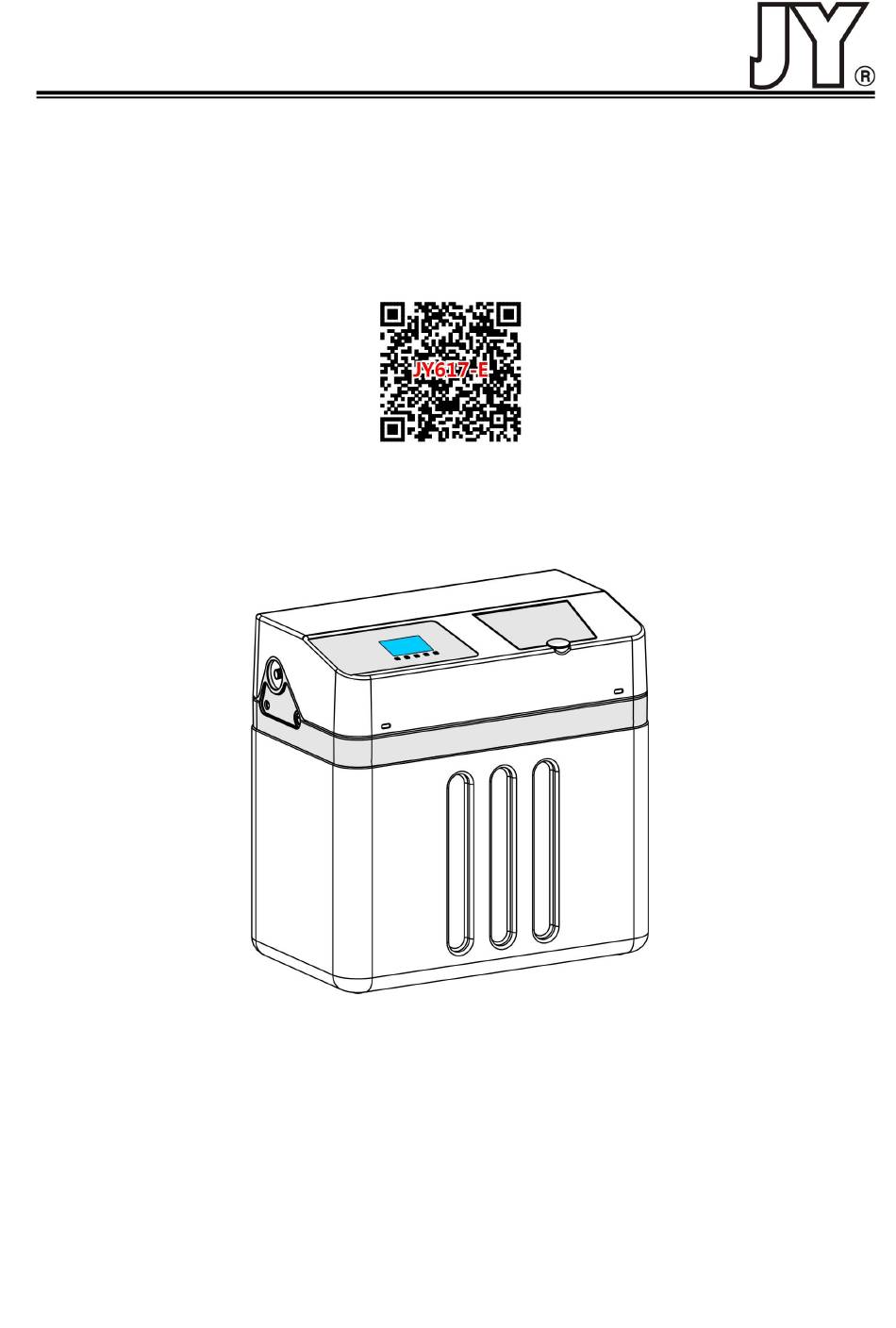

- Page 1 JY617、JY635 WHOLE-HOUSE WATER PURIFIER Scan Qr code for the latest...
- Page 2 JY617 Install and maintain instruction I Controller display and operation Pic1：Control panel The operation button： ：Manual switch(Forced backwash)； ：Parameter setting； ：Mode switch； ：Move to the next digit; ：Plus 1 A、 Unlock： Press “ ”&“ ” buttons at the same time， The key is unlocked,Displaying”...
- Page 3 JY617 Install and maintain instruction H. filter Run、Soft1 Run and Soft2 Run Respectively show that the filter valve, soft1 filter valve and soft2 valve are in the "Run" state. If one of these position is blank, it indicates that the position is missing one valve, or the connection of the valve is fault.
- Page 4 JY617 Install and maintain instruction 1、The program default parameter is suitable for raw water hardness 5mmol/L, suitable for most occasions, generally do not need to modify. 2、In order to ensure constant water use, the default setting is "delay backwash". 03:00 is the time when water is least commonly used.
-
Page 5: Installation
JY617 Install and maintain instruction liters. The factory setting value of the lower pressure switch is 0.02MPa. IV. Installation Installation precautions: 1. The drainage main pipe of the water purifier shall be reliably connected to the indoor drainage pipe, and the floor drain shall be set around it. - Page 6 JY617 Install and maintain instruction Pic7: JY617 Installation dimensions of water purifier Soft water flow rate pressure curve Pic8: Soft water flow rate pressure curve...
- Page 7 JY617 Install and maintain instruction Pic9: JY617 Installation dimensions of water purifier...
- Page 8 JY617 Install and maintain instruction VII Component and disassembly Component and disassembly Pic10:...
- Page 9 JY617 Install and maintain instruction Appendix JY617 Filter material and auxiliary list Serial Name Specification Number Resin 5L Bag Activate carbon 4L Bag RO Membrane 600G Precision filter core 5 micron Pure water tap 3/8″ Pure water pipe 3/8″×5meter IN & OUT Connecting pipe 1/2″×0.6meter...
