Desco 180.028 Quick Start Manual

50 needlegun and tile stripper pneumatic
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Hand-Held
Scarifiers
Needleguns
Walk-Behind
Scarifiers
Impact Tools
Sanders
Specialty
Tools
Industrial
Vacuums

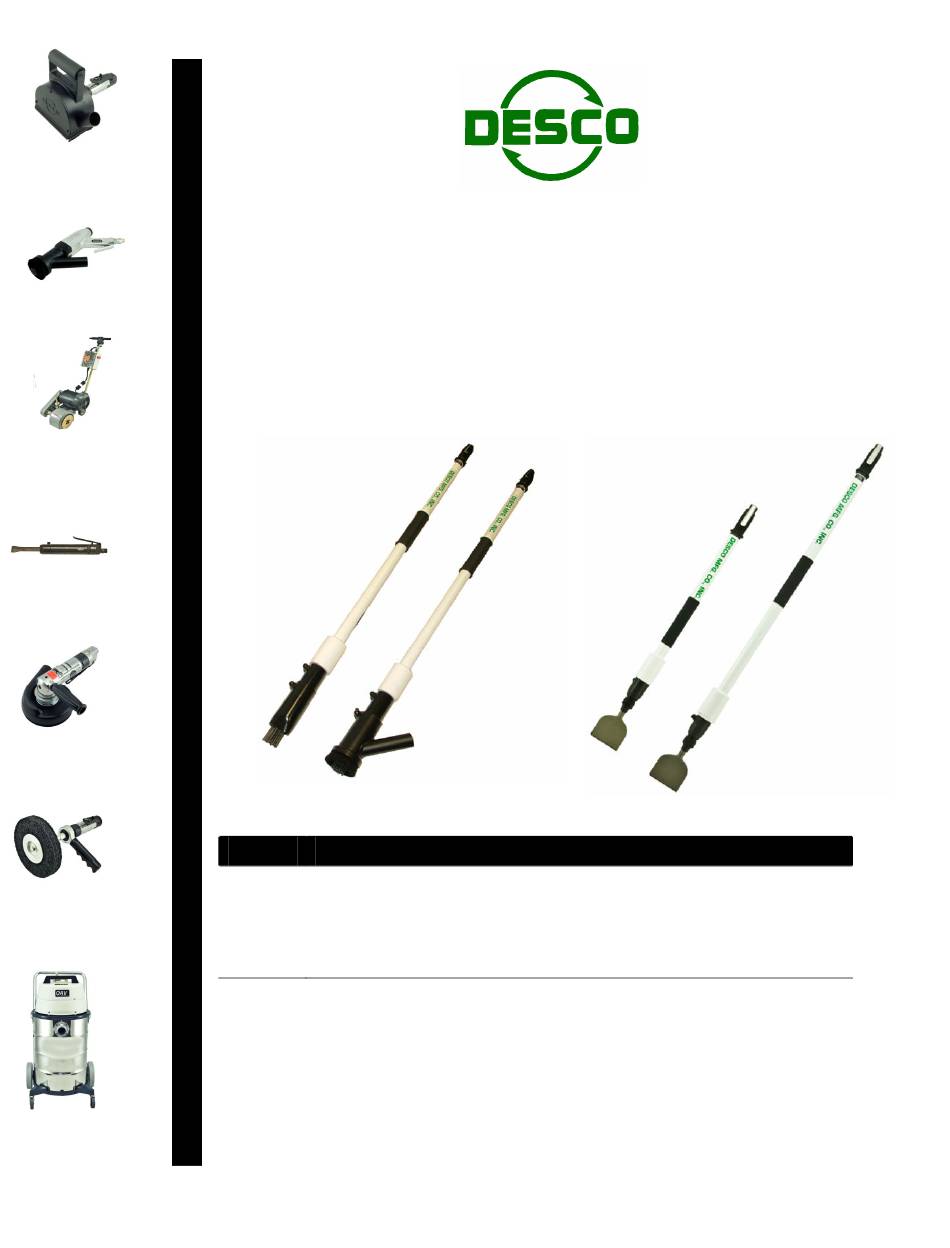

Needle Gun, Model50, (180.series), Manual, Oct2012.pdf
October 2012
Part
180.028
Needlegun, 5', Model 50, with flat style dust collector
180.0281
Needlegun, 5', Model 50, without dust collector
180.029
Tile Stripper, 5', standard
180.030
Tile Stripper, 5', ultra light
180.010
Tile Stripper, 2'
23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688
949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free
www.descomfg.com ● info@descomfg.com
Model 50 Needlegun
Tile Stripper
Configurations
Description
DESCO Mfg. Co., Inc.
and
Pneumatic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 180.028 and is the answer not in the manual?

Questions and answers

Related Manuals for Desco 180.028

Summary of Contents for Desco 180.028

  • Page 1 Tile Stripper, 5′, standard 180.030 Tile Stripper, 5′, ultra light 180.010 Tile Stripper, 2′ DESCO Mfg. Co., Inc. 23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688 Industrial 949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free Vacuums www.descomfg.com ● info@descomfg.com Needle Gun, Model50, (180.series), Manual, Oct2012.pdf...

  • Page 2: Table Of Contents

    Contents INTRODUCTION ..........................1 ..........................1 PPLICATIONS ........................ 1 ECHNICAL PECIFICATIONS CAUTIONS FOR USE .......................... 2 ......................2 PERATING NSTRUCTIONS ..................2 LWAYS PPROVED ROTECTION .................... 2 EARING ROTECTION IS ECOMMENDED ..................2 VOID ROLONGED XPOSURE TO IBRATION 90 PSI M ..........................

  • Page 3: Introduction

    DESCO Innovative Solutions Introduction The Desco Model 50 is a Tile Stripper that converts to a Needlegun. For convenience, the tool is sold pre-configured as either a tile stripper or an extended reach needlegun. The Model 50 needle gun is a back and time saver. The long reach gets you off your knees and ladder.

  • Page 4: Cautions For Use

    DESCO Innovative Solutions Cautions for Use PLEASE READ AND FOLLOW ALL WARNINGS Read Operating Instructions Always become familiar with all the instructions and warnings before operating any pneumatic tool. Always Wear Approved Eye Protection Impact resistant eye protection should meet or exceed the standards as set forth in the United States ANSI Z87.1, Occupational and Educational...

  • Page 5: Requirements

    Innovative Solutions Requirements The Desco Model 50 Needle Scaler and Tile stripper is designed to operate with 90 PSI. Lower pressure (below 90 PSI) will reduce performance of the tool while higher air pressure (over 90 PSI) raises the performance of the tool beyond its rated capacity and could cause serious damage to tool and operator.

  • Page 6: Tile Stripper Configuration

    DESCO Innovative Solutions Tile Stripper Configuration 1) To configure as a tile stripper, attach chisel holder by screwing into the tool body. Note: set screw must be loose prior to attaching chisel holder. 2) Secure chisel holder by tightening set screw with Allen wrench.

  • Page 7: Needle Gun Configuration, Without Dust Collection

    DESCO Innovative Solutions Needle Gun Configuration, without Dust Collection 1) To configure as a needlegun, attach needle assembly by screwing into the tool body. Note: set screw must be loose prior to attaching needle assembly. 2) Secure needle assembly by tightening set screw with Allen wrench.

  • Page 8: Installing Replacement Needles

    DESCO Innovative Solutions Installing Replacement Needles 1) Remove needlegun assembly from tool body by loosening set screw with Allen wrench. 2) Remove needlegun assembly by unscrewing from the tool body. 3) Remove plunger from needlegun assembly. 4) Remove needle holder and needles from needle gun assembly.
  • Page 9 DESCO Innovative Solutions 5) Remove and replace needles. When complete, all needles should be the same length. As a result, you generally need to replace all needles, not just the broken needles because the old, warn needles will be shorter than the new needles and will have experienced metal fatigue.

  • Page 10: Operation

    DESCO Innovative Solutions Operation Scaling efficiency depends on the force applied to the scaler. For efficient material removal on most applications, applying a light hold down pressure will give the best results. Do not bear down. More force does not equal more productivity.

  • Page 11: Storage

    When the tool jams, the most likely cause is lack of lubrication. To correct disassemble, clean, inspect, lubricate, and reassemble. If the problem persists, please contact your Desco representative. Needles breaking Short needle life is often caused by the tool operator bearing down on the tool too hard.

  • Page 12: Schematics

    DESCO Innovative Solutions Schematics Model 50 Needlegun Dust Collector Part Description 1 750.006 Bolt 2 130.007 Bolt DCOA 3 130.060 Shroud, Inside Corner DCOA 4 130.059 Shroud, Flat Brush DCOA 5 500.060 Brush Model 50 Needlegun and Tile Stripper Page 10...

  • Page 13: Model 50 Needlegun & Tile Stripper

    DESCO Innovative Solutions Model 50 Needlegun & Tile Stripper Part Description Part Description 180.090 Valve Cap 180.106 "O" Ring 180.091 "O" Ring-Valve Cap 180.094 Cover Assembly (w/ 18 Locknut) 180.099 Valve Spring 180.092 Center Tube 180.098 Valve Stem 180.104 Handle Tube 180.100...
