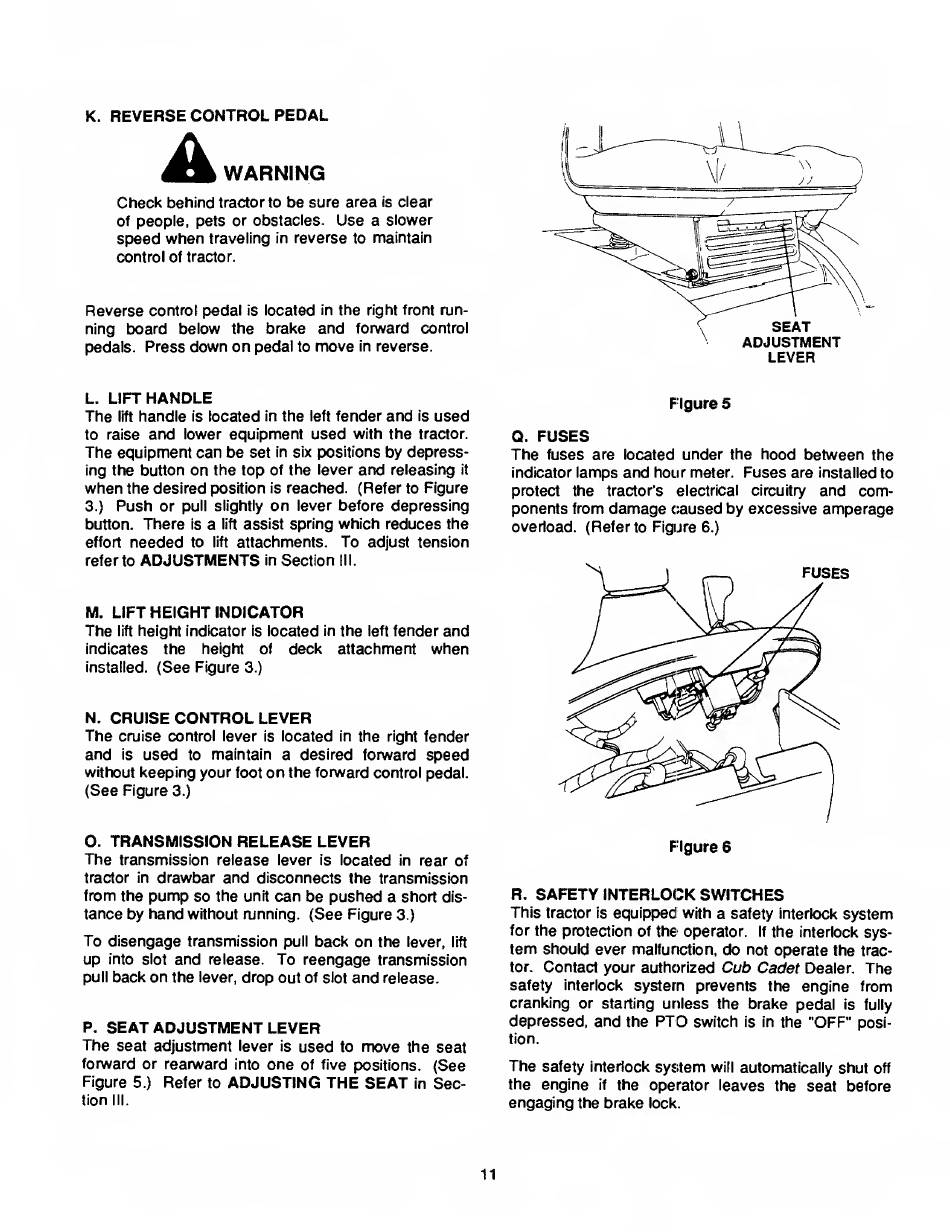

Cub Cadet 2000 Series Owner's Manual page 11

K. REVERSE CONTROL PEDAL
A WARNING
Check behind tractorto be sure area is clear
of people, pets or obstacles. Use a slower
speed when traveling in reverse to maintain
control of tractor.
Reverse control pedal is located in the right front run¬
ning board below the brake and forward control
pedals. Press down on pedal to move in reverse.
L. LIFT HANDLE
The lift handle is located in the left fender and is used
to raise and lower equipment used with the tractor.
The equipment can be set in six positions by depress¬
ing the button on the top of the lever and releasing it
when the desired position is reached. (Refer to Figure
3.) Push or pull slightly on lever before depressing
button. There is a lift assist spring which reduces the
effort needed to lift attachments. To adjust tension
refer to ADJUSTMENTS in Section III.
M. LIFT HEIGHT INDICATOR
The lift height indicator is located in the left fender and
indicates the height of deck attachment when
installed. (See Figure 3.)
N. CRUISE CONTROL LEVER
The cruise control lever is located in the right fender
and is used to maintain a desired forward speed
without keeping your foot on the forward control pedal.
(See Figure 3.)
O. TRANSMISSION RELEASE LEVER
The transmission release lever is located in rear of
tractor in drawbar and disconnects the transmission
from the pump so the unit can be pushed a short dis¬
tance by hand without running. (See Figure 3.)
To disengage transmission pull back on the lever, lift
up into slot and release. To reengage transmission
pull back on the lever, drop out of slot and release.
P. SEAT ADJUSTMENT LEVER
The seat adjustment lever is used to move the seat
forward or rearward into one of five positions. (See
Figure 5.) Refer to ADJUSTING THE SEAT in Sec¬
tion III.
Figure 5
Q. FUSES
The fuses are located under the hood between the
indicator lamps and hour meter. Fuses are installed to
protect the tractor's electrical circuitry and com¬
ponents from damage caused by excessive amperage
overload. (Refer to Figure 6.)
R. SAFETY INTERLOCK SWITCHES
This Iractor is equipped! with a safety interlock system
for the protection of the! operator. If the interlock sys¬
tem should ever malfunction, do not operate the trac¬
tor. Contact your authorized Cub Cadet Dealer. The
safety interlock system prevents the engine from
cranking or starting unless the brake pedal is fully
depressed, and the PTO switch is in the "OFF" posi¬
tion.
The safety interlock system will automatically shut off
the engine if the operator leaves the seat before
engaging the brake lock.
