hotbath Archie AR090 Installation Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Installation manual
VOORDAT U BEGINT
MAX
3
P
FILTER KRANEN AANBEVOLEN
5
15
s
1
1
bar
MIN
ON
OFF
T
MAX
60
80
45
°C
AR090
For more information about our products, visit www.hotbath.nl
Pag. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Archie AR090 and is the answer not in the manual?

Questions and answers

Related Manuals for hotbath Archie AR090

Summary of Contents for hotbath Archie AR090

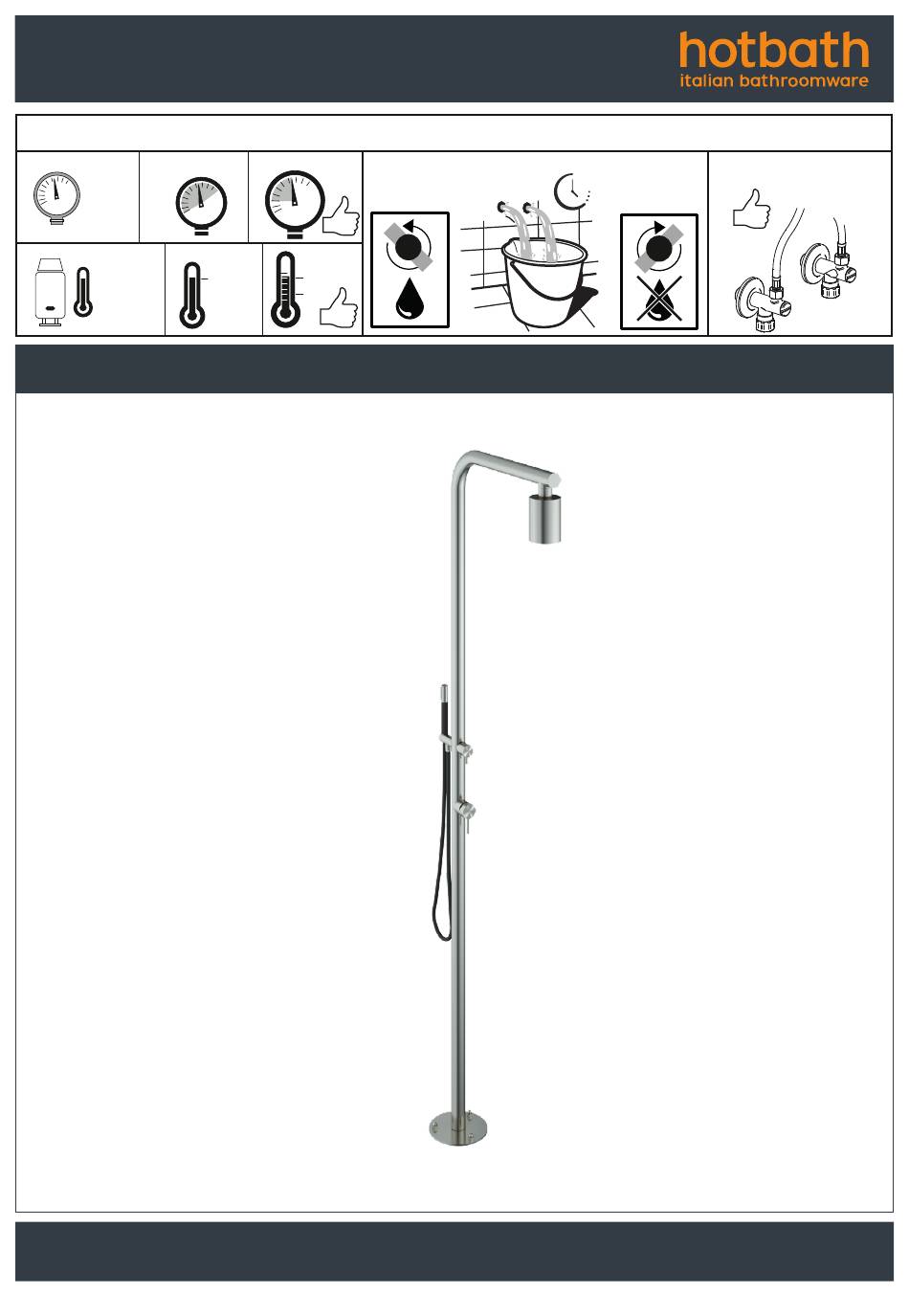

  • Page 1 Installation manual VOORDAT U BEGINT FILTER KRANEN AANBEVOLEN °C AR090 For more information about our products, visit www.hotbath.nl Pag. 1...
  • Page 2 AR090 Pag. 2...

  • Page 3: Pre-Installation

    Install a polyethylene/polypropylene water supply pipe (or a similar material), finished off with a ½” male thread Wash out the supply pipes upstream of the inspection well Preinstallation 1. Prior to installation, an inspection well equipped with a stop valve shall be built. It should be of appropriate size to allow all required water connections.

  • Page 4: Installation

    INSTALLATION Place the shower column into position and trace the 3 fixation holes. Remove the column. Installation INSTALLATION Drill three 10 mm diameter holes, to a depth of 12 cm. Place the shower column into position 1. Place the shower column into positionand trace the Mount the washers and the blocking and trace the 3 fixation holes.

  • Page 5: Periodical Maintenance

    In case of long term non-use (typically: use limited to summer season only), we recommend to remove the entire shower column, demounting it in reverse order to the ‘Installation’ chapter (page up). In case this would not be possible, we suggest to: Maintenance and Cleaning 1.

  • Page 6: Troubleshooting

    The high-quality, patented inner workings of Flühs supplied key Combine a shower set with the High Flow thermostats from the Almost all Hotbath taps are fitted with high-quality, patented Flühs The faucet handle is loose The handle can become loose due to Secure your lever with an Allen key Mate series for a wonderful shower experience.
  • Page 7 Colour Plated: AI, RG en BK Use the Hotbath sanitary cleaner for cleaning the taps in one of the colour-plated finishes. Always apply the Hotbath spray with a soft cloth or sponge, never spray directly onto the tap itself. Allow the spray to work in for no longer than 1-2 minutes.
  • Page 8 Product] up to that point. under the warranty, the correction of defects is usually free of charge. C. If a valid claim is made under the warranty, Hotbath will not charge rechtsgeldige aanspraak op de garanti e is het herstel van gebreken doorgaans van zelfde waarde.
