Summary of Contents for Zebronics ZEB-MW70

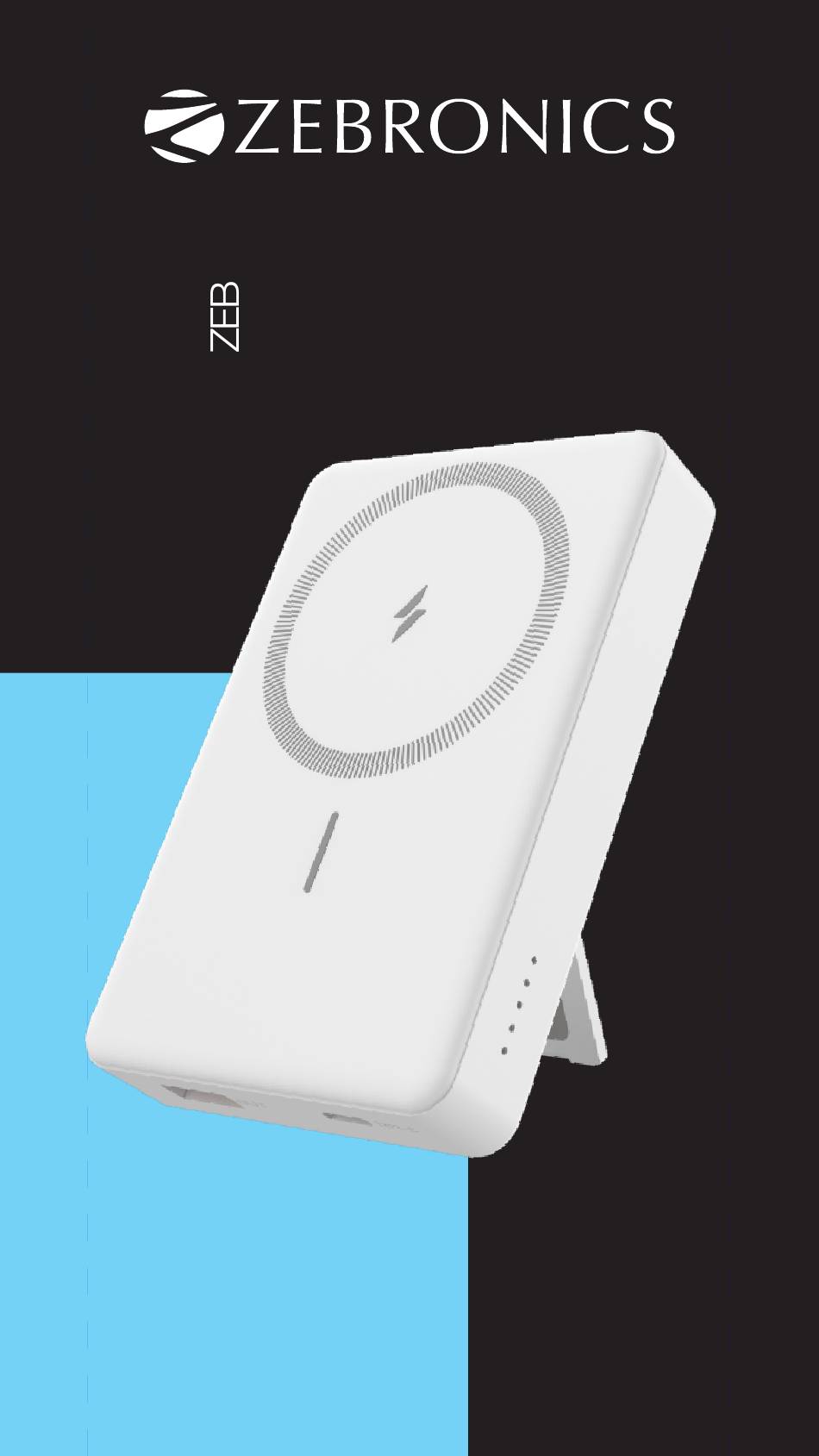

- Page 1 Power Bank User Manual www.zebronics.com...
- Page 2 Thank you for purchasing ZEB-MW70 power bank. Please read this user manual carefully before operation & save this user manual for future reference. Note : • Avoid the usage of this product at high-temperature and high-humidity environments. • Avoid the self-disassembling of the product or it will result in voiding the Product’s warranty.
- Page 3 Specifications: Battery Capacity : 10000mAh Type-C Input : DC 5V/3A, 9V/2A, 12V/1.5A Output 1 (Type -C) : DC 5V/3A, 9V/2.22A, 12V/1.67A, 5~11V/2A PPS Output 2 (USB) : DC 5V/3A, 9V/2.22A, 12V/1.85A (22.5W Max. Output) Wireless Charging Output : DC 5V/1A, DC 7.5V/1A, DC 9V/1.12A, DC 9V/1.67A , DC 12V/1.25A (15W max.) No.of Outputs...
- Page 4 Product Representation : power button Wireless charging pad Indicator Type-C Input / Port Output port Charging the Power Bank : • Plug the Type-C cable into the charging port of the power bank and connect the other end to a USB or Type-C cable attached to the power adapter.
- Page 5 Wireless charging pad of the power bank. Device with Type-C / Micro USB / Output Port Lightning Type C / USB support [Note: Simultaneous usage of the power bank output provides standard 5V DC output] ISO 9001:2015 Certified Company www.zebronics.com...
Need help?
Do you have a question about the ZEB-MW70 and is the answer not in the manual?
Questions and answers
It’s not charging
The Zebronics ZEB-MW70 power bank may not be charging due to the following reasons:
1. Incorrect Power Adapter – Ensure you are using a power adapter with the correct rating (DC 5V/3A, 9V/2A, 12V/1.5A) for the Type-C input port.
2. High Temperature or Humidity – Avoid using the power bank in high-temperature or high-humidity environments, as it may affect charging.
3. Overload or Short Circuit Protection – If the power bank has detected an overload or short circuit, it may not charge. Try using a different cable or adapter.
4. Self-Disassembly – If the product has been disassembled, the warranty is void, and it may not function properly.
5. Damaged Cable or Port – Check if the charging cable or port is damaged and try using another cable.
6. Battery Issue – If the battery is completely drained or defective, the power bank may not charge.
If the issue persists, refer to the warranty terms for possible service or replacement.
This answer is automatically generated
