ATTE xFIBER-2-70 Instruction Manual

xFIBER-2-70
Gigabit Ethernet media converter – SFP
10/100/1000Mbps PoE Out
INSTRUCTION MANUAL
xFIBER-2-70 is a Gigabit Ethernet - SFP converter dedicated to IP CCTV systems. It allows you to
change the transmission medium from UTP copper twisted pair to optical fiber. By using any SFP
insert compatible with the IEEE 802.3z standard, we can adjust the parameters of the optical path to
the requirements of the installation (e.g. cooperation with single-mode or multi-mode fibers).
In combination with APS/AUPS power supplies and APT/xPoE extenders, it enables easy construction
of distribution points for extensive CCTV installations based on fiber optic cabling.
The module can be powered only through a screw connector with a voltage in the range of 12-58VDC.
The gigabit LAN port can support PoE-powered devices operating in the 802.3af/at and PASSIVE
standards (for Vin >44VDC). After connecting the receiver, the PoE power standard is automatically
selected.
The small size allows the device to be built in any housing, but the most convenient method of
installation is the dedicated ABOX series housings and mounting pre-drilled plates in a 10.8mm
raster. The system solution allows for vertical or horizontal installation of selected devices in any open
part of the housing or mounting plate.

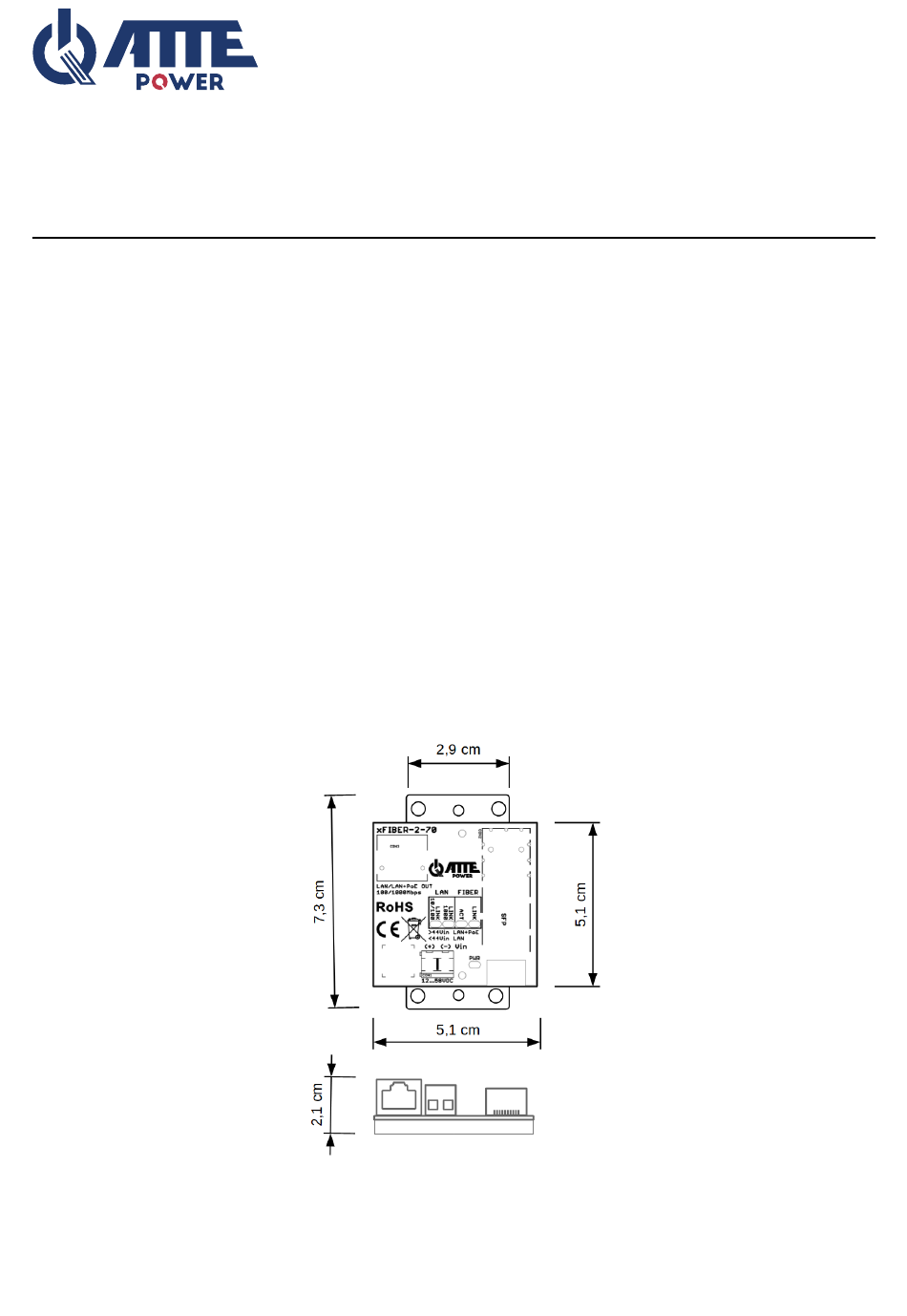

General view of the device
