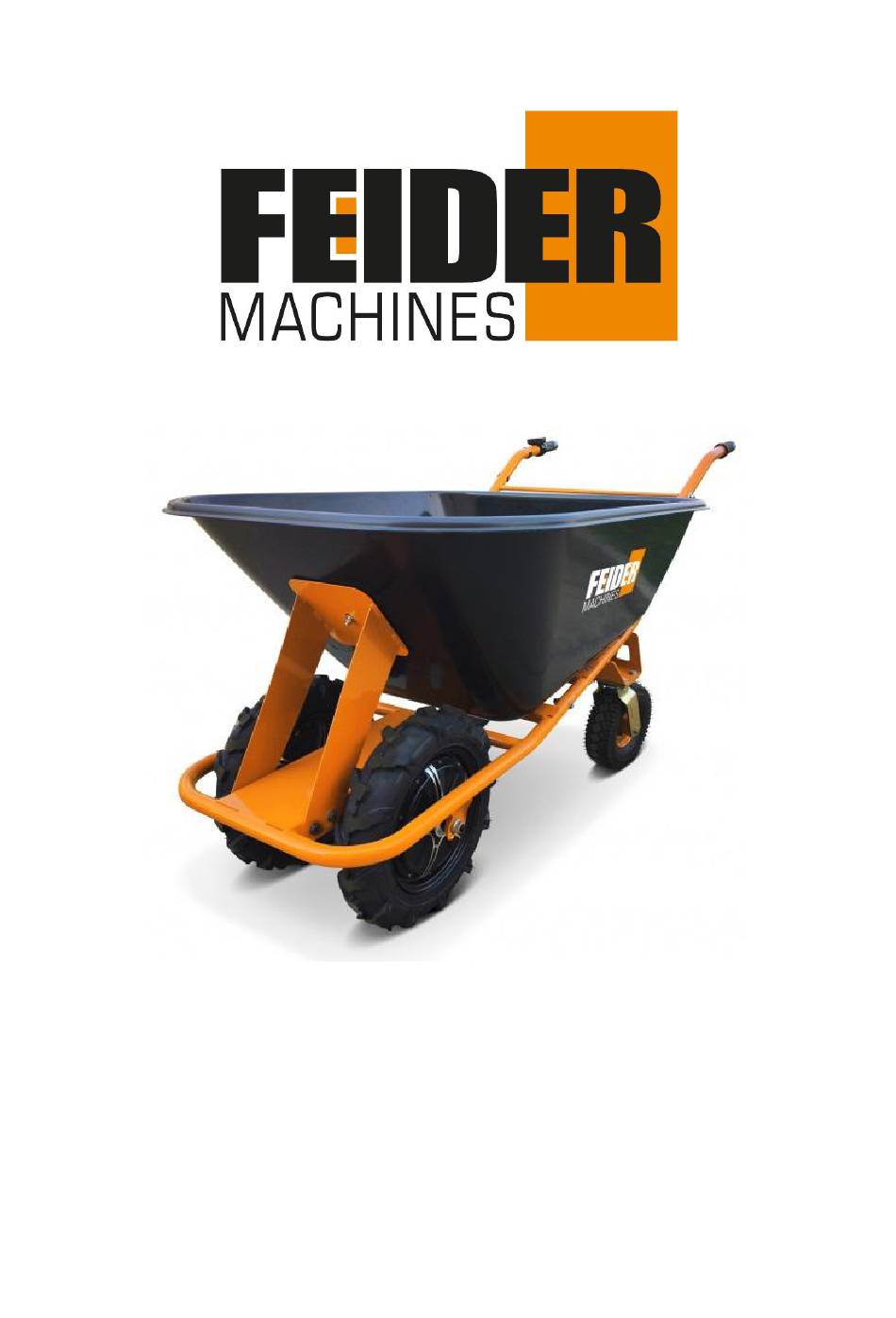

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRIC WHEELBARROW NEXO4B-24V USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. TECHNICS.............................. 3 2. SAFETY INSTRUCTIONS........................5 3. ASSEMBLY.............................7 4. OPERATION............................11 5. MAINTENANCE AND STORAGE....................14 6. TROUBLE SHOOTING........................15 7. SPARE PARTS.............................15 8. DISPOSAL............................16 9. DECLARATION OF CONFORMITY....................17 10. WARRANTY............................18 11. PRODUCT FAILURE........................19 12. WARRANTY EXCLUSIONS......................20... -
Page 3: Technics
1. TECHNICS 1.1 Components NEXO4B-24V Speed Control lever Front Tubular Frame Handle Assy Front Tray support Universal wheel Tray Front wheel with motor(left) - Page 4 1.2 Technical data NEXO4B-24V Rated voltage 24 V DC Battery capacity 12 Ah Max Battery worktime [h] Motor power 2*500 W speed max.forward 6 km/h reverse 2 km/h max. load capacity 300kg weight (netto/net) 5 8 kgs Dimension 1660x880x920 m...
-
Page 5: Safety Instructions
2. SAFETY INSTRUCTIONS 2.1 Intended use The machine must only be used for its intended purpose! Any use other than listed in this manual is deemed misuse. To use the machine properly you must observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions described in this manual. - Page 6 GENERAL: Use the machine only in good enough light to allow visibility and safe operation. Use of the machine is prohibited during episodes of exhaustion, decreased concentration or under the influence of alcohol or drugs. Caution in slippery conditions! Slip hazard-risk of injury. When operating the machine, it is ...
-
Page 7: Assembly
2.3 Remaining risk factors Despite the intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions: DANGER A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. - Page 8 3.1 Assembly-steps...
- Page 10 3.2 Assembly-steps for cable 3.2.1 Connect control lever cable （6pin plug&socket） 3.2.2 Connect motor cable（3&5 pin plug&socket） Firstly make sure the motor are in the right position, the motor cable is at the inner side...
-
Page 11: Operation
Then connect the cable Warning: Only nut #1 is allowed to be turned in order to fasten or unfasten the plug, nut #2 is prohibited to be turned otherwise for professional repair. 4. OPERATION The machine must be operated in a perfect state only. Inspect the machine visually every time it is to be used. - Page 12 Press the power button on the battery box to "1:=ON". 1. light #L1(green), #L3(green) 2. press the throttle lever #1, the wheelbarrow will go forward 3. if press button #2 once, light #L2 on, press throttle lever #1, the wheelbarrow will go backwards 4.
- Page 13 4.2.2 On the slope For safety reason, never overload at any conditions, meanwhile please operate within the limit of the below requirement. 4.3 Charger Charger is integrated in the battery system (#7). Charging the battery: Connect the charger to the power supply (AC outlet) 230 V / 50 Hz and the charger plug. ...
-
Page 14: Maintenance And Storage
5. MAINTENANCE AND STORAGE ATTENTION Unplug battery before all maintenance and settings! Serious injury due to unintentional or automatic activation of the machine! The machine does not require extensive maintenance. If malfunctions and defects occur, it must be serviced by trained persons only. NOTICE Clean your machine regularly after every use –... -
Page 15: Trouble Shooting
6. TROUBLE SHOOTING BEFORE YOU START WORKING FOR THE ELIMINATION OF DEFECTS, UNPLUG THE BATTERY. Problem Possible cause Solution Battery is not charged Recharge battery Motor stuck Check motor No electrical support Power switch is damaged Check switch Broken or loose cables Check cables No charging of battery Loosen cable... -
Page 16: Disposal
PART NAME Front Tray support Tray front reinforce rib back reinforce rib right handle speed control lever handle grip reinforced bar battery assy Universal wheel left handle front tubular frame Motor with wheel 8. DISPOSAL Do not dispose of the machine and the battery in residential waste. Contact your local authorities for information regarding the available disposal options. -
Page 17: Declaration Of Conformity
32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel: +33 (0) 5.34.508.508 Fax: +33 (0) 5.34.508.509 Declare that the machine designated below ELECTRICAL WHEELBARROW NEXO4B-24V Serial number: 20230705441-20230705488 Conforms to the provisions of the Machinery Directive 2006/42 / EC and the national regulations transposing it;... -
Page 18: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 19: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 20: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 21 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC...
