Summary of Contents for Kernlochbohrer MY LED POSTER P1.875 GOB

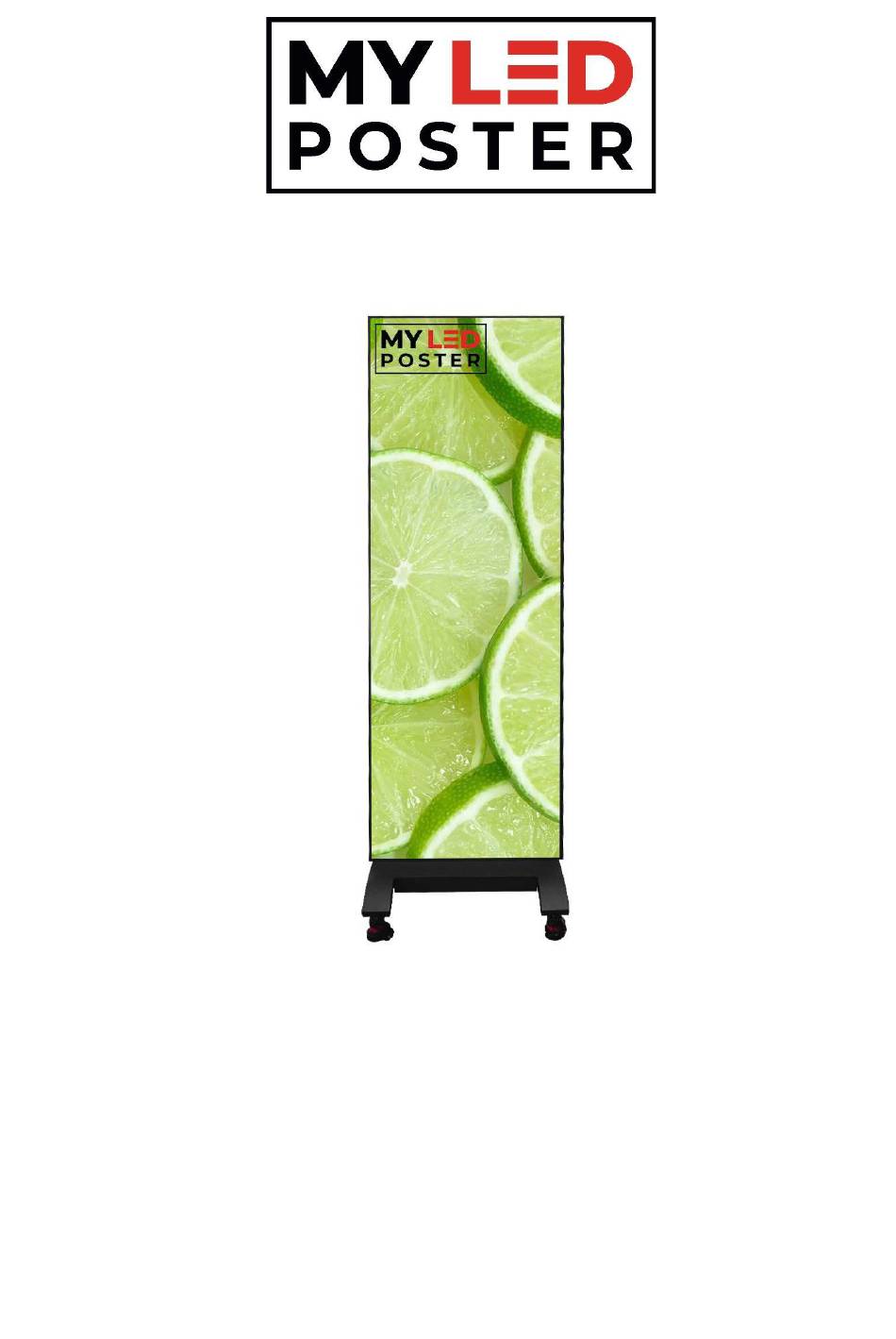

- Page 1 Operating instructions LED poster P1.875 GOB BA-50-000001-01-EN...
- Page 3 Kernlochbohrer GmbH. Errors and technical changes excepted. Kernlochbohrer GmbH is not liable for any errors in this documentation. Liability for direct or indirect damages arising in connection with the delivery or use of this documentation is excluded to the extent permitted by law.
-
Page 4: Table Of Contents
Operating instructions LED poster P1.875 GOB Table of contents Information and support ................5 Thanks to the buyer ................5 Using the Operating instructions ............5 Changes ....................5 Explanation of symbols ................ 6 Guarantee .................... 6 Environmental protection..............6 1.6.1 Disposal of the packaging ............. -
Page 5: Information And Support
By following the Operating instructions, you will be able to fully uti- lise the outstanding performance of our product. If you have any questions about the operation of the product, please contact Kernlochbohrer GmbH directly. We are available to answer your questions at any time. Using the Operating instructions The product is intended for professional use and may only be operated by trained personnel. -
Page 6: Explanation Of Symbols
Background information or reference to special features. Guarantee In accordance with Kernlochbohrer GmbH's general terms and conditions of delivery, a warranty period of 24 months applies to material defects in busi- ness transactions with companies (proof by invoice or delivery note). -
Page 7: Disposal Of The Product
Please contact us to order spare parts. You are welcome to send us photos when ordering spare parts or videos in the event of faults. Contact details: Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Germany Phone: +49 (0)70 22 / 50 34 900 E-mail: info@kernlochbohrer.com... -
Page 8: Scope Of Delivery
Operating instructions LED poster P1.875 GOB Scope of delivery The scope of delivery includes the following components: Transport box Foot Module (1 piece already mounted on the base) 21 LED panel Suction lifter HDMI connection cable Mains connection cable Mains cable Connecting piece 23 Cheese head screw with hexagon socket M6x20 15 Cheese head screw with hexagon socket M6x10... -
Page 9: Security
"Technical data" chapter. Any other use or use beyond this is considered improper use - risk of accident! Kernlochbohrer GmbH is not liable for any resulting damage. The risk is borne solely by the operator. Intended use also includes observing the Operating instructions. -
Page 10: Organisational Safety Measures
Spare parts Spare parts must comply with the properties defined by Kernlochbohrer GmbH. This is always guaranteed for spare parts supplied by Kernlochbohrer GmbH. Kernlochbohrer GmbH is not liable for damage caused by the use of unsuitable spare parts. BA-50-000001-01-EN... -
Page 11: Personnel
Operating instructions LED poster P1.875 GOB Personnel All persons tasked with commissioning, operating and maintaining the product must have read and understood the Operating instructions beforehand. The product may only be operated by persons who have been adequately in- structed beforehand. Maintenance of the product may only be carried out by persons who have completed specialised training appropriate to this activity. -
Page 12: Safe Behaviour
Operating instructions LED poster P1.875 GOB Safe behaviour Any work on and with the product that could jeopardise safety must be avoided. All safety and hazard warnings on the product must be legible and must not be removed. Operating the product requires the full concentration and ability of the person- nel. -
Page 13: Safety During Maintenance
Operating instructions LED poster P1.875 GOB Safety during maintenance Maintenance of the product may only be carried out by persons who have completed specialised training appropriate to this activity. The maintenance activities and intervals specified in the Operating instructions must be observed. Workshop equipment appropriate to the type of work is required to carry out maintenance activities. -
Page 14: Technical Data
Operating instructions LED poster P1.875 GOB Technical data General Model LED poster P1.875 GOB Article number 9500 Screen size 600 x 1687.5 mm Screen resolution 320 x 900 Number of LED panels LED composition 1R 1G 1B / R : G : B: = 3 : 6 : 1 Pixel density 284444 dot/m²... - Page 15 Operating instructions LED poster P1.875 GOB LED panel Size 300 x 168.75 mm Resolution 160 x 90 Weight 300 g LED type Kinglight SMD1515 Power consumption < 16 W Transport box Size 700 x 700 x 580 mm Weight 20 kg 2024-07-31 BA-50-000001-01-EN...
-
Page 16: Hardware Installation
Operating instructions LED poster P1.875 GOB Hardware installation Single poster Procedure: Open the transport case and remove the packaged LED panels from the transport case. Remove the base of the LED poster from the transport case; the first mod- ule is already attached to it. - Page 17 Operating instructions LED poster P1.875 GOB Attach the first LED panel to the lower module. Use the suction lifter for this. Align the LED panel so that the arrows on the circuit board at the rear are pointing upwards. ...
-
Page 18: Multiple Poster
Operating instructions LED poster P1.875 GOB Multiple poster A maximum of six individual posters can be combined to form a multiple poster. Prerequisites: All modules of the individual posters installed according to the previous in- structions. Procedure: Connect the modules of the individual posters together using quick-release fasteners. -
Page 19: Software Installation
Operating instructions LED poster P1.875 GOB Software installation Various NovaStar software is suitable for use with the LED poster: - "ViPlex Handy" for IOS or Android. - "ViPlex Express" or "Nova LCT" for Windows Information on using the software can be found in the relevant user documentation from the software manufacturer. -
Page 20: Maintenance
Operating instructions LED poster P1.875 GOB Maintenance Visual inspection The product must be visually inspected at regular intervals. The mains plug must be disconnected from the socket before the visual in- spection. During the visual inspection, pay particular attention to the LED panels and HDMI or mains cable. -
Page 21: Eu Declaration Of Conformity
Operating instructions LED poster P1.875 GOB EU Declaration of Conformity The manufacturer/distributor Kernlochbohrer GmbH | Geigersbühlweg 52 | 72663 Großbettlingen | Germany hereby declares that the following product Product description: LED poster Type: P1.875 GOB complies with all relevant provisions of the applicable legal regulations (hereinafter) - including their amendments valid at the time of the declaration. - Page 22 Operating instructions LED poster P1.875 GOB BA-50-000001-01-EN 2024-07-31...
