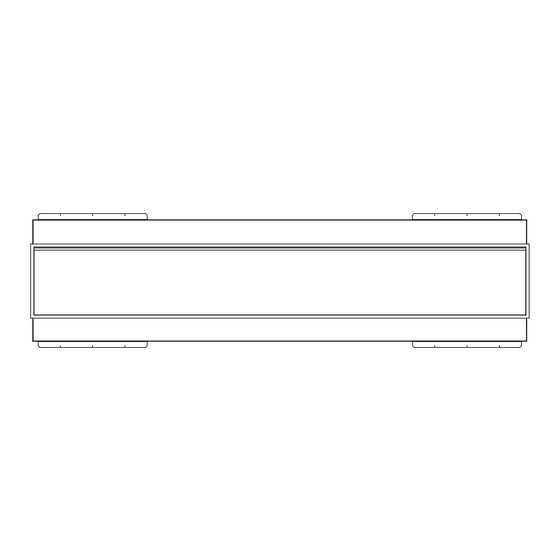

ELECTRIC FIREPLACE HEATER
OWNER'S MANUAL
MOXEAY
Model: MY2244 ; MY2256 ; MY2268 ; MY2280 ; MY2296 .
Read and understand this entire owner's manual including all safety
WARNING
information, before plugging in or using this product. Failure to do so
could result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.
1
Advertisement
Table of Contents
Summary of Contents for MOXEAY MY2244
- Page 1 ELECTRIC FIREPLACE HEATER OWNER’S MANUAL MOXEAY Model: MY2244 ; MY2256 ; MY2268 ; MY2280 ; MY2296 . Read and understand this entire owner’s manual including all safety WARNING information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.
-
Page 2: Table Of Contents
Electric Fireplace Table of Contents Parts and Hardware ..............................4 Tools Required ................................4 Unpacking and Setup ..............................4 Unpacking Instructions ............................4 BOX CONTENTS ..............................4 Wiring ..................................5 Testing the Fireplace Prior to Installation ......................5 Prong Outlet Installation ............................5 Power Data .................................. - Page 3 Electric Fireplace IMPORTANT SAFETY INFORMATION WARNING • THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS • Do not operate fireplace before reading and understanding operation instructions. Failure to operate fireplace according to operation instructions could cause fire or injury. •...
-
Page 4: Parts And Hardware
Electric Fireplace Parts and Hardware Tools Required • Phillips screwdriver • Stud finder • Level • Tape measure • Electric drill • Wood drill bit Unpacking and Setup Unpacking Instructions • Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Check the parts list to make sure no parts are missing. -
Page 5: Wiring
• Make sure this plug fits securely into the outlet. Faulty wall outlet connections or loose plugs can cause the outlet to overheat. If the outlet or face plate is hot, discontinue use immediately and have a qualified electrician inspect and/or replace the faulty outlet. Power Data Model MY2244 MY2256 MY2280 MY2296 MY2268... -
Page 6: Installation
Electric Fireplace Installation WARNINGS • We would always recommend that you employ an experienced, qualified installer when fitting such products. • Each installation will vary and specialist expertise is often required to conduct the building work. • Giatalia / Your retailer therefore bears no responsibility or liability for any incorrectly installed fires. •... -
Page 7: Recessed Installation
Viewing Area Firebox Dimensions Framing Dimensions 1111mm W x 1124mm W x 603mm H x 1130mm W x 613mm H x MY2244 356mm H 140mm D 152mm D 1416mm W x 1429mm W x 603mm H x 1435mm W x 613mm H x... -
Page 8: Recessed Installation Overview
To be performed by a qualifi ed electrician according to local building codes. L1 - Line 1 N - Neutral - - Grou Fully recessed installation Model 1130mm 613mm 152mm MY2244 1435mm 613mm 152mm MY2256 MY2268 1740mm 613mm 152mm MY2280... -
Page 9: Recessed Installation
Electric Fireplace 2. Install L Metal Nailing Flanges to the fi replace. 3. Install the fi re unit in the framed opening with a minimum 1 ¼ drywall screws to secure the unit. 4. Mask the exposed fi re unit during the drywall process. -
Page 10: Installing The Crystal Ember And Log-Set
Electric Fireplace 2. Install L Metal Nailing Flanges to the fi replace. 3. Install the fi re unit in the framed opening with a minimum 1 ¼ drywall screws to secure the unit. 4. Mask the exposed fi re unit during the drywall process. - Page 11 Figure 1.1 The unit has 2 channels on the top and bottom to hold the frontglass. Using the included suction cups, insert the glass at an angle in to the topchannel. Swing the bottom edge of the glass in to the unit. See Figure1.1. Figure 2.2 Slide the glass down in to the bottom channel.
-
Page 12: Operating Fireplace
Electric Fireplace Operating Fireplace Once the fireplace has been plugged into a grounded outlet, the fireplace is now ready for operation. Ensure that the house circuit breakers for the power supply are turned on. Power Plug the power cable into a 120v 14 amp grounded outlet. Make sure the outlet is in good condition and that the plug is not loose. -
Page 13: Method Of Operation
RGB wheel and brightness slider. Ember This is a zone setting that controls the color and brightness of the ember bed. MOXEAY This is a zone setting that controls the color and Downlight brightness of the downlight. Pairing remote: To pair remote, turn off... -
Page 14: Care And Maintenance
Electric Fireplace Care and Maintenance Cleaning • ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving the fireplace. Failure to do so could result in electric shock, fire, or personal injury. •... -
Page 15: Wi-Fi Controls
Electric Fireplace Wi-Fi Controls This fireplace is also capable of being controlled over Wi-Fi using an Apple or Android mobile device. Scan the QR code for an instructional walk through video on how to download and setup the app needed to control your Electric fireplace. Alternatively, you can follow the steps below. -
Page 16: Wi-Fi Controls
Electric Fireplace Wi-Fi Controls Next you will be prompted to connect to your existing home wireless network. Select the appropriate 2.4Ghz network and log in. Note - Only 2.4GHz wireless networks are compatible, 5GHz wireless networks cannot be used. If not available, contact your wireless service provider for further information on setting up a 2.4GHz wireless network. -
Page 17: Wi-Fi Controls
Electric Fireplace Wi-Fi Controls With the fireplace now successfully paired Creating a Heat Program it can be controlled in the same manner as the remote controls (see page 15). Added capabilities like Sleep Timer and Heat Program are only possible when using the app. Figure 36: Heat Program - Step 1 Zone Controls Sync... -
Page 18: Wi-Fi Controls
Electric Fireplace Wi-Fi Controls Next, in the pop-up window select the desired The Heat Program is now set to turn the program settings: fireplace and heater on at 1:00PM every Wednesday to maintain a temperature of 20˚C until Switch - Turn fireplace on or off 6:00PM. -
Page 19: Warranty
Electric Fireplace Warranty Our electric fireplaces are to be free of defects in material and workmanship for one year from the date of purchase. This warranty only covers manufacturing faults. This warranty does not cover damages, accidents, lack of maintenance, abuse or neglect.
