- Page 1 EN User Manual | Washing Machine EW2F3048D2...
-
Page 2: Table Of Contents
WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. -
Page 3: Safety Information
SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. -
Page 4: Safety Instructions
• This appliance is designed for single household domestic use in an indoor environment. • This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels. -
Page 5: Electrical Connection
• Always take care when moving the • Connect the mains plug to the mains appliance as it is heavy. Always use safety socket only at the end of the installation. gloves and enclosed footwear. Make sure that there is access to the •... - Page 6 • Do not touch the glass door while a these spare parts are only available to programme operates. The glass can get professional repairers, and that not all hot. spare parts are relevant for all models. • Make sure that all metal objects are •...
-
Page 7: Product Description

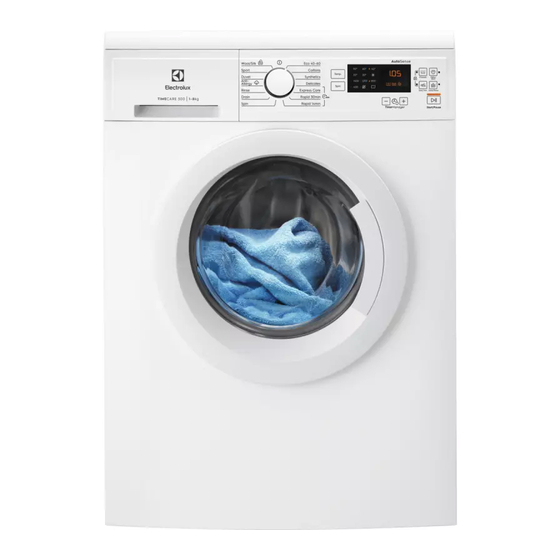

3. PRODUCT DESCRIPTION 3.1 Appliance overview 11 12 Worktop Drain hose Detergent dispenser Inlet hose connection Control panel Mains cable Door handle Transit bolts Rating plate Hose support Quick Reminder sticker Feet for levelling the appliance The rating plate reports the model name (A), product number (B),electrical ratings (C) and serial number (D). -
Page 8: Installation
Level of protection against ingress of solid particles and moisture ensured IPX4 by the protective cover, except where the low voltage equipment has no protection against moisture Water supply pressure Minimum 0.5 bar (0.05 MPa) Maximum 10 bar (1.0 MPa) Cold water Water supply Maximum Load... -
Page 9: Information For Installation
4. Remove the three transit bolts and pull CAUTION! out the plastic spacers. Make sure there is no damage to hoses and there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short. Contact the service centre for information on inlet hose replacement. - Page 10 The drain hose should stay at a height of no less than 60 cm and not more than 100 cm. You can extend the drain hose to maximum 400 cm. Contact the authorised service centre to buy the other drain hose and the extension. It is possible to connect the drain hose in different ways: min.600 mm max.1000 mm...
-
Page 11: Accessories
Connect the appliance to an earthed socket. 6. ACCESSORIES 6.1 Available in 6.3 Stacking kit www.electrolux.com/shop or from The tumble dryer can be stacked on the top authorised dealer of the washing machine only by using the correct stacking kit.. -
Page 12: Control Panel
WARNING! Do not put the tumble dryer under the washing machine. Verify the compatible stacking kit by checking the depth of your appliances. 7. CONTROL PANEL 7.1 Special features This appliance is designed with a self cleaning draining system, allowing light fluff Your new washing machine meets all modern fibers that fall off the clothes to be drained out requirements for an effective treatment of... -
Page 13: Multilingual Badges
7.3 Display The time area: • Programme time. • The alarm codes. Refer to the chapter “Troubleshooting” for their description. • The level of the Time Manager Delay start indicator. The Child Lock indicator. Door lock indicator: • It is on, you cannot open the door. •... -
Page 14: Programme Chart
8. PROGRAMME CHART Programme Reference Maximum Programme description Default tempera‐ spin speed load (Type of load and level of soiling) ture Spin speed Temperature range range Washing programmes Eco 40-60 1400 rpm 8 kg White cotton and fast-coloured cotton. Normally (1400- 400 rpm) soiled items. -
Page 15: Programme Options Compatibility
Programme Reference Maximum Programme description Default tempera‐ spin speed load (Type of load and level of soiling) ture Spin speed Temperature range range 1400 rpm 8 kg White cotton items. This high-performance wash Anti-Allergy (1400 - 400 program combined with steam vapour, removes 60 °C rpm) more than 99,99% of bacteria and viruses... - Page 16 Programme ■ ■ ■ ■ ■ ■ ■ Express Care ■ ■ ■ Rapid 30min ■ ■ ■ ■ Rapid 14min Spin ■ ■ Drain ■ Rinse ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Anti-Allergy Duvet ■...
-
Page 17: Options
9. OPTIONS 9.1 Temp. Set this option to change the default This option can increase the programme temperature. duration. Indicator = cold water. 9.4 Delay Start The indicator of the set temperature comes With this option you can delay the start of a programme to a more convenient time. -
Page 18: Settings
Touch Time manager button to reduce the programme duration according to your needs. The display shows the new programme duration and a number of dashes will decrease accordingly: suitable for a full load of normally soiled garments. ■ ■ ■ a quick cycle for a full load of lightly ■... -
Page 19: Before First Use
11. BEFORE FIRST USE 1. Connect the mains plug to the mains socket. 2. Open the water tap. During installation or before first use you 3. Put a small quantity of detergent in the may observe some water in the compartment for washing phase. -
Page 20: Filling The Detergent And Additives
12.2 Filling the detergent and additives Compartment for washing phase. If you use liquid detergent, put it immedi‐ ately before you start the programme. Compartment for liquid additives (fabric conditioner, starch). Maximum level for quantity of liquid ad‐ ditives. Flap for powder or liquid detergent. When you set a prewash programme (or option), put the detergent for prewash phase directly into the drum. -
Page 21: Setting A Programme
12.4 Setting a programme 1. Turn the programme knob and set the programme: • The indicator flashes. • The display shows the level of the Time Manager, the programme duration and the indicators of the phases of the programme. 2. If necessary, change the temperature and the spin speed or add available options. -
Page 22: Interrupting A Programme And Changing The Options
• When the countdown is completed, the programme starts automatically. The AutoSense System is not available with all programmes such as :Wool/Silk, You can cancel or change the set of the Rinse, Spin and programmes with short cycles. delay start before you press the . -
Page 23: Opening The Door When The Programme Operates
12.11 Opening the door when the • You must drain the water to open the programme operates door. To drain the water: While a programme operates, the appliance 1. If necessary, decrease the spin speed. If door is locked and the indicator is on. -
Page 24: Stubborn Stains
• Do not wash white and coloured items together. • Some coloured items can discolour with the first wash. We recommend that you wash them separately for the first couple of times. • Turn multilayered fabrics, wool and items with printed illustrations inside out. •... -
Page 25: Water Hardness
– there is large amounts of foam during • With adequate pre-treatment, stains and washing. limited soiling can be removed; the • When using detergent tabs or pods, laundry can then be washed at a lower always put them inside the drum, not in temperature. -
Page 26: Removing Foreign Objects
14.2 Removing foreign objects Always follow the instructions that you find on the packaging of the product. Make sure that pockets are empty and all loose elements are tied up before 14.5 Maintenance wash running your cycle. Refer to "The laundry load"... -
Page 27: Cleaning The Detergent Dispenser
Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface. Always obey the instructions that you find on the packaging of the product. 14.8 Cleaning the detergent dispenser ENGLISH... -
Page 28: Cleaning The Inlet Hose And The Valve Filter
14.9 Cleaning the inlet hose and the valve filter 45° 20° 14.10 Frost precautions WARNING! If the appliance is installed in an area where Make sure that the temperature is higher the temperature can be less than 0° C, than 0 °C before you use the appliance remove the remaining water from the inlet again. -
Page 29: Consumption Values
15. CONSUMPTION VALUES 15.1 Introduction See the web link www.theenergylabel.eu for detailed information about Energy Label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance. -
Page 30: Troubleshooting
Power consumption in different modes Off (W) Stand-by (W) Delay start (W) 0.50 0.50 4.00 Time to Off/Standby mode is 15 minutes maximum. 15.4 Common programmes These values are indicative only. Programme rpm 1) Litres hh:mm °C Cottons 2.450 80.0 4:05 52.00 85.0... - Page 31 With some problems, the display shows an alarm code and the Start/ Pause button may flash continuously: Problem Possible solution • Make sure that the water tap is open. • Make sure that the pressure of the water supply is not too low. For this infor‐ The appliance does not fill mation, contact your local water authority.
- Page 32 Problem Possible solution • Make sure that the drain hose is in the correct position. The hose may be posi‐ The appliance fills with water and drains immediately. tioned too low. Refer to "Installation instruction". • Set the spin programme. •...
-
Page 33: Environmental Concerns
17. ENVIRONMENTAL CONCERNS appliances marked with the symbol with Recycle materials with the symbol . Put the the household waste. Return the product to packaging in relevant containers to recycle it. your local recycling facility or contact your Help protect the environment and human municipal office. - Page 36 135965210-A-232023...
