User Notices For correct installation and operation, please read all instructions carefully. Before reading the instructions, please be aware of the following items: (1) Prohibit installing the wired controller at wet or sunshine places. (2) Do not knock, throw or frequently disassemble the wired controller. (3) Do not operate the wired controller with wet hands.
Wired Controller FSWC1 Owner's Manual 1.2 Instructions for Related Displayed Symbols Symbols Instructions Up and down swing function Left and right swing function Fresh air function Sleep function Auto mode Cooling mode Dry mode Fan mode Heating mode Health function...

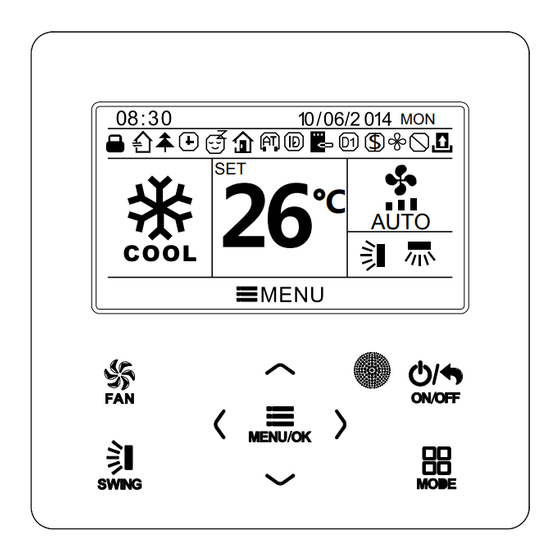

Wired Controller FSWC1 Owner's Manual 2 Buttons 2.1 Button Graphics Fig. 2 Button graphics 2.2 Function Instructions of Buttons Button name Button Function Set low speed, medium speed,high speed, turbo and auto speed. (1) Set temperature ∧ (2) Set parameter ∨...
Page 7
Wired Controller FSWC1 Owner's Manual Main menu User function menu Fresh air function setting Sleep function setting Health function setting I-DEMAND function setting Absence function setting Memory function setting Fixed-angle swing function setting Save function setting Auxiliary heat function setting...
Wired Controller FSWC1 Owner's Manual 3.2 On/Off When the wired control is on main page, press ON/OFF button to turn on the unit. Press ON/OFF button again to turn off the unit. The interfaces of On/Off status are shown in Fig. 4 and Fig. 5.
Wired Controller FSWC1 Owner's Manual 3.6 Swing Setting In unit on status, press SWING button for swing setting. Two swing modes are available: fixed-angle swing and simple swing. When fixed-angle swing mode is set, swing operation is as follows: In unit on status, press SWING button to select up&down swing .
Page 10
Wired Controller FSWC1 Owner's Manual AUTO AUTO Press SWING button to turn on or Press SWING button to enter swing turn off simple up&down swing setting status. and fixed-angle up&down swing. AUTO AUTO Press SWING button to turn on or Press “<”or “>”...
Wired Controller FSWC1 Owner's Manual 3.7 Functions Setting Press MENU/OK button on main page to enter main menu page. Press “∧” or “∨” or “<” or “>” button to select the function setting symbol. Then press MENU/OK button to enter user function setting page. Press “∧” or “∨” button to select specific function item.
Page 12
Wired Controller FSWC1 Owner's Manual 3.7.1 Fresh Air Function Setting After entering user function page, press “ ” or “ ” button to select fresh air function and press “ ” or “ ” button to turn on or turn off air function. Press MENU button to adjust the mode of fresh air.
Page 13
Wired Controller FSWC1 Owner's Manual 3.7.3 Health Function Setting After entering user function page, press “∧” or “∨” button to select health function and press “<” or “>” button to turn on or turn off health function with auto saving.
Wired Controller FSWC1 Owner's Manual 3.7.8 Save Function Setting After entering user function page, press “∧” or “∨” button to select save function and press “<” or “>” button to turn on or turn off save function. Press MENU button to enter save function setting page.
Wired Controller FSWC1 Owner's Manual 3.7.13 Air Function Setting After entering user function page, press “∧” or “∨” button to select Air Function and press “<” or “>” button to turn on or turn off air function. Press MENU button to adjust the mode of Air Function .
Wired Controller FSWC1 Owner's Manual 3.9 Current Error View When error occurs in the unit, error symbol will be displayed on the main page of wired controller to indicate that the unit is with error. In this case, you can enter error view page to view the current error.
Page 17
Wired Controller FSWC1 Owner's Manual Error Error Error Error Code Code Return air temperature sensor open/ Drive board communication error short circuited evaporator temperature sensor open/ Compressor overheating protection short circuited Indoor unit liquid valve temperature Indoor and outdoor units unmatched...
Wired Controller FSWC1 Owner's Manual Error Error Error Error Code Code Communication error between IDU and IDU network address error grid connection Communication error between ODU and Ip address allocation overflow grid connection Main error at grid connection side 3.10 Timer Setting The wired controller can set 6 kinds of timer: one time clock timer, everyday timer, one week timer, two week timer, countdown timer on and countdown timer off.
Wired Controller FSWC1 Owner's Manual ONCE 12:46 Fig. 12 Setting page of one time clock timer Note: If this timer function is turned on, when the unit is turned on or turned off, this timer function will be cancelled automatically.
Page 20
Wired Controller FSWC1 Owner's Manual After entering weekly timer setting page, press “<” or “>” button to select the day to be set. Then press MENU button to enter timer programming of that day. Press “<” or “>” button to select the item to be set. Press “∧” or “∨” button to adjust the content.
Wired Controller FSWC1 Owner's Manual 3.10.4 Two Week Timer The user can set the everyday timer content for two weeks. In each day, the user can set eight segments of timer content. The unit will execute corresponding timer setting in two weeks.
Page 22
Wired Controller FSWC1 Owner's Manual After entering timer on setting page, press “ ∧ ” or “ ∨” button to increases or decreases timer time by 0.5h. Press MENU button to save setting. Press BACK button to return to the last page. Please refer to Fig. 16.
Wired Controller FSWC1 Owner's Manual This timer function will be carried out for only once and then it will be cancelled automatically. Note: If this timer function is turned on, when the unit is turned on or turned off, this timer function will be cancelled automatically.
Wired Controller FSWC1 Owner's Manual CLOCK CLOCK FORMAT CLOCK SEARCH TIMER FUNCTION CLOCK LOCK CLOCK TIME : Fig. 19 Clock setting 3.12 Lock Setting Select lock symbol in menu page and then press MENU button to enter lock setting page. Press “∧” or “∨” button to select the item to be locked and then press “<” or “>”...
Wired Controller FSWC1 Owner's Manual 4.2 Installation Requirements (1) Prohibit installing the wired controller at wet places. (2) Prohibit installing the wired controller at the places with direct sunshine. (3) Prohibit installing the wired controller at the place near high temperature objects or water-splashing places.
Page 27
Wired Controller FSWC1 Owner's Manual Stick the soleplate of wired controller on the wall and then use screw M4×25 to fix soleplate and installation hole on wall together, attach the sponge 20×20×3 at the screw hole and then press it with fingers to make sure it’s attached firmly.
Page 28
Wired Controller FSWC1 Owner's Manual Only use the connection wire (fig. B) in the packing box of wired controller. Connect the terminal ② to the terminal ④ of patch cord which has been installed on the air conditioner; insert terminal ① to needle stand CN2 of wired controller.
