Product code:

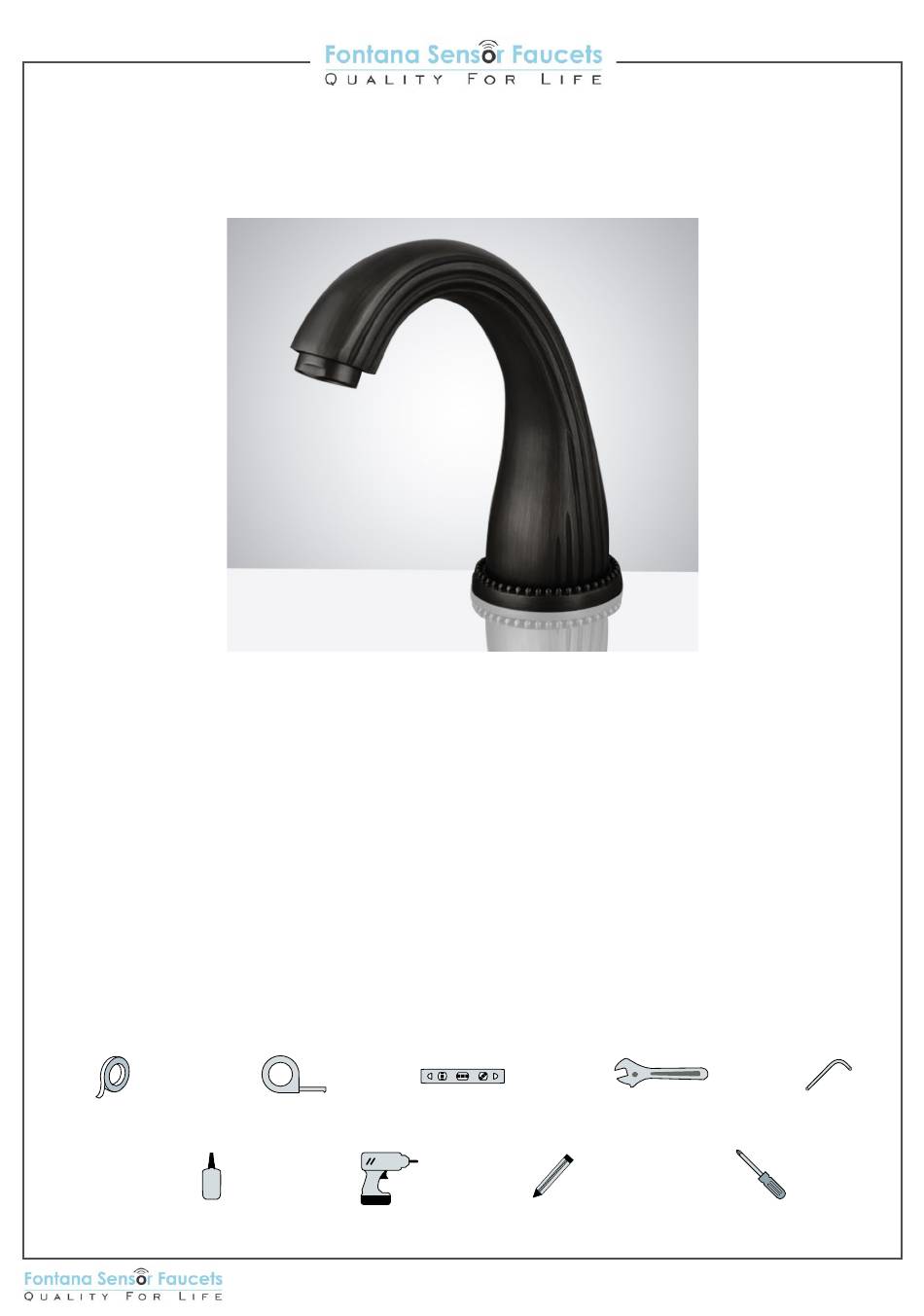

FS-5029RB
COMMERCIAL AUTOMATIC SENSOR HANDS FREE FAUCET
INSTALLATION INSTRUCTIONS
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanasensorfaucets.com
1
Customer Service: 800-684-4489
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FONTANA SENSOR FAUCETS FS-5029RB
Summary of Contents for FONTANA SENSOR FAUCETS FS-5029RB
- Page 1 Product code: FS-5029RB COMMERCIAL AUTOMATIC SENSOR HANDS FREE FAUCET INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations. Unpack and inspect the items for any shipping damages. If you find damages, do not install.
- Page 2 Hole Size Chart Faucet Deck Mount Installation Faucet Body Threaded Tube O ring Max counter top thickness without Pre-drilled hole size requirements: deck plate: Rubber Washer Washer Min: 1.26”/32mm - Max: 1.38”/35mm 1.38”/35mm Nut and locking bolts Deck Mount Type 1 Deck Mount Type 2 O ring Rubber...
- Page 3 Control Box Installation Instructions 3. Reinstall Battery Box & Control Box Cover Re-install the battery box cover, matching the alignment arrows together. Set the battery box back 5 inch into the control box, and re-assemble the control box cover using the previously removed screws ensuring they are all fully tightened.
- Page 4 Please wait approximately seconds after 4b. Mount the control box on the wall. Drill two 1/8" connecting the sensor cable for sensor calibration to (3mm) holes as shown, and push drywall anchors complete and to begin using the faucet. into each hole. Secure the control box to the wall with the drywall screws.
- Page 5 Battery (DC 6V) Only Control Box Normal Water Connection Hot & Cold Water Connection Battery (DC 6V) & AC 220V Control Box 1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the O-ring into the bottom groove of the faucet body. 2.
- Page 6 Battery Override Sensor Range In the event of a power failure, the sensor faucet will This sensor faucet can automatically adjust the automatically switch to battery-operated mode to inductive range within 10 seconds of electrification. ensure the faucet continues to function. The sensor Do not use inductor during this period so that the faucet can also operate on the battery alone if no inductor can automatically adjust to a suitable...
