Summary of Contents for InSite Pocket Reader

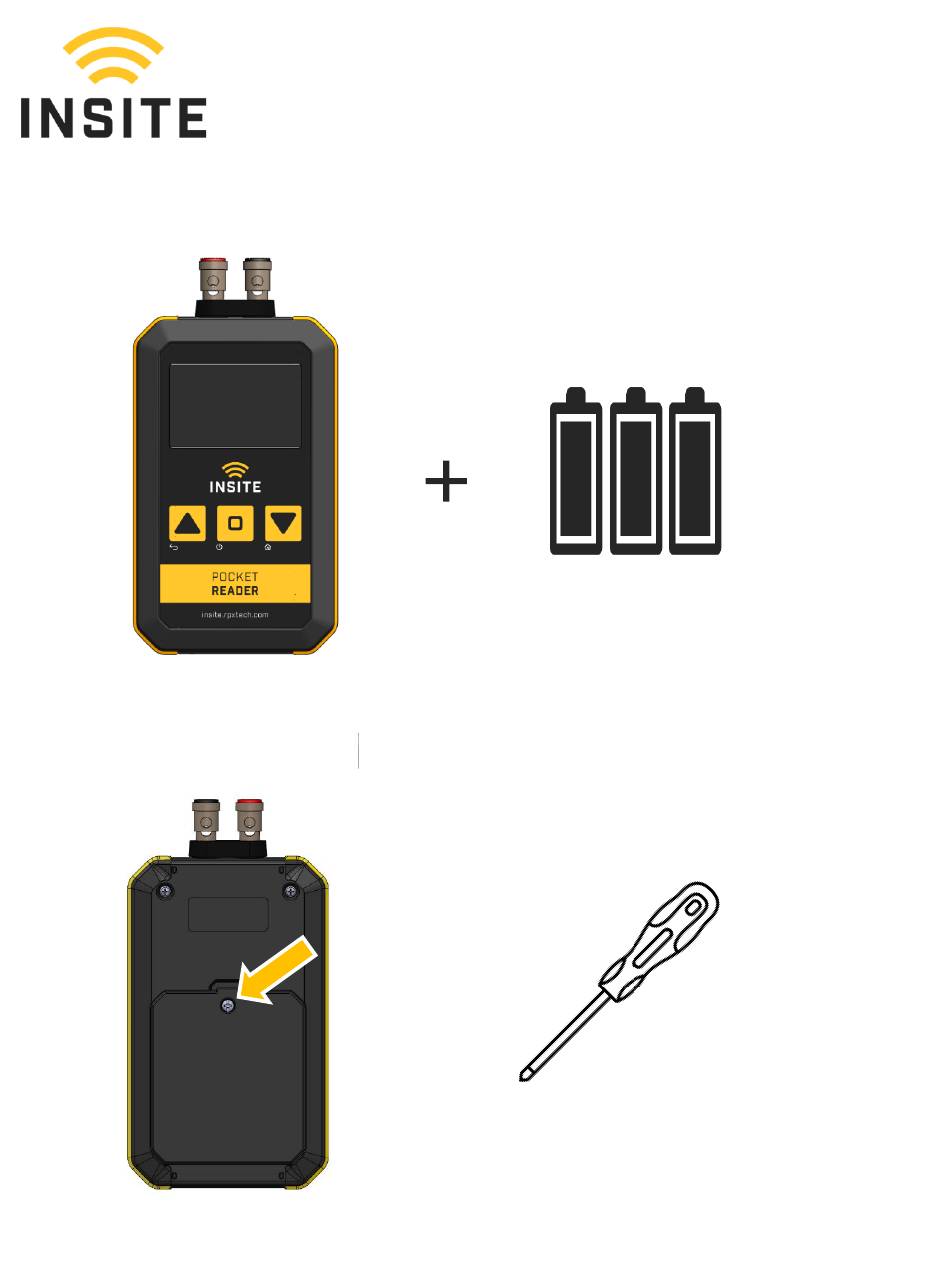

- Page 1 POCKET READER QUICK START GUIDE...
- Page 2 USING THE POCKET READER KEYPAD UP/DOWN ARROW KEYS ITEM SELECTION SELECT SUB MENU OPTIONS BACK BUTTON HOLD TWO SECONDS POWERING OFF/ON HOME SCREEN BUTTON HOLD UNTIL UNIT POWERS OFF/ON HOLD TWO SECONDS...
-
Page 3: Main Menu Navigation
HOLD UNTIL UNIT POWERS ON PRESS TO SELECT MAIN MENU MAIN MENU NAVIGATION WIFI CONNECTION Refer to the Pocket Reader WiFi Connection QSG document for detailed instructions on connecting your Pocket Reader to WiFi or to the Hotspot on your Phone. -
Page 4: Auto-Off Timer
AUTO-OFF TIMER Scroll to change Auto-off Timer. SELECT Press the Select Button to save. TEMPERATURE UNITS Scroll to change between Celsius & Fahrenheit. SELECT Press the Select Button to save. - Page 5 STATUS The Status screen displays battery voltage, Pocket Reader storage capacity and other connectivity values. SELECT SETUP The Setup option is a secondary way to connect your Pocket Reader to WiFi Refer to the Pocket Reader WiFi Connection QSG document for...
- Page 6 DATUM TEMPERATURE Datum change warning message. Do not change the datum temperature without discussing changes with your engineer of record! SELECT Notice: Limitations of the maturity method are: (1) the concrete must be maintained in a condition that permits cement hydration; (2) the method does not take into account the effects of early- Scroll to change Datum value up or down.
- Page 7 ABOUT The About screen displays the Pocket Reader serial number and the firmware version currently installed on the unit. SELECT FACTORY RESET Select Cancel to abort the Factory Reset and return to the menu. Selecting OK will reset the unit and remove all...
- Page 8 CONNECTING, STARTING & READING LOGGERS CONNECTING LOGGERS InSite logger wires are connected to the Pocket Reader. Red wire to the Post The Black wire to the Black Post To connect press down the appropriate post and insert the logger wire into the post hole.
- Page 9 STARTING A LOGGER When an un-started logger is connected to the Pocket Reader the current temperature will be displayed. To start the logger, press the Up Arrow key that is under the Play Icon SELECT Select OK to complete the starting process.
- Page 10 DOWNLOADING A RUNNING LOGGER When a running logger is connected to the Pocket Reader the Downloading Screen will be displayed until the logger data has been uploaded. When the current temperature is displayed this indicates that the upload is complete, and all new data has been transferred to the Pocket Reader.
