Summary of Contents for Nordson ARAG delta70t

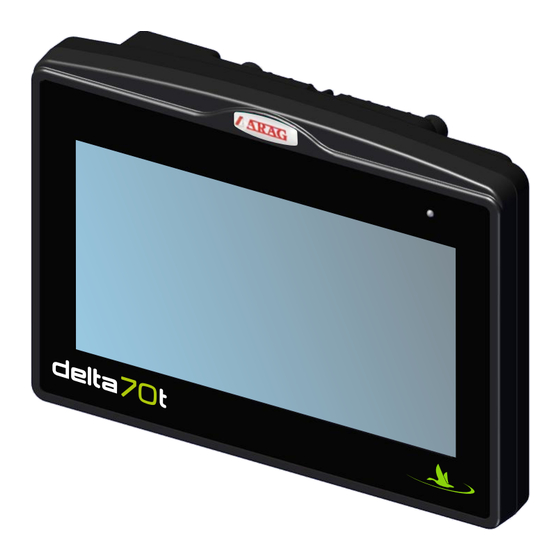

- Page 1 VIRTUAL TERMINAL ISOBUS WITH INTEGRATED GPS NAVIGATOR 46752XX INSTALLATION...
-
Page 2: Table Of Contents
LEGEND OF SYMBOLS LEGEND OF SYMBOLS • = Generic danger = Warning = IBX100 remote control unit = Virtual Terminal = Object Pool = Task Controller CONTENTS Risks and protections before assembly ..............................3 Intended use ........................................3 Precautions ........................................3 Package content ...................................... -
Page 3: Risks And Protections Before Assembly
INTRODUCTION • MANUAL USE MODES This manual contains information for installers. For this reason we have used technical terms without providing any explanations. THE INSTALLATION MUST BE CARRIED OUT BY AUTHORIZED AND SKILLED PERSONNEL ONLY. ARAG IS NOT RESPONSIBLE FOR ANY INSTALLATION CARRIED OUT BY UNAUTHORIZED OR UNSKILLED PERSONNEL. •... -
Page 4: Position On Farming Machine
INSTALLATION POSITION ON FARMING MACHINE Monitor position • Delta70t series monitor must be placed in the control cabin of the farming machine. Observe the following precautions: - Do NOT install the monitor in areas where it would be subjected to excessive vibrations or shocks, to prevent any damage or accidental use of the control keys;... -
Page 5: Power Supply Connection - Vt Mode With Isobus Socket And Auxiliary Input
INSTALLATION 6.2.1 POWER SUPPLY CONNECTION - VT MODE WITH ISOBUS SOCKET AND AUXILIARY INPUT The power source must be connected as indicated in Fig. 4. Connect the power cable directly to the battery (12 Vdc) using the suitable eyelets. 1800 1200 AUXILIARY INPUT... -
Page 6: Accessories
MAINTENANCE / DIAGNOSTICS / REPAIRS ACCESSORIES Pendrive The pendrive may be used to exchange data with the Delta70t monitor. Before use, format the pendrive in FAT 32 mode; make sure that it is not protected and can be read by the system. Most pendrives with up to 8 GB memory are compatible. -
Page 7: 10 End-Of-Life Disposal
END-OF-LIFE DISPOSAL Dispose of the system in compliance with the established legislation in the country of use. GUARANTEE TERMS 1. ARAG s.r.l. guarantees this apparatus for a period of 360 days (1 year) from the date of sale to the client user (date of the goods delivery note). - Page 8 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to the Internet address www.aragnet.com 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 http://www.aragnet.com info@aragnet.com...
