KARE 43078

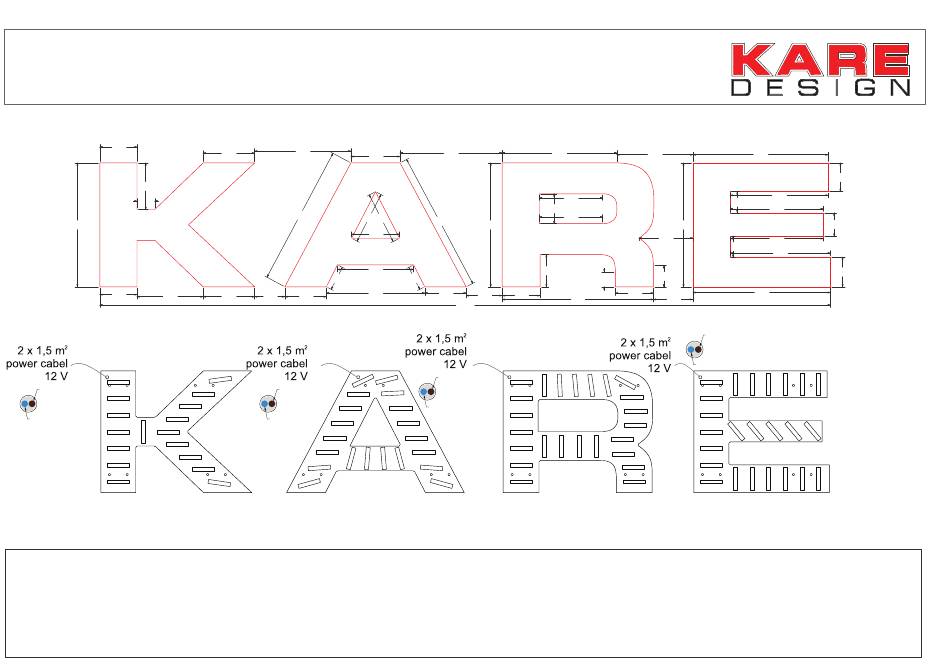

Set of KARE Logo Wall Letters
PAGE
50 cm height
150
188
72
500
150
267
For proper instalation refer to page 2
AC/L (Brown)
AC/N (Blue)
15 LED modules
KARE Dimmensions: W2950x H500mm
LED Light Modules : Baltled red S1
Luminous flux: 1888 lm, Consumption power: (43W)
Power supply: Meanwell 60W
(Input: 220/240V AC - Output : 12V DC)
INSTALLATION GUIDE
1
KARE Elements Open Back Meanwell 60WFace LED View
389
208
199
567
211
211
193
308
99
398
208
122
167
AC/L (Brown)
AC/N (Blue)
18 LED modules
412
463
256
120
256
567
500
130
99
167
145
153
611
2950
AC/L (Brown)
AC/N (Blue)
18 LED modules
308
546
396
85
376
500
218
376
85
405
85
60
153
555
160
AC/L (Brown)
AC/N (Blue)
19 LED modules
116
94
120
Advertisement
Summary of Contents for KARE design 43078
- Page 1 KARE 43078 INSTALLATION GUIDE Set of KARE Logo Wall Letters PAGE 50 cm height KARE Elements Open Back Meanwell 60WFace LED View 2950 For proper instalation refer to page 2 AC/L (Brown) AC/N (Blue) AC/L (Brown) AC/L (Brown) AC/L (Brown)
- Page 2 KARE 43078 INSTALLATION GUIDE Set of KARE Logo Wall Letters PAGE 50 cm height 162.5 18AWG AC/N(Blue) 16AWG AC/L(Brown) +V(Red) -V(Black) RECTIFIERS POWER & & SWITCHING RECTIFIERS FILTER DETECTION O.L.P. CIRCUIT CONTROL O.V.P.
- Page 3 KARE 43078 INSTALLATION GUIDE Set of KARE Logo Wall Letters 50 cm height PAGE Step 2 - Insert Power Cable in Step 1 - Installation elements (A) on the wall holes on the wall Element A Dowels Screwes not included...
- Page 4 KARE 43078 INSTALLATION GUIDE Set of KARE Logo Wall Letters 50 cm height PAGE Step 3 1. Face - Red Plexiglass Element B fixed in the Element B backside 5. Element B 2. Board - 100mm al. composit panels connected with face 3.
