PTEC A1 User Manual

Hide thumbs

Advertisement

Table of Contents

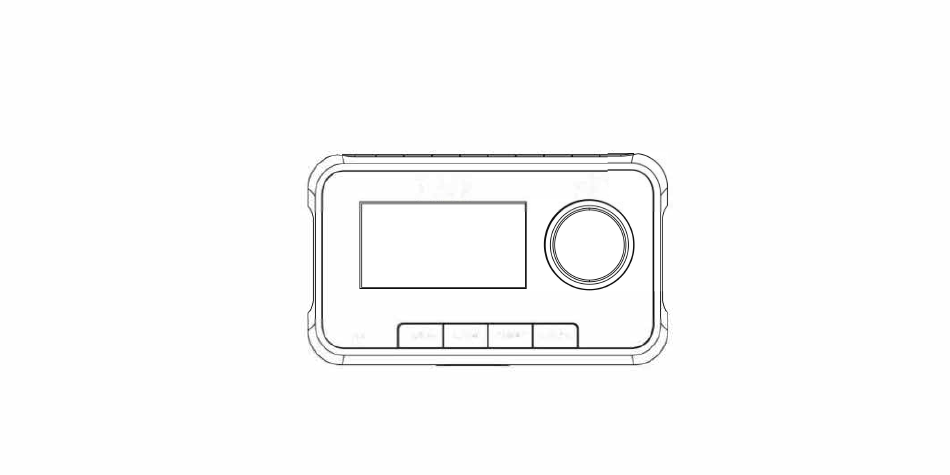

USER MANUAL
EN
PTEC Al
PTEe
►11/.I
� l!lok �
MENU
MOOE
PAESET
FM Tnt
Q
REV:00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for PTEC A1

  • Page 1 USER MANUAL PTEC Al PTEe ►11/.I � l!lok � MENU MOOE PAESET FM Tnt REV:00...

  • Page 2: Table Of Contents

    Table of Contents Warnings ................................................ 1 Function of buttons ..........................................2-4 Accessories ..............................................5 Installation of Adaptor .......................................... 6 Setting & Operations ..........................................6-13 Installation of Antenna .......................................... 13-1 9 Disposal..........................................2 0 Warranty ................................................
  • Page 3 Heat source, to avoid the damage to the product. Product Specifications: 1: Model No.: PTEC Al 2: DAB/DAB + Frequency: BAND ill (174.00 - 240.00Mhz) 3: FM Transmission Frequency: 87.5 -108Mhz 4: Audio Une: a: 3.5mm Aux in, b: Une Out 5: Power Supply: SV car charger 6: Size: 102 x 60 x31.5 mm...

  • Page 4: Function Of Buttons

    Function of Buttons 1: MENU Press to access menu settings PTEe ►11'/J 2: MODE -- Press to switch difference modes 3: PRESET -- Access and store radio station presets 4: FM Trx -- FM Frequency Transmission 5: � -- Select radio station(backward) 6: OK -- Confirmation �...
  • Page 5 Function of Buttons 9: 1-10 - - Number of radio station presets -- Power on / off 10: <!> - - Audio input 11: AUXIN 12: UNE OUT -- Audio output AUXIN LINE OUT...
  • Page 6 Function of Buttons 13: SVDCIN -- Mini USB socket 14: RESET Default setting 15: ANTEN NA - - DAB/DAB+ antenna interface RESET NTE NA 14 15...

  • Page 7: Accessories

    Adaptor and Accessories: 1: DAB/DAB+ Adapter 2: 12V/24V to SV USB interface car charger 3: Front Window Holder 4: DAB/DAB+ Antenna 5: 3.5mm Aux in cable USB Cable Note: All accessories are specially designed for the product,please do not use the cables or accessories from the third-party,otherwise it might damage to the product.
  • Page 8 Installation 1. Use the front window holder to stick the adaptor on the Dash board properly. 2. Connect the antenna to the antenna socket. (Note: A proper antenna installation is very important for signal receiving. Please see page9-10) Basic Operations 1.
  • Page 9 3. System MENU � / � In DAB mode, press and hold MEN U button to enter into system MEN U interface, press button to select: SYSTEM/Full Scan/ System Reset/ SW Version and press OK button to start setting. 3.1 SYSTEM setting 3.1.1 Brightness Press and Hold MEN U button to the system setting interface.
  • Page 10 Options: On, Off * Only available in areas which broadcast traffic information. 3.1.3 Power Down (Auto Power off) Select the length of time the DAB digital radio adaptor remains on before automatically shutting down after the unit stops receiving power. Options: OFF Smin,lOmin, lSmin 3.1.4 Button Light �...
  • Page 11 3.2 Stations Scanning Setting 3.2.1 Auto scanning Press and hold MEN U to system menu interface, Press � / � button to select Full Scan, Press OK button. lt will auto scan DAB/DAB + Radio stations and store in memory. When Scanning, lt will show the progress bar and number of the radio stations.
  • Page 12 MODE: Mode switch Press MODE button to switch between DAB/Aux in/Bluetooth mode. 5. Stations preset 5.1 Storing stations In DAB mode, select your favorite radio stations and long press the "Preset" button. lt will display "01:Empty", press � / � button to select the number you want to store from 1-10 .Press the OK button to confirm .lt will display "Stored Successfully"...
  • Page 13 Press the FM Trx button, lt will show "TX Freq: 87.SMhz", press the � / � 6. 2 button to select afrequency same to the "Null Frequency" of Car FM radio ,then press the OK button, the adaptor will transmit the FM radio to your car radio broadcasting system.
  • Page 14 1: Mode title: indicates that you are in Aux mode. 2: Audio out indicator: indicates if the digital DAB audio adaptor is broadcasting FM or using line out connection. 3: Battery indicator: indicates if battery is being charged, otherwise indicates battery level. UNE OUT: Connect the adaptor to the audio device with 3.5mm AUX IN cable you can listen to the radio program.

  • Page 15: Installation Of Antenna

    10. Bluetooth 10.1. Press MODE button to switch to Bluetooth mode. 10.2. Turn on the bluetooth of your device and search for pairing name DAB-1 10.3. Press DAB-1,once the bluetooth connecting successfully, the display will show connected. 10.4. Set the null frequency same as the FM radio in your car and you can stream the music from your device to 10.5.
  • Page 16 2. The DAS adaptor must not be positioned so that it interferes with or is in the path of airbag deployment. 3. The DAS adaptor must not obstruct your view of any of the controls or instruments in the vehicle. 4.
  • Page 17 Clean the windscreen at the point of location, prior to fitting the DAB adaptor. Please follow the instructions below for first-time installation of the digital DAB radio. lnstalling the Active Antenna Correct installation of active antenna is crucial for good DAB radio reception. The antenna should not obstruct the drivers view.
  • Page 18 Once a suitable location has been found for the antenna, the first step is to install the magnetic ground. Magne c Ground Spade connector Magnet The Magnetic ground must be affixed to a ferrous object, i.e. the vehicles body. Typically this is achieved by sliding the magnetic ground under the roof lining of the vehicle.
  • Page 19 Remove the adhesive backing from the antenna film and affix it 2.5cm from the A-pillar, as shown below. Choose location to mount DAB adaptor The DAB adaptor is supplied with a adhesive mount so you have the freedom to mount the adaptor in the location that suits your vehicle.
  • Page 20 lf you choose to mount the DAB radio adaptor on the center console position the DAB radio adaptor on an area which does not obscure any controls or instruments. 12-24 Aux In...
  • Page 21 Route the cabling to the DAB adaptor Route the antenna & power cables to the DAB adaptor, the cables can then be hidden behind the vehicle's plastic trim, or secured using the supplied adhesive cable clips. Connect the antenna to the DAB adaptor.

  • Page 22: Disposal

    Disposal lf have to dispose the device in the future, note that it should not be disposed with household waste. Bring it to a reception point for the recycling of electrical devices. Consult your local authority or retailer for recycling advice. DliPOHI Specifications subject to change without notice.

  • Page 23: Warranty

    Warranty terms The warranty period shall commence on the purchase date. Please keep your original receipt in a safe place. This is required as a proof of purchase. lf a material or production fault occurs in this product within 24 months of the purchase date, we shall - at our discretion - repair or replace the product free of charge.
