SIGNAL FIRE Sentinel-Turbine-DC Interface Manual

Sentinel node turbine
Hide thumbs

Advertisement

Table of Contents

Interface Manual
Sentinel Node Turbine

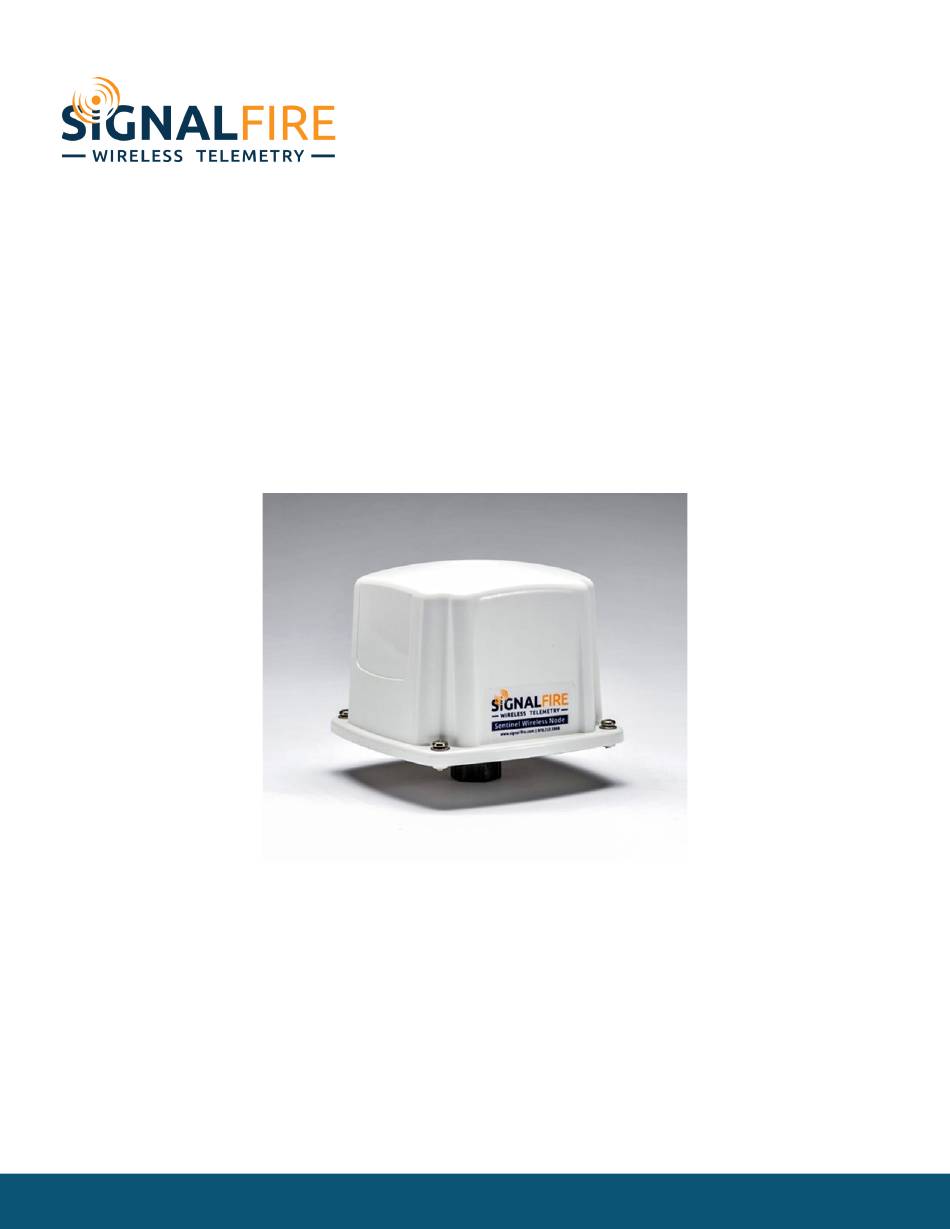

The SignalFire Sentinel Node is a device with the following features:
-
Frequency range 1Hz – 2kHz
-
Input Sensitivity of 30mV
-
32bit volume totalizer
-
Configurable K factor
-
Flow rate per hour calculation
-
Low power operation from an on board DC-DC power supply
-
Sends data to a SignalFire Buffered Modbus Gateway
-
Settable Modbus ID
Rev 1.7
SignalFire Model: Sentinel-Turbine-DC
SignalFire Telemetry
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sentinel-Turbine-DC and is the answer not in the manual?

Questions and answers

Summary of Contents for SIGNAL FIRE Sentinel-Turbine-DC

  • Page 1 Interface Manual Sentinel Node Turbine SignalFire Model: Sentinel-Turbine-DC The SignalFire Sentinel Node is a device with the following features: Frequency range 1Hz – 2kHz Input Sensitivity of 30mV 32bit volume totalizer Configurable K factor Flow rate per hour calculation Low power operation from an on board DC-DC power supply...

  • Page 2: Specifications

    Specifications Enclosure 3.5” tall × 5.0” wide × 5.0” deep Ingress Type 3 Power Source DC-DC converter Supply Voltage Range 9-36V DC Compliance Certified for use in Class I, Division 2 groups A,B,C and D. T4 FCC/IC Certified. Location Indoor and Outdoor use, Wet location Temperature Rating -40°C to +85°C Relative Humidity...
  • Page 3 Markings Device Label DC Converter Rev 1.7 SignalFire Telemetry...

  • Page 4: Connections And Components

    Connections and Components DC-DC Module Scan/Check-in Switch Config/Debug Connector Turbine sensor Connector Status LEDs Radio LEDs Radio LEDs The Radio TX LED (green) flashes each time a radio packet is sent. This LED will blink rapidly while searching for the radio network. The Radio RX LED (red) blinks on each received radio packet.
  • Page 5 Setup The nodes need to be set up for correct operation before being fielded. The configurable items include: Network selection Check-in period selection Thermocouple mode enable All settings are made using the SignalFire Toolkit PC application and a serial programming cable. WARNING: Perform the steps in this section (Setup) in a safe location only.
  • Page 6 Network Setting The network is set using the SignalFire Toolkit. The network, network group, and corporate ID/encryption key settings must match those of the gateway for them to communicate. Encryption To protect your over-the-air data and prevent tampering, SignalFire networks come with encryption. Legacy products use a Corporate ID, but can be switched over to use an encryption key if the firmware and ToolKit are up to date.

  • Page 7: Sensor Connections

    Sensor Connections Wiring Requirements Follow these guidelines when connecting sensors to the SignalFire node. See pictures for proper wire routing examples. Cables entering the enclosure must be run as pictured. DC power cable should be run through the cable gland and gland should be tightened. The DC-DC adapter wire must be routed through the cable hold-down clamp.
  • Page 8 Due to the small signal level generated by a turbine flow meter, the signal is susceptible to noise. To minimize this possibility mount the Sentinel close to the turbine pickup and always use shielded cable. Sensor cable should be routed as shown Rev 1.7 SignalFire Telemetry...
  • Page 9 Remote Modbus Register Mapping The Sentinel Node sends data to a SignalFire Telemetry Modbus Gateway. The data that is sent to the gateway is available at the gateway in registers where it can then be read by a Modbus RTU. Consequently, the node needs to have a unique (to the network it is in) Modbus slave ID which the gateway will use to store its unique data.
  • Page 10 Mounting and Care The unit comes with a watertight ½” NPT conduit fitting on the bottom mounting plate. The Sentinel is then directly mounted to the sensor with a short section of conduit. Tighten cover screws to . Do not use power tools. Anti-seize recommended. 8 in-lbs Direct Mount to Sensor with Short Conduit This mounting method uses a short conduit run from the sensor and the unit is held in place by the conduit.
  • Page 11 Cleaning Instructions The outside of the enclosure may be cleaned with water, mild soap, and a damp cloth as needed. High pressure washing is not recommended. WARNING: Electrostatic Discharge Hazard! Care must be taken to avoid the potential of creating a change on the enclosure or antenna. Do not wipe with a dry cloth. Do not brush against the enclosure with clothing or gloves.

  • Page 12: Product Disposal Information

    Product Disposal Information To ensure environmental safety and compliance, please follow these disposal instructions for the product and its components: Electronic Components: This product contains electronics that must be recycled through approved e-waste recycling programs. Electronics can contain harmful materials and should be prevented from entering landfills. Do not place electronics in regular trash.
  • Page 13 APPENDIX - FCC and IC Statements Changes or modifications not expressly approved by SignalFire Telemetry, Inc could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
