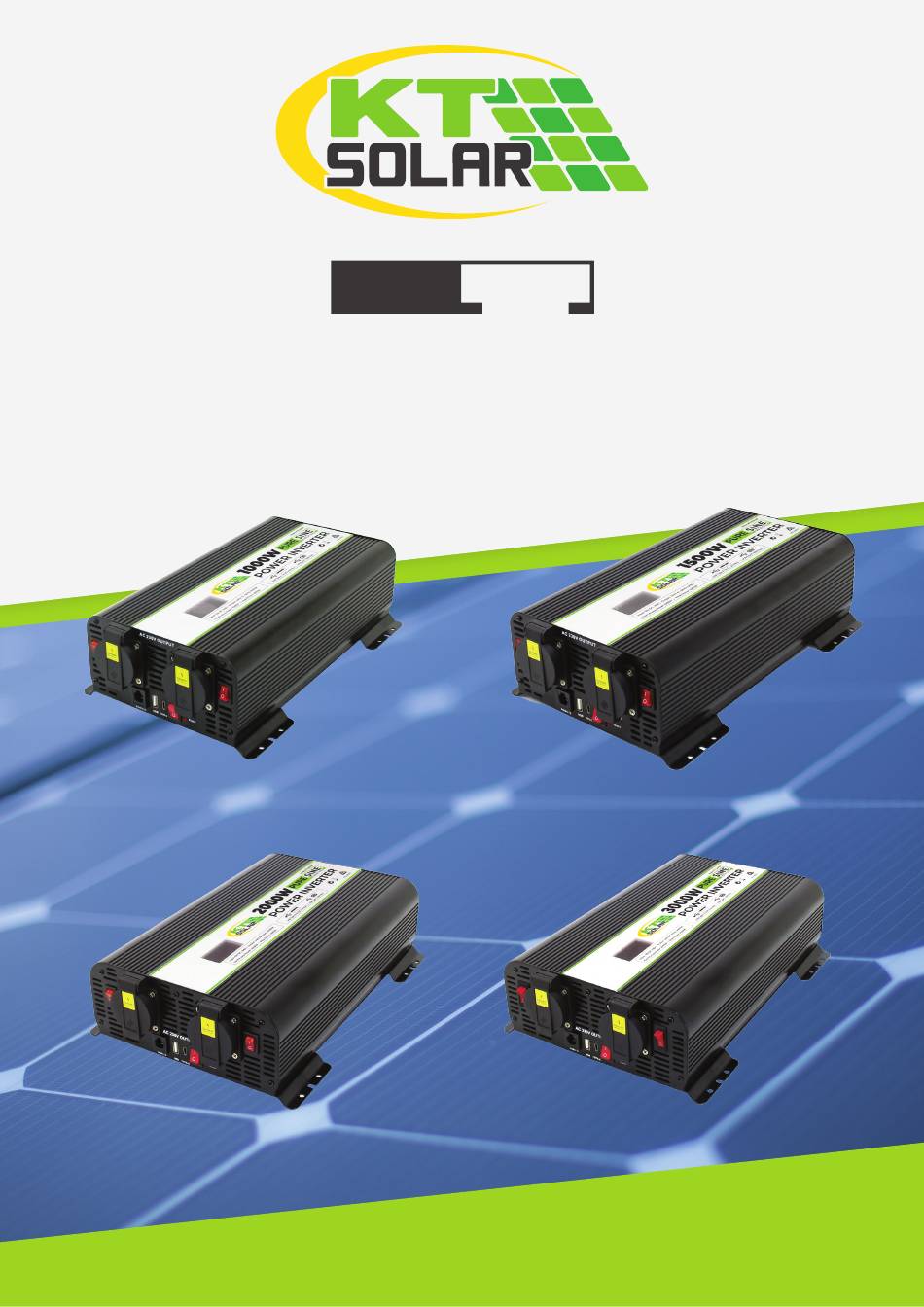

POWER INVERTERS

KTTS1000P, KTTS1500P,

KTTS2000P & KTTS3000P

1000W

KTTS1000P

2000W

KTTS2000P

PURE

SINE

W A V E

Model No.s

This manual contains important safety and operational

instructions. Please read carefully before using this product.

1500W

KTTS1500P

3000W

KTTS3000P

USER MANUAL

IS561 Issue 1 18.07.2023

Table of Contents

Need help?

Do you have a question about the KTTS1000P and is the answer not in the manual?

Questions and answers

Summary of Contents for KT SOLAR KTTS1000P

Page 1 PURE SINE W A V E POWER INVERTERS Model No.s KTTS1000P, KTTS1500P, KTTS2000P & KTTS3000P 1000W 1500W KTTS1000P KTTS1500P 2000W 3000W KTTS2000P KTTS3000P USER MANUAL This manual contains important safety and operational IS561 Issue 1 18.07.2023 instructions. Please read carefully before using this product.
Page 2 Featuring mutliple levels of saftey protection including overload, short-circuit, and over temperature, over voltage shut down, input under voltage shutdown and input under voltage alarm. KT Solar Pure Sine Wave Power Inverters are a safe solution for 240V power access whilst on the road.
Page 3: Safety Information
USER MANUAL SAFETY INFORMATION • Do not expose the units to water, snow, spray or dust. To reduce the risk of a fire hazard, do not cover or obstruct the ventilation openings and do not install the inverter in a zero-clearance area.
Page 4 USER MANUAL COMPONENTS FOR 1000W/1500W INVERTERS (KTTS1000P/KTTS1500P) AC Socket Power (Green) Fault (Red) USB Ports (Type A + C) On / Off Switch Remote Port DC Input ( + ) Red 8-Ø5 DC Input ( - ) Black Cooling Fan...
Page 5: Operating The Remote Control
USER MANUAL COMPONENTS FOR 3000W INVERTER (KTTS3000P) 221.5 AC Socket Power (Green) Fault (Red) 465.4 USB Ports (Type A + C) On / Off Switch Remote Port DC Input ( + ) Red DC Input ( - ) Black 8-Ø6 Cooling Fan Grounding LCD Display...
Page 6: Operational Instructions
USER MANUAL INSTALLATION & OPERATIONAL INSTRUCTIONS WARNING: Ensure that all DC connections are tight. Loose connections will cause overheating and potential hazard. Also, only use high quality copper wire and ensure cable is a suitable length for application. VENTILATION: To allow an effective heat dissipation, power inverter must be positioned as displayed in the right figure to ensure that the cooling fan performs effectively.
Page 7 USER MANUAL 3. Control method for cooling fan: thermal control. 4. Using extended cable to battery • We do not recommend using extended cable between the inverter and the battery, because it will cause loss of DC electricity and affect the performance of the inverter. •...
Page 8: Specifications
USER MANUAL SPECIFICATIONS DESCRIPTION MODEL KTTS1000P MODEL KTTS1500P RATED INPUT DC 13V INPUT OPERATING VOLTAGE RANGE DC 11V - 15V OUTPUT VOLTAGE AC 240V OUTPUT FREQUENCY 50Hz +/- 0.5Hz USB OUTPUT DC 5V, 2100mA, Type C: 18W Maximum OUTPUT CONTINUOUS POWER...
Page 9 USER MANUAL SPECIFICATIONS DESCRIPTION MODEL KTTS2000P MODEL KTTS3000P RATED INPUT DC 13V (@12V Inverter) INPUT OPERATING VOLTAGE RANGE DC 11V - 15V (@12V Inverter) OUTPUT VOLTAGE AC 240V OUTPUT FREQUENCY 50Hz +/- 0.5Hz USB OUTPUT DC 5V, 2100mA, Type C: 18W Maximum OUTPUT CONTINUOUS POWER 2000W...
Page 10: Troubleshooting & Faqs
USER MANUAL TROUBLE SHOOTING FAQs 1. Q: Why does the inverter turn itself off? A: If the inverter’s audible alarm sounds and a fault L.E.D illuminates, this indicates that there is a fault or error, and the inverter may turn off. Most commonly this would be caused by an appliance that is drawing too much power (overloading), low battery voltage or voltage drop due to insufficient size cables or poor connections (refer to ‘Faults &...
Page 11 USER MANUAL TROUBLE SHOOTING FAQs CONTINUED 5. Q: Why does the fan only operate sometimes? A: Our inverters feature a temperature controlled automatic cooling fan that only operates when needed. This allows the inverter to run very quietly for most of the time. 6.
Page 12: Voltage & Temperature Performance
USER MANUAL VOLTAGE & TEMPERATURE PERFORMANCE CARE & MAINTENANCE 1. Ensure the fan vents are not blocked 2. Use a vacuum cleaner to remove any dust from the fan area 3. When cleaning the case or front panel, use a soft and dry cloth only 4.
Page 13: Accessories Included
USER MANUAL ACCESSORIES INCLUDED 6 Core (28AWG) Crystal Grounding PVC Cable with Red (+) & Black Leads Head Telephone Line Lead 5A Nickel Plated Clamp with Brass Eye Terminals 6m Length 1000mm length 480mm Length 1000W - 10mm Cable 1500W - 16mm Cable 2000W - 22mm Cable...
Page 14 USER MANUAL NOTES...
Page 15: Warranty Statement
USER MANUAL WARRANTY STATEMENT Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic.,telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of one (1) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked...
Page 16 CONTACT US We take our products and feedback seriously. Should you have any questions relating to the quality of our products, or require any technical support, please reach out to our team at the following: Brown & Watson International Pty. Ltd. 1500 Ferntree Gully Road, Knoxfield, Victoria 3180 P: 03 9730 6000...

This manual is also suitable for:

Ktts1500p Ktts2000p Ktts3000p
