Fluke BC430 Instruction Manual

Battery Charger /
Power Adapter
Instruction Sheet
Specifications
Universal switchable adapter 115 V ±10% or 230V
±10%.
115V Switch position is suitable for use on 100V ±10%
mains systems when used with Fluke-43x/006 only.
Line frequency: 50 and 60 Hz
Output voltage: 17.8 V
Output current: 840 mA.
Output plug: 5-mm power jack per DIN 45232.
Plus (+) voltage connected to outer contact of the 5-
mm power jack.
Operating temperature: 0 to +40 °C (32 °F to 104 °F).
Safety
600 V Measurement Category IV, Pollution Degree 2,
protection class II (double insulation), per:
EN61010-1 2nd edition
CAN/CSA-C22.2 No. 1010.1
June 2004
© 2004 Fluke Corporation. All rights reserved.
Printed in The Netherlands. All product names are trademarks of their
respective companies.
®
International electrical symbols used are explained below.
BC430
Operation
Please read these instructions carefully before using the
Battery Charger/Power Adapter BC430.
To avoid electrical shock or fire, use the Battery
Charger/Power Adapter BC430 only as
replacement part if the BC430 is specified for
your Fluke instrument.
Use the supplied line plug adapter with this
instrument only.
To avoid electrical shock, connect the Battery
Charger/Power Adapter to the AC outlet before
connection to your Fluke instrument.
The Battery Charger/Power Adapter operates the
Fluke instrument from local line voltage.
Do not open the BC430, it is not serviceable.
The BC430 accommodates connection to various line
voltages, line frequencies and line power sockets
worldwide.
Therefore the adapter is equipped with a female plug that
must be connected to a line cord or line plug adapter
appropriate for local use. Since the adapter is double
isolated, the line cord or line plug adapter does not need
to be equipped for connection to protective ground.
Anyhow line cords with a protective grounding terminal
may also be used.
The Battery Charger/Power Adapter BC430 is equipped
with a switch, which allows selection of the voltage range.

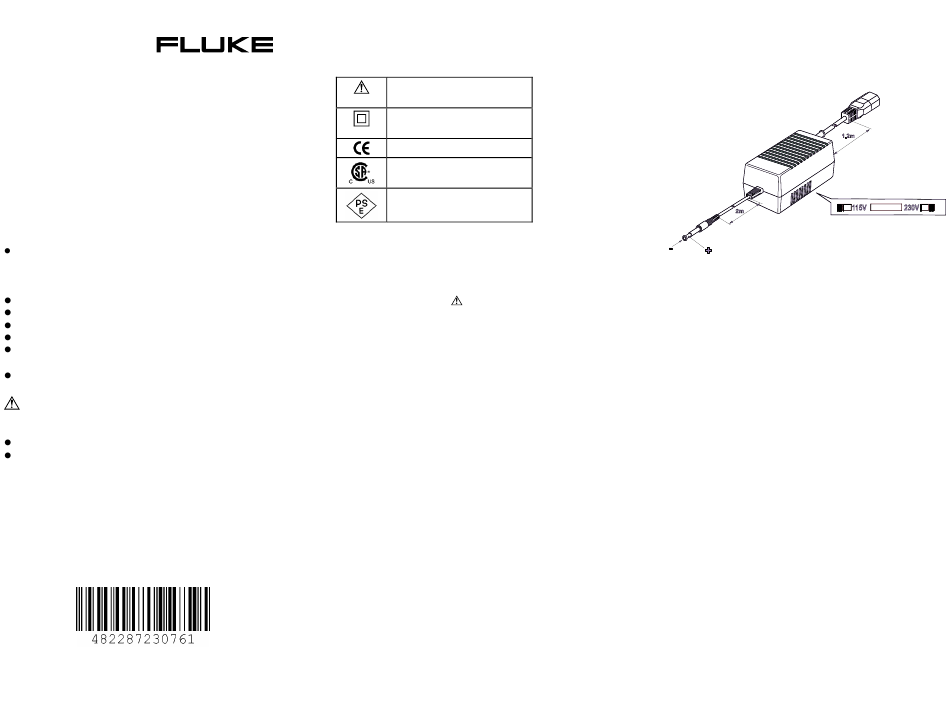

Symbols
See explanation on
Instruction Sheet
DOUBLE INSULATION
(Protection Class)
Conformité Européenne
Safety approval USA /
Canada
Safety approval Japan
Warning
Before use, check that the selected range matches the
local line power voltage and frequency.
The BC430 includes a compact USA line plug adapter.
aution
C
For use in the U.S.A., the voltage selector must
be placed in the 115V position. For use in other
countries than the U.S.A., the voltage selector
may need to be placed in other than the 115V
position (see Figure 1).Confirm the voltage
available before you connect the BC430 to the
mains.
For connection to the mains outlet, use a power
cord or line plug adapter that complies with
national standards.
Limited Warranty & Limitation of
Liability
Each Fluke product is warranted to be free from defects in material and
workmanship under normal use and service. The warranty period is one
year and begins on the date of shipment. Parts, product repairs and
services are warranted for 90 days. This warranty extends only to the
original buyer or end-user customer of a Fluke authorized reseller, and
does not apply to fuses, disposable batteries or to any product which, in
Fluke's opinion, has been misused, altered, neglected or damaged by
accident or abnormal conditions of operation or handling. Fluke warrants
that software will operate substantially in accordance with its functional
specifications for 90 days and that it has been properly recorded on non-
defective media. Fluke does not warrant that software will be error free or
operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused
products to end-user customers only but have no authority to extend a
greater or different warranty on behalf of Fluke. Warranty support is available
if product is purchased through a Fluke authorized sales outlet or Buyer has
paid the applicable international price. Fluke reserves the right to invoice
Buyer for importation costs of repair/replacement parts when product
purchased in one country is submitted for repair in another country.
