IQShare

Wireless Presentation System

WP40

——User Manual——

Table of Contents

Need help?

Do you have a question about the IQShare WP40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Returnstar Interactive Tech IQShare WP40

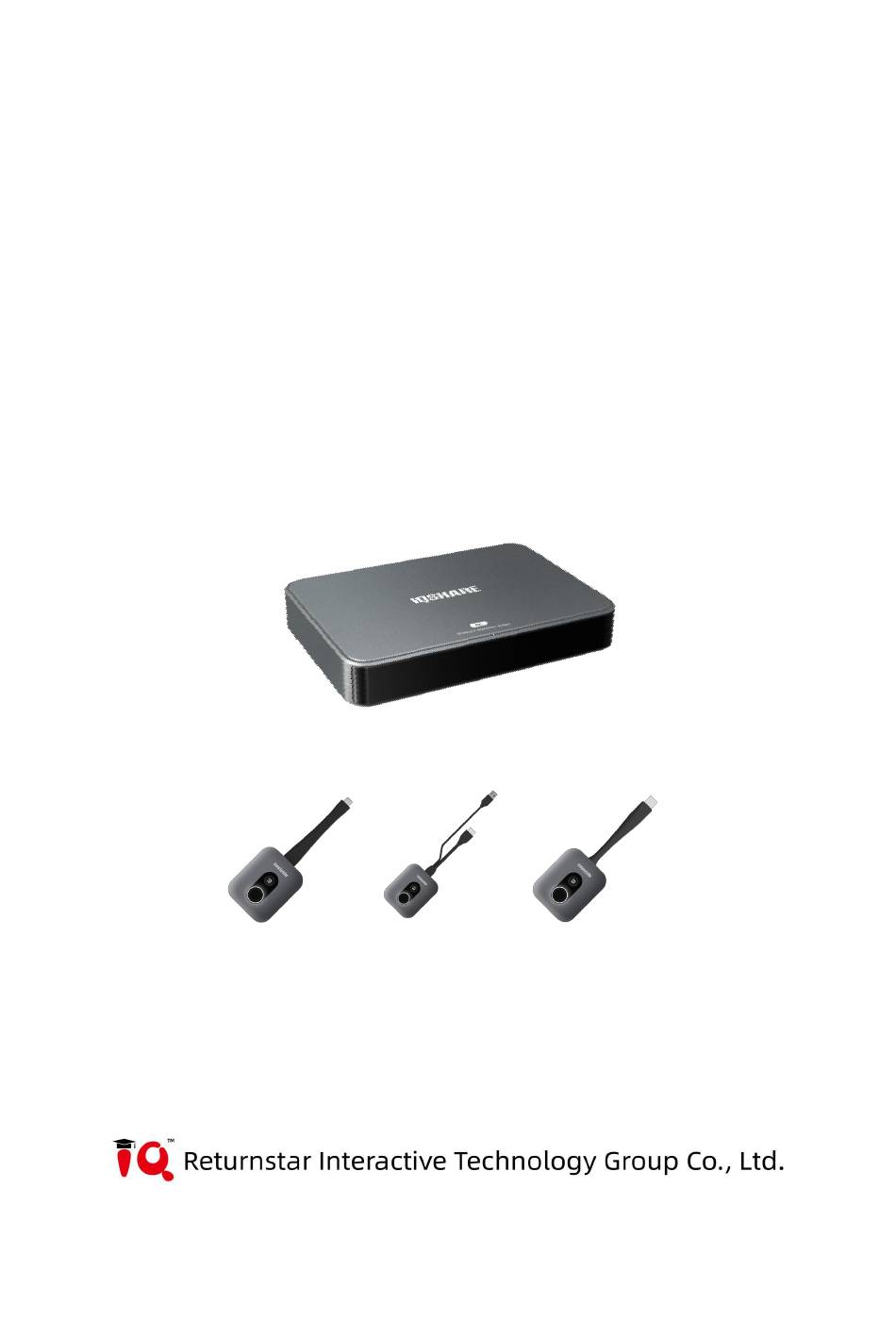

Page 1 IQShare Wireless Presentation System WP40 ——User Manual——...
Page 2: Table Of Contents
Content 1. Introduction .........................3 1.1 Product Features ......................3 1.2 Overview ........................4 1.3 Specification ........................5 2. System settings ........................9 2.1 Home Page Introduction ....................10 2.2 Reset factory mode ....................10 2.3 Network settings .......................11 2.4 Change wallpaper (for 2 themes) ................12 2.5 EShare Settings ......................
Page 3: Introduction
1. Introduction IQShare Wireless Presentation system is composed of IQShare box and dongle for the wireless screen content sharing and control from mobile devices such as smartphones, tablets, laptops to the displays such as TVs, interactive screen displays and so on. 1.1 Product Features ...
Page 4: Overview
Support whiteboard and annotation.   Customized home screen wallpaper. 1.2 Overview ①Audio: 3.5mm audio out the BYOD casting screen sound to external speaker or earphone. ②LAN: 100M network port, enable the WP40 to connect to the Internet.
Page 5: Specification
③HDMI out: HDMI 1.4 out port, connect to the room screen for casting contents. ④USB: Touch control port or dongle pairing port. ⑤USB: Touch control port or firmware upgrade port (by usb disk). ⑥DC Power Jack: DC5V, 2A power supply port. ⑦Reset: Reset factory mode port.
Page 6 Audio Stereo, Radio quality 16bits 48KHz Wireless Transmission Band 2.4 GHz & 5 GHz (dual band WIFI) Wireless Transmission Protocol IEEE 802.11 a/b/g/n Data rate Wireless Up to 800Mb Authentication Protocol WPA2-PSK(Pre-Share Key) Security(encryption) Windows7/8/10, Mac OS, Chrome OS, Android, Linu Support OS x, IOS 8.0 and above Receiving Distance...
Page 7 Name IQShare Button Gen 2 Model 10 Points (Linux, Windows, Chrome) Touch Back Control Mouse Mode(Mac) Wireless transmission protocol IEEE 802.11 a/b/g/n Wi-Fi standard 2.4 GHz & 5 GHz BYOD mode：Up to 4K 30FPS Input resolution BYOM mode：Up to 720P 30FPS DP 1.2, Video Standard eDP 1.4...
Page 8 Name IQShare Button Gen 2 Model 10 Points (Linux, Windows, Chrome) Touch Back Control Mouse Mode(Mac) Wireless Transmission Protocol IEEE 802.11 a/b/g/n Wi-Fi standard 2.4 GHz & 5 GHz BYOD mode：Up to 4K 30FPS Input resolution BYOM mode：Up to 720P 30FPS Video Standard HDMI 1.4 Audio rate...
Page 9: System Settings
Name IQShare Button Gen 2 Model 10 Points (Windows) Touch Back Control Mouse Mode(Mac) Wireless Transmission Protocol IEEE 802.11 a/b/g/n Wi-Fi standard 2.4 GHz & 5 GHz Input Resolution BYOD mode：Up to 4K 30FPS Video Standard Audio Rate 16bit 44KHz Authentication Protocol WPA2 Personal（WPA2-PSK）...
Page 10: Home
2.1 Home Page Introduction 2.2 Reset factory mode Setting->System->Reset options->Erase all data(factory reset)
Page 11: Network Settings
Select: Erase all data. RESET PHONE.-> ERASE EVERYTHING. 2.3 Network settings...
Page 12: Change Wallpaper (For 2 Themes)
WIFI： Ethernet: (LAN port needs Ethernet access) Hotspot: password could be changed. Hotspot: 2.4GHz & 5GHz (default using 5GHz) 2.4 Change wallpaper (for 2 themes)
Page 13: Eshare Settings
Better use 1920*1080 PNG format picture as your new wallpaper: Both theme1 and theme2 are using your new wallpaper.(Android home wallpaper). One click to switch between 2 themes: 2.5 EShare Settings...
Page 14 Device Name is the cast target name of the WP40 device. Connection Mode: Device Name/ PIN code 6 digits / PIN code 8 characters. Device name mode : No password. PIN code 6 digits: Setting password for casting verification, password is 6 digits.
Page 15 PIN Code Refreshing Interval: PIN code could auto change by a certain time interval to ensure the casting safety. Device Name Floating Window: Device name of WP40 would show by a floating bar over all pages if enabled. Multiple Screens: at most we support 4 split screens casting at the same time.
Page 16 In multiple split-screen mode, you can control the audio and touch of the split-screen only when you cast the screen from a computer. The screen casting from a mobile phone does not support touch and audio control function. Show device name on the screen: means device name would be showed over the left corner of the WP40 screen when casting.
Page 17: Activate The Eshare
Auto full screen is used to self-adapt to full screen when the resolution rate is not 16:9. 2.6 Activate the EShare EShare is activated by default. But if you enter factory mode and erase all data, EShare needs to be reactivated by connecting to the Internet (wifi or Ethernet both works).
Page 18: Moderator Control Center
Display Group is for copy the casting screen to other screens under the same LAN. The number of screens supported depends on the LAN network performance. 2.8 Moderator Control Center 【Share Screen or File】: All allowed: means all participants are allowed to share screens or files. Need authorization: means all participants need to be authorized by the moderator before casting their screens or files.
Page 19 View only: means all participants could view the reverse screen but could not control or do wireless annotation. Need authorization: means all participants need to be authorized before view,control or annotation by the reverse screen. Disable: means all participants cannot use the reverse screen to view or control or doing wireless annotation.
Page 20: Whiteboard
We suggest to set “Share Screen or File” as “Need authorization”,set “View,Control and Wireless Annotation” as “View only” so that all participants could view the screen but cannot control the screen, all casting need authorization by the moderator. 2.9 WhiteBoard Click the icon to open Whiteboard: Pen: Color、Size、Shape are all changeable.
Page 21 Eraser: support Palm eraser or one click to clear all. Map: control the size of the map you are drawing.
Page 22 Editor: frame the content you want to edit, and then you could delete、 copy or extend. Text: input the text on the whiteboard. Tool button: hide or extend the tool bar.
Page 23 Background color: change the background color as you want. Settings: Palm eraser switcher: control the function of palm eraser. Muti-point writing: control muti-touch function. Auto save file and interval: auto save the file at a certain time interval to avoid losing important content.
Page 24: Byod
3. BYOD BYOD means bring your own device. IQShare supports abundant BYOD solution to cast your personal screen including: Dongle cast,App cast, Protocol cast,Webcast. 3.1 Dongle cast There are 3 types of IQShare dongle available for choice: Type-C Dongle, HDMI Dongle and USB Dongle.
Page 25  When the main button stops flashing and keeps a white light, it means the dongle has been paired with WP40 successfully. (WP40 also show: paired successfully)  If pairing is unsuccessful, the main button would keep flashing a red light. ...
Page 26 Main button & screen casting:  Use the USB port to pair USB dongle with WP40, main button shows :“flashing white light”means dongle is pairing with the WP40.  When main button stop flashing and “keep white light”, means dongle has paired with WP40 successfully.
Page 27 Exclusive full screen: One click to take up the full screen when more than one screens are casting at the same time. Extended & duplicated screen: One click to switch the casting screen between extended screen and duplicated screen. Mute: One click to mute or unmute the casting screen. Shortcut key: Customizable quick key, for example: Ctrl+C,Ctrl+V.
Page 28  Tap screen share button to start sharing. If you cannot find the driver after connected, open "my computer" to check the driver: ScreenShare. Double click the driver to open the software settings. 【Light Indicator】 Please refer to the table below for detailed descriptions of the button's indicator and status.
Page 29: App Cast
LED BLINKING MODE STATUS Solid - Purple Button Initialization Solid - White 1. Pairing Successful 2. Screen Casting Blinking - White Pairing in Progress Solid - Red Screen Casting Failed Blinking - Red Pairing Failed 3.2 APP Cast Application support Windows, Android, Mac OS, iOS, iPadOS, Chrome,Ubuntu etc. Application download link: https://eshare.app/# 3.2.1 PC application guidance-Windows...
Page 30 Firstly connect your PC to the hotspot of WP40 or to the same wifi of WP40. Choose the target device you would like to cast and connect.(according to device name or IP) One click to cast your full screen、app window or extend screen. TV Mirror: Share the screen of the room display to all the participants, under moderator mode it's suggested to set “Share Screen or File”...
Page 31: Protocol Cast
“View,Control and Wireless Annotation” as “View only” to allow all participants to view the screen without control access. 3.2.2 Mobile application guidance-Android  One Click the “Share Screen” to cast screen to WP40 under LAN.  One Click the “TV Mirror” to fetch content from the big screen shared by others. ...
Page 32  Enable Airplay,connect iPhone or MacBook to the same wifi or hotspot of WP40.  Choose the WP40 device you would like to cast.  One click to cast.
Page 33 【DLNA】  Enable DLNA,connect your Android or Windows device to the same wifi or hotspot of WP40.  Choose the WP40 device you would like to cast.  One click to cast.  *DLNA is normally used in video applications. 【Chrome cast】...
Page 35: Webcast Of Eshare
3.4 Webcast of EShare Webcast is well known for sharing your screen through Internet without the limitation of local area network. No matter where you are, as long as your PC connects to the Internet and your PC is with a browser, you could cast your screen to remote WP40 with assigned ROOM ID.
Page 36 Enter One-time PASSWORD：(Valid within 2 minutes) Select the Windows you want to cast,and choose whether to share audio:...
Page 37: Byom
During casting: you could pause cast, stop cast or disable system audio casting. 4. BYOM BYOM stands for Bring Your Own Meeting. It allows users to wirelessly use in-room audio-visual devices like camera, microphone, speakers directly connected to WP40 through USB. Note: Only IQ devices are for sure compatible with WP40 for the BYOM solutions, other brand USB devices need extra testing.
Page 38 1. Connect AVS200 to WP40. 2. Power on WP40, pair C4/H3 dongle with WP40. Connect C4/H3 dongle to PC. Open the conference software of PC and adopt the USB camera\microphone wirelessly, if you need the speaker, casting your screen to use the speaker Recommended solution 2: WP40+HY200+C4/H3 dongle 1.
Page 39: Firmware Upgrade
Conference microphone should select “BYOM Microphone” to wirelessly use the microphone connected with WP40. Conference speakers should select “BYOM Audio” to wirelessly use the speakers connected with WP40 while casting screen. 5. Firmware Upgrade When a new/customized version firmware is released, or upon special after-sale request, we need to reload the Firmware:...
Page 40  Prepare a FAT32 Format USB Disk.  Load the latest FW “update.zip” to the root directory of the USB Disk.(Do not unzip FW file, latest FW could turn to technical team.)  Connect USB disk to the USB port of WP40 near the HDMI port. ...
