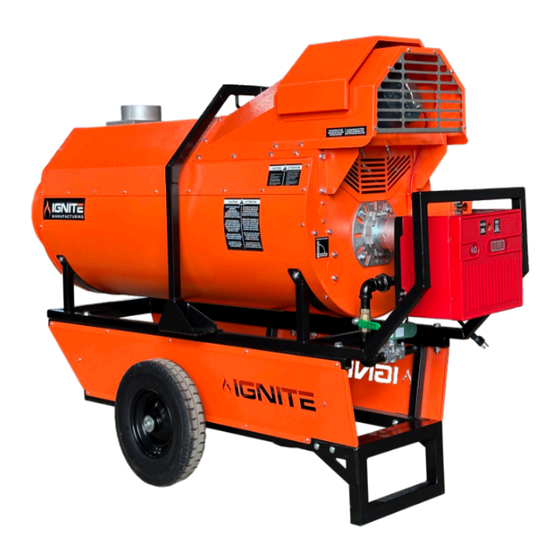

- Page 1 HD-400(R) INDIRECT FIRED SPACE HEATER HD-400 HD-400R STANDARD MODEL RECIRCULATING MODEL USER INSTRUCTIONS MANUAL PLEASE RETAIN THIS DOCUMENT FOR FUTURE REFERENCE IGNITE MANUFACTURING COMPANY INC. IgniteMfgInc.ca 705 21 Ave, Nisku, Alberta Office +1 780 983 2588 Canada T9E 7X9 Info@IgniteMfgInc.ca...
- Page 2 HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL GENERAL HAZARD WARNING FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER CAN RESULT IN SERIOUS DEATH, SERIOUS BODILY INJURY, AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON MONOXIDE POISONING, AND / OR ELECTRICAL SHOCK.
- Page 3 HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL This heater is designed and approved for use as a construction heater in accordance with the Standard for Portable Industrial Gas-Fired Heaters ANSI STD A83.7 / CSA 2.14. CHECK WITH YOUR LOCAL FIRE SAFETY AUTHORITY IF YOU HAVE ANY QUESTIONS ABOUT APPLICATIONS. Other standards govern the use of fuel gases and heat producing products in specific applications.
-
Page 4: Table Of Contents
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL TABLE OF CONTENTS INSTALLATION ..................................5 CLEARANCE FROM COMBUSTIBLES ........................... 5 FUEL ......................................5 ELECTRICAL REQUIREMENTS ............................... 5 CONNECTING THE CYLINDER(S) ............................5 PIPING ...................................... 6 INLET PRESSURES ................................. 6 FLUE PIPE ....................................6 DUCTING .................................... -
Page 5: Installation
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL INSTALLATION The installation of this heater for use with Natural Gas (NG) or Propane (LP) and shall conform with local codes or, in the absence of codes, with the National Fuel Gas Code ANSI Z223.1/NFPA 54. Installation of the unit shall be in accordance with the regulations of the authorities having jurisdiction or the CSA Standard B139, and must be done by a qualified gas technician or gas fitter. -
Page 6: Piping
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL PIPING This heater must be installed by qualified gas technician or gas fitter, following local codes published by the authority having jurisdiction. The gas technician or gas fitter must use the appropriate gas sizing charts to determine proper pipe sizing and length. -
Page 7: Venting Requirements
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL INSTALLATION 7/22 REV 2024-05-26-EN... -
Page 8: Maintenance
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL MAINTENANCE 8/22 REV 2024-05-26-EN... -
Page 9: Operation
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL OPERATION START UP INSTRUCTIONS Position the heater on level surface Toggle switch must be in the “OFF” position Leak test all connections Connect gas supply to heater Select the fuel type, propane or natural gas, on the fuel selector valve Ensure burner “air gate”... -
Page 10: If Heater Fails To Start
Ensure proper power supply and extension cord is being used and that they are securely connected Review the TROUBLESHOOTING section for further information If the heater fails to ignite after 3 attempts, call you supplier for service SAFE OPERATION PRECAUTIONS •... -
Page 11: Burner Set Up Chart
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL BURNER SET UP CHART Firing Rate (BTUH) Orifice - NG Head Setting Air Damper Setting 4.8 LP 395,000 PN 2.2 4.0 NG OPERATION 11/22 REV 2024-05-26-EN... -
Page 12: Gas Train Layout
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL GAS TRAIN LAYOUT / O F System Components (3/4” ID) 90° Elbow (4) 3” Threaded Pipe (5) Union (1) Threaded Coupling (2) Ball Valve (2) Solenoid (1) 2” Threaded Pipe (2) Regulator (1) GAS TRAIN LAYOUT 12/22 REV 2024-05-26-EN... -
Page 13: Hd-400/R Wiring
LOW LIMIT BOX LIMIT 150° C QUICK CONNECTOR HIGH LIMIT 250° C BURNER LAMP GREEN VOLT LIGHT METER MAIN RELAY MOTOR LIGHT H-400 Series Wiring Diagram Ignite Manufacturing Corporation 120 V, 1 Ø 2023-10-09 MAINS POWER SUPPLY WIRING 13/22 REV 2024-05-26-EN... -
Page 14: Field Wiring Diagram
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL FIELD WIRING DIAGRAM REMOTE SENSING OF SAFETY LOCKOUT: The SAFETY LIMIT SWITCH in the CONTROL BOX is equipped with a contact allowing remote sensing of burner lockout. The electrical connection is made at terminal 4 (●) on the SUB- BASE. Should lockout occur the 530SE CONTROL BOX will supply a power source of 120 Vac to the connection terminal. -
Page 15: Spare Parts
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL SPARE PARTS H-0012 PARTS DIAGRAM H-0009 H-0003 H-0006 H-0007 H-0010 H-0008 H-0004 H-0040 H-DF-FRAME H-0016 H-0015 H-0010R H-0014 H-0010A H-0010 H-0018 H-0011 H-0011R (NOT SHOWN) ONLY ON HD-400R H-0002 H-0001 H-0005 H-DF-FRAME H-0017 SPARE PARTS 15/22... -
Page 16: Parts List
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL PARTS LIST PART NUMBER PART DESCRIPTION H-0001 BASE FRAME H-0002 BOTTOM BODY PANEL H-0003 TOP BODY PANEL H-0004 12” DUCTING OUTLET H-0004A 16” DUCTING OUTLET H-0005 BURNER MOUNT PANEL H-0006 SINGLE HOLE LIMIT BOX H-0007 DOUBLE HOLE LIMIT BOX H-0008... -
Page 17: Parts List (Cont)
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL PARTS LIST (CONT) PART NUMBER PART DESCRIPTION H-0048 RED LIGHT H-0049 TOGGLE SWITCH H-TH 25’ THERMOSTAT H-0051 THERMOSTAT PLUG H-0052 TERMINAL BLOCK H-0053 BURNER GASKET WITH CLAMP H-0054 FOAM FOR UNDER R HOOD, 350° H-0055 GAS TRAIN, BLACK PIPE H-0056... -
Page 18: Burner Spare Parts
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL BURNER SPARE PARTS PARTS DIAGRAM (RIELLO G400) BURNER SPARE PARTS 18/22 REV 2024-05-26-EN... -
Page 19: Burner Parts List
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL BURNER PARTS LIST PART NUMBER PART DESCRIPTION R3020509R-LPNG STEEL BURNER COVER R3020321 AIR PRESSURE SWITCH R3001162 PRIMARY CONTROL BOX R3002307 PRIMARY CONTROL SUB-BASE R3007288 AIR SWITCH TUBE AND CONNECTER R3007310 IONIZATION LEAD R3007293 AIR TUBE COVER PLATE R3006688... -
Page 20: Cautions
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL CAUTIONS • Pipe Fittings When any pipe fittings are loosened, tightened, or replaced, an approved thread sealing compound should be applied to the threads to ensure that they are leak proof and pressure tight •... -
Page 21: Troubleshooting
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL TROUBLESHOOTING BURNER FAILS TO PRE-PURGE • Check for power to the unit • Check the operation of the air pressure switch: Remove air pressure switch cover Bypass the switch by carefully shorting the C and NC terminals with a jumper wire If the motor starts, replace the air pressure switch •... -
Page 22: Technical Specifications
HD-400(R) INDIRECT FIRED SPACE HEATER USER INSTRUCTIONS MANUAL TECHNICAL SPECIFICATIONS CLEARANCE FROM COMBUSTIBLES Model HD-400 & HD-400R 3 ft Fuel Propane Natural Gas Front 10 ft Input 390,000 BTUH Sides 3 ft Manifold Pressure 1.5” W.C. Propane 2.0” W.C. Natural Gas Rear 3 ft Maximum Inlet Pressure...
