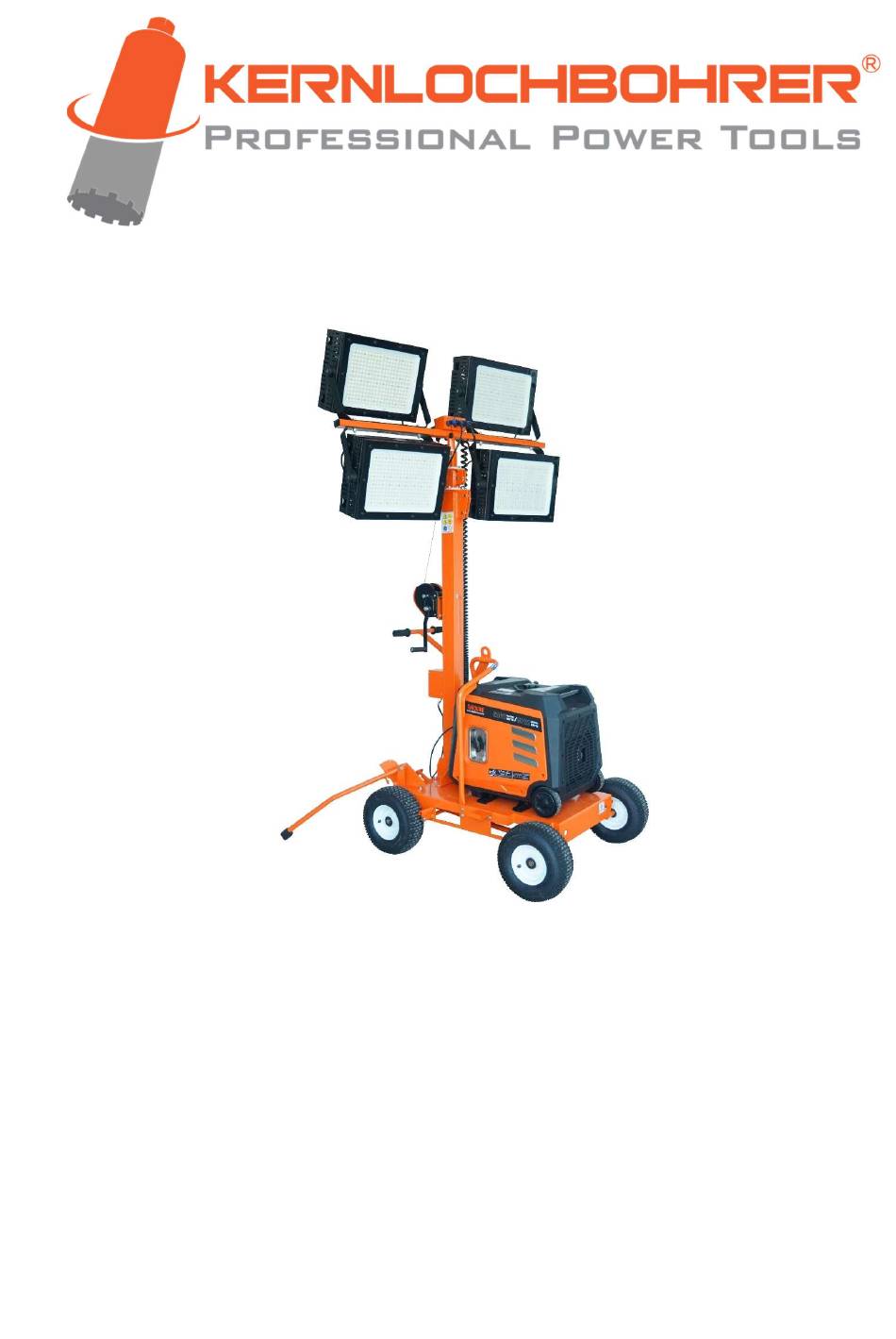

- Page 1 Operating instructions Mobile Light Tower MLT 4x600 BA-09-000003-01-EN...
- Page 3 Kernlochbohrer GmbH. Subject to errors and technical changes. Kernlochbohrer GmbH is not liable for any errors in this documentation. Liability for direct or indirect damages arising in connection with the delivery or use of this documentation is excluded to the extent permitted by law.
-
Page 4: Table Of Contents
Operating instructions Mobile Light Tower MLT 4x600 Table of contents Information and support ................6 Scope of application ................6 Thanks to the buyer ................6 Using the Operating instructions ............6 Changes ....................7 Explanation of symbols ................ 7 Guarantee .................... - Page 5 Operating instructions Mobile Light Tower MLT 4x600 Technical data ..................18 Device description ..................19 Device components ................19 Scope of delivery ................21 Special safety measures ................22 Preparations for operation ..............22 During operation ................. 23 Maintenance ..................23 Operation ....................
-
Page 6: Information And Support
By following the Operating instructions, you will be able to fully uti- lise the outstanding performance of our product. If you have any questions regarding the operation of the device, please con- tact Kernlochbohrer GmbH directly. We are available to answer your questions at any time. Using the Operating instructions The appliance is intended for professional use and may only be operated by trained personnel. -
Page 7: Changes
Operating instructions Mobile Light Tower MLT 4x600 Changes Kernlochbohrer GmbH reserves the right to change the design and appear- ance of the products and their Operating instructions. Future changes to the Operating instructions will be made without prior notice. Explanation of symbols... -
Page 8: Environmental Protection
Operating instructions Mobile Light Tower MLT 4x600 Environmental protection 1.7.1 Disposal of the packaging The packaging is made from recyclable materials. They must be disposed of in accordance with their labelling and municipal guidelines. 1.7.2 Disposal of the product Follow national regulations on environmentally friendly disposal and recycling of used machines and accessories. -
Page 9: Security
"Technical data" chapter. Any other or additional use is considered improper use - risk of accident! Kernlochbohrer GmbH is not liable for any resulting damage. The risk is borne solely by the operator. Intended use also includes observing the operating instructions and complying with the prescribed maintenance intervals. -
Page 10: Warnings And Safety Instructions
Operating instructions Mobile Light Tower MLT 4x600 The Si6000E Inverter power generator may only be used in ac- cordance with its Operating instructions. Warnings and safety instructions The safety of yourself and others is very important. Please read the safety warnings in the Operating instructions and the stickers on the appliance care- fully. -
Page 11: Safety Instructions For Handling Power Generators
Operating instructions Mobile Light Tower MLT 4x600 Safety instructions for handling power generators Before putting a generating set into operation, you should have read and un- derstood its operating instructions and familiarised yourself with the safe oper- ation of the generating set in order to avoid accidents. -
Page 12: Safety Regulations For The Operator
Changes to the device The operator may not make any modifications to the device without written au- thorisation from Kernlochbohrer GmbH. If the operator carries out modifica- tions without authorisation, the warranty becomes void. Kernlochbohrer GmbH is not liable for damage caused by unauthorised modifications. -
Page 13: Spare Parts
Spare parts Spare parts must comply with the properties defined by Kernlochbohrer GmbH. This is always guaranteed for spare parts supplied by Kernlochbohrer GmbH. Kernlochbohrer GmbH is not liable for damage caused by the use of unsuitable spare parts. 2.5.4... -
Page 14: Safety Regulations For Staff
Operating instructions Mobile Light Tower MLT 4x600 Safety regulations for staff 2.6.1 Safe behaviour All persons responsible for commissioning, operating and maintaining the ap- pliance must have read and understood the Operating instructions beforehand. The appliance may only be operated by persons who have been adequately instructed beforehand. -
Page 15: Safe Operation
Operating instructions Mobile Light Tower MLT 4x600 2.6.2 Safe operation Operating the appliance requires the full concentration and ability of the per- sonnel. Persons who are overtired, unable to concentrate or under the influ- ence of alcohol, drugs or medication must not work on or with the appliance. -
Page 16: Safety During Maintenance
Operating instructions Mobile Light Tower MLT 4x600 Safety during maintenance 2.7.1 General information Maintenance of the appliance may only be carried out by persons who have completed the appropriate specialised training for this activity. The maintenance activities and intervals specified in the Operating instructions must be observed. -
Page 17: Safety Instructions For Connecting Consumers To Generators
Operating instructions Mobile Light Tower MLT 4x600 Safety instructions for connecting consumers to generators WARNING - Before connecting electrical consumers to a power generator, check that the electrical devices, including the cables and plugs, are undamaged and in good condition. -
Page 18: Technical Data
Operating instructions Mobile Light Tower MLT 4x600 Technical data General Model Mobile Light Tower MLT 4x600 Article number 9015 Base area of the platform trailer Approx. 1400 x 950 mm Floor space in operating condition Approx. 1650 x 1250 mm... -
Page 19: Device Description
Operating instructions Mobile Light Tower MLT 4x600 Device description Device components 2024-09-27 BA-09-000003-01-EN... - Page 20 Operating instructions Mobile Light Tower MLT 4x600 Headlight bridge Headlights Lighting mast Bracket for crane transport Power generator (not included in the scope of delivery) Platform trailer Wheel (4 pieces - 2 steerable, 2 fixed) Interface box Spiral cable (connection between interface box and power generator)
-
Page 21: Scope Of Delivery
Mobile Light Tower) can also be procured: Manufacturer: Kernlochbohrer GmbH Type: Si6000E + MLT 4x600 Article number 9020 Kernlochbohrer GmbH offers an extensive range of machines, tools and accessories. The webshop http://www.kernlochboh- rer.com is available for information and ordering. 2024-09-27 BA-09-000003-01-EN... -
Page 22: Special Safety Measures
Operating instructions Mobile Light Tower MLT 4x600 Special safety measures Preparations for operation The following points must be checked or implemented: - The immediate vicinity of the appliance must be clean, tidy and free of ob- jects lying around. - The light mast of the device can be extended up to a height of 4500 mm. -
Page 23: During Operation
Operating instructions Mobile Light Tower MLT 4x600 During operation The following points must be checked or implemented: - No other persons may be in the vicinity of the device while the lighting mast is being extended. - The maximum wind speed at which the lighting mast may be extended is 72 km/h. -
Page 24: Operation
Operating instructions Mobile Light Tower MLT 4x600 Operation DANGER The Si6000E Inverter power generator may only be used in ac- cordance with its Operating instructions. Assembly Proceed as follows to install the appliance for the first time: Remove the platform trolley and accessories from the transport pack- aging. - Page 25 Operating instructions Mobile Light Tower MLT 4x600 Park the platform trailer on a firm, level and horizontal surface and ap- ply the foot brake. Attach the connecting rod of the steerable wheels to the underside of the platform trailer.
- Page 26 Operating instructions Mobile Light Tower MLT 4x600 Attach both outriggers to the side of the drawbar on the platform trailer. Attach the mounting spigot for the headlight bridge to the top of the lighting column. BA-09-000003-01-EN 2024-09-27...
- Page 27 Operating instructions Mobile Light Tower MLT 4x600 WARNING Two people are required for the following assembly step: The first person holds the lighting column and secures it against falling over. The second per- son attaches the lighting column to the platform trailer.
- Page 28 Operating instructions Mobile Light Tower MLT 4x600 Attach the headlights to the headlight bridge. Plug the cables of the individual headlights into the connections of the interface box on the headlight bridge and secure with a union nut. The centre socket must remain free;...
- Page 29 Operating instructions Mobile Light Tower MLT 4x600 Plug the spiral cable of the light mast (connection to the power generator) into the centre socket of the interface box and secure with a union nut. Attach the retaining screw of the spiral cable to the headlight bridge as a strain relief.
- Page 30 Operating instructions Mobile Light Tower MLT 4x600 Place the generator on the platform trailer and secure it. Plug the spiral cable of the light mast into the power generator. The Mobile Light Tower is now ready for operation.
-
Page 31: Transport
Operating instructions Mobile Light Tower MLT 4x600 Transport The following points must be observed when transporting the appliance to and from the place of use: - The device may only be transported when the light mast is fully retracted. - The height of the appliance must be taken into account during transport. -
Page 32: Extending The Lighting Mast
Operating instructions Mobile Light Tower MLT 4x600 Extending the lighting mast WARNING - The maximum wind speed at which the lighting mast may be extended is 72 km/h. - The lighting mast may only be extended when the power generator is switched off. - Page 33 Operating instructions Mobile Light Tower MLT 4x600 Procedure: Place the appliance on a firm, level and horizontal surface so that it cannot tip, slide, roll or fall over. Apply the foot brake. Level the appliance. If necessary, level out by placing wooden or plas- tic plates under all four wheels and the two stabilisers.
-
Page 34: Switching On The Headlights
Operating instructions Mobile Light Tower MLT 4x600 Switching on the headlights The headlights are switched on at the switch box. To do this, open the cover of the switch box. Switch 1 can be used to switch on two headlights of the headlight bridge. - Page 35 Operating instructions Mobile Light Tower MLT 4x600 The assignment of the headlights to the switches can be changed by the user by reconnecting the headlight cables on the interface box: Switches 2 and 3 control the two sockets on the side of the inter-...
-
Page 36: Retracting The Lighting Column
Operating instructions Mobile Light Tower MLT 4x600 Retracting the lighting column WARNING If a part of the lighting column gets stuck during retraction or the winch cable becomes slack before the lighting column is fully lowered, stop retraction im- mediately! If the cable winch is turned further, the sag of the cable increases. - Page 37 Operating instructions Mobile Light Tower MLT 4x600 Procedure: Switch off all headlights. Lower the lighting mast by turning the winch crank anti-clockwise. 2024-09-27 BA-09-000003-01-EN...
-
Page 38: Maintenance
The contractually agreed warranty does not release the operator of the device from the obligation to maintain the device in accordance with the manufactur- er's instructions from the time of commissioning. Kernlochbohrer GmbH is not liable for damage caused by a lack of maintenance. -
Page 39: Long-Term Storage
Operating instructions Mobile Light Tower MLT 4x600 Long-term storage If the appliance is not to be used for 30 days or longer, some preparations must be made. These will help to preserve the components and ensure that the appliance is ready for future use. -
Page 40: Eu Declaration Of Conformity
250 V. Name and address of the person authorised to compile the technical documentation: Kernlochbohrer GmbH | Geigersbühlweg 52 | 72663 Großbettlingen | Germany Großbettlingen 2024-09-27 Kernlochbohrer GmbH...
