Summary of Contents for Third Reality 3RSM0147Z

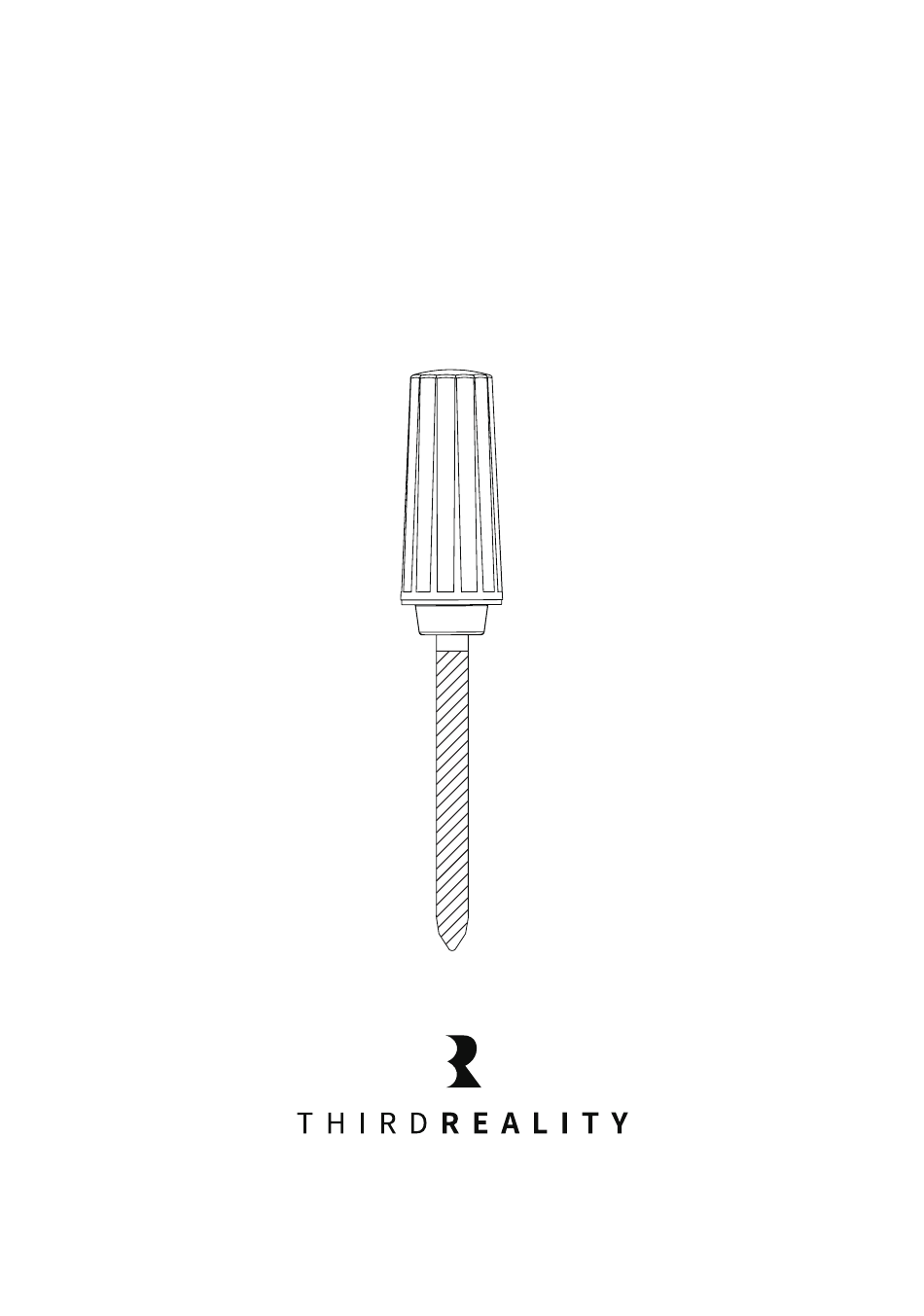

- Page 1 20240929 Smart Soil Moisture Sensor User Manual...
-
Page 2: Table Of Contents
Introduction What's in the Box Specifications LED Status Setup Installation Setup with Third Reality Hub and SKILL Setup with Smart Bridge MZ1 Setup with Compatible Third-Party Zigbee Hubs Pairing with SmartThings Pairing with Hubitat Pairing with Home Assistant FCC Regulatory Conformance... -
Page 3: Introduction
Introduction Smart Soil Moisture Sensor is able to detect the environmental condi- tions of the soil in real time and transmit the data to your smart system through wireless communication capabilities. What's in the Box AA Battery Smart Soil Moisture Sensor Quick Start Guide Smart Soil Moisture Sensor User Guide... -
Page 4: Specifications
Specifications Name Smart Soil Moisture Sensor Model 3RSM0147Z Operating Voltage DC 1.5V Battery Type 1 x AA Alkaline Battery (included) Wireless Connectivity Zigbee 3.0 Working condition -10℃~50℃(14℉~122℉) RH 0～100% Temperature Range -10℃~50℃(14℉~122℉) Temperature Accuracy ±1.5℃ Humidity Range 0～100% Humidity Accuracy ±3%... -
Page 5: Setup
Setup Open the battery cover. Remove the battery insulation tab and install the battery. OPEN Press and hold the reset button for 5 seconds until the LED light turns red, release the reset button and the LED starts blue blinking, indicating it enters Zigbee pairing mode. -
Page 6: Installation
Installation Recomand: Use a suitable tool to dig a small hole in the soil and then insert the sensor. When installing the sensor, make sure the marked best line is flush with the soil surface. Best Line Friction can damage the sensor and affect its accuracy. It is not recommended to insert the sensor directly into hard soil, which may damage the sensor. -
Page 7: Setup With Third Reality Hub And Skill
5 seconds and release the hold; The blue blinking LED light indicates the sensor enters Zigbee pairing mode. Open the Third Reality APP, press the “+” icon next to the hub, and select “Quick Pair.” The sensor will pair with your hub and appear in the Third Reality APP. -
Page 9: Setup With Smart Bridge Mz1
Things, and Home Assistant. By setting up your Zigbee smart soil mois- ture sensor with the Smart Bridge, it transforms into a Matter compatible smart color bulb, enabling local control through Matter. Third Reality also offers the 3R-Installer APP, which lets you configure Zigbee smart soil moisture sensor attributes such as default-on behavior and perform firm-... -
Page 11: Setup With Compatible Third-Party Zigbee Hubs
Setup with Compatible Third-Party Zigbee Hubs Third Reality supports integration with various open Zigbee platforms, including Amazon Echo with built-in Zigbee, Samsung SmartThings, Home Assistant (with ZHA or Z2M), Homey and Hubitat. If you own any of these devices, you can pair the smart soil moisture sensor directly with- out the need for an additional bridge or hub. -
Page 12: Pairing With Smartthings
Pairing steps: Before pairing, check for updates to make sure the SmartThings Hub firmware is up to date. Add SmartThings drivers for Third Reality Temperature and Humid- ity Sensor Open this link in your PC browser. Log in your SmartThings Ac- count. - Page 14 Open the battery cover and install the batteries, press and hold the reset button for 5 seconds and release the hold; The LED light turns blue blinking, indicating it enters pairing mode. Open your SmartThings App, tap “+” on the up right corner to ” Add device”...
- Page 15 Create routines to control connected devices.
-
Page 16: Pairing With Hubitat
Pairing with Hubitat Website: http://find.hubitat.com/ Pairing steps: Open the battery cover and install the batteries, press and hold the reset button for 5 seconds and release the hold; The LED light turns blue blinking, indicating it enters pairing mode. Visit your Hubitat Elevation hub device page from your web brows- er, select the Devices menu item from the sidebar, then select Dis- cover Devices in the upper right. -
Page 19: Pairing With Home Assistant
Pairing With Home Assistant Device: Zigbee dongle Zigbee Home Automation Open the battery cover and install the batteries, press and hold the reset button for 5 seconds and release the hold; The LED light turns blue blinking, indicating it enters pairing mode. In Zigbee Home Automation, go to “Configuration”... - Page 22 Zigbee2MQTT Open the battery cover and install the batteries, press and hold the reset button for 5 seconds and release the hold; The LED light turns blue blinking, indicating it enters pairing mode. Permit join to start Zigbee pairing in Zigbee2MQTT. Pairing completed, the sensor will be displayed in the device list Go to Settings page, create automation.
-
Page 24: Fcc Regulatory Conformance
FCC Regulatory Conformance This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsi- ble for compliance could void the user’... -
Page 25: Rf Exposure
‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help im- portant announcement.
