Summary of Contents for Di-soric ID600-BM28-EP15/300

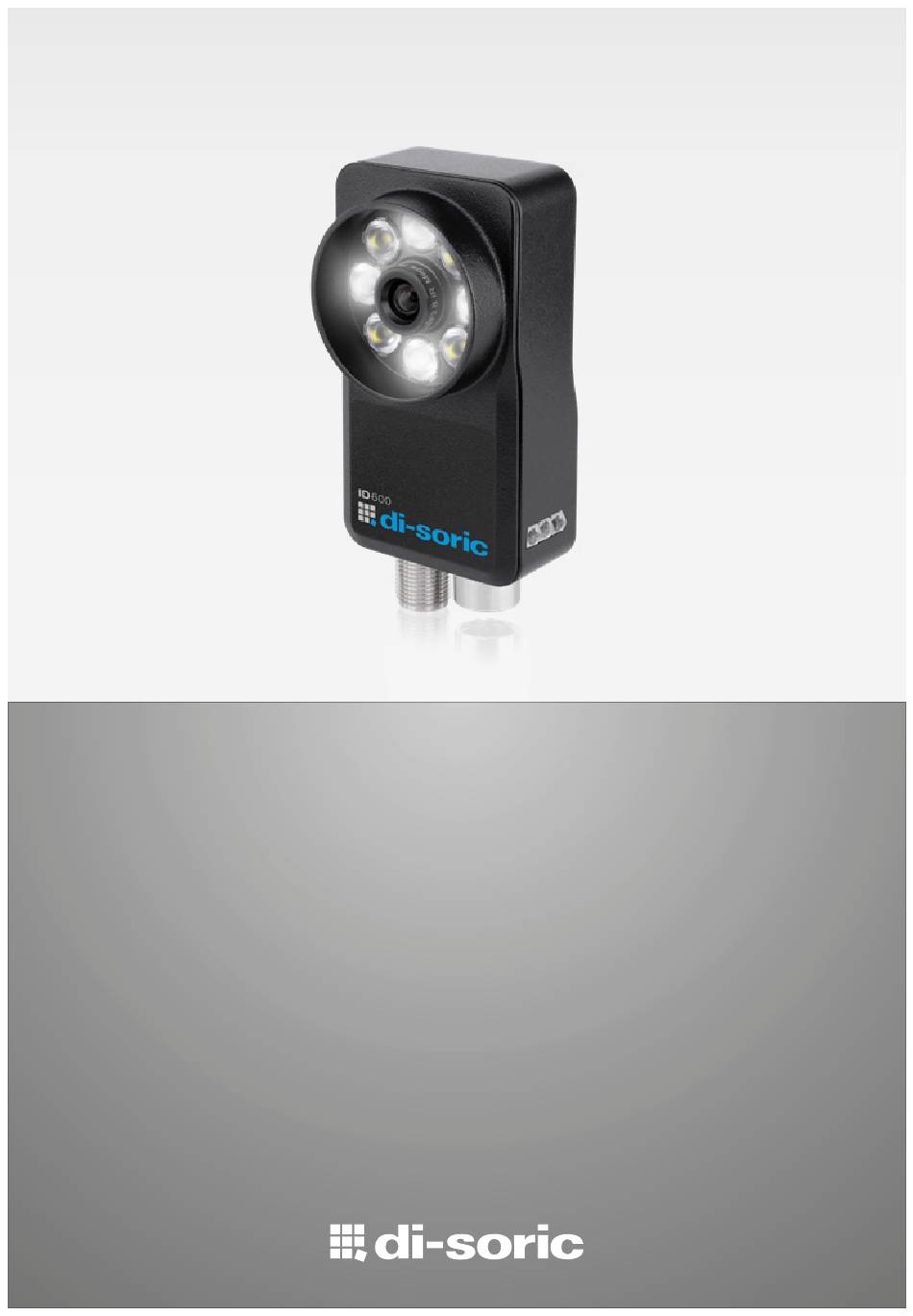

- Page 1 FIXED-MOUNTED ID READERS ID-600 LICENSING MODEL QUICK START GUIDE...
-
Page 2: Table Of Contents
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE OUR VERSATILE CAMERA-BASED ID-600 FIXED-MOUNTED SMART PRODUCTION READY The ID-600 impresses with its powerful, upgradeable software, clever and robust illumination concept, its M12 interchangeable lenses, and extensive optics accessories. Thanks to high-performance code-reading tools and the quickly configurable nVision-i software, optimal performance with smooth startup and changing conditions is guaranteed. - Page 3 3. The upgrade can be acquired via has the ordered status upon 3. If there is no Internet connection, the Online Shop or via di-soric delivery. di-soric Customer Service can Customer Service. The sensor activate the license manually.
-
Page 4: First Steps
Installing the nVision-i software: The most current software version is available for ¡ download on the di-soric homepage at https://www.di-soric.com/213438. To ensure that the nVision-i software is installed properly, full administrative rights are required! Start installation by clicking on “Install.” Perform the instal- ¡... -
Page 5: Licensing
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE Licensing The license is activated the first time nVision-i is started. If licensing is successful, nVision-i can be started. If the computer being used does not have an Internet con- nection, the software can also be activated by phone. Using hardware identification, Customer Service can generate the activation key. -
Page 6: Adjusting The Settings Of The Id-600
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE Adjusting the settings of the ID-600 After starting the nVision-i software, the following image appears: (Fig. 02) Connect to Sensor Help for selected action Help with connection to sensor Fig. 02 Note: In this window, adjustments to network settings, such as the assignment of the IP address or the activation of the industry protocols, can be performed. -
Page 7: Focusing The Lens
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE Focusing the lens To do this, continuous recording must be started via “Free Running.” (Fig. 06) Select Image Trigger Fig. 06 By turning the lens, the image can then be focused. If needed, the exposure time, the flash mode (flash, color) and the trigger settings can also be chosen in the Acquisition area. -
Page 8: The Image Processing Tools
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE THE IMAGE PROCESSING TOOLS SIMPLE AND FAST plus-cir UPDATE ID: Localize, read and count 1D, 2D and DPM codes Finds a code within the defined search field LOCALIZATION and serves as a guide for subsequent tools. Efficient for label fit check Decodes all codes and can evaluate the READING... -
Page 9: User Interface
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE USER INTERFACE LOREM Structure of the user interface The ID-600 user interface is made up of 4 areas. The navigation bar in the upper area is for instructions and setup. The verifica- tion tools contained here are divided into 4 groups. Double-click on one of these tools to insert it in the area on the left, the so-called Pipeline. -
Page 10: Communication With Higher-Level Control Systems
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE Communication with higher-level control systems At the end of editing, the results can be summarized and transmitted to the higher-level control system using the options in the Logic area. Saving the job Save the job in the flash memory of the sensor by clicking “Save job.”... -
Page 11: Appendices
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE APPENDICES LOREM Renaming verification tools Click on the name field to select and rename it. Renaming a job name To do this, click on the corresponding name field and rename it. -
Page 12: Setting A Boot Job
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE Setting a boot job First click on the arrow and then on “Boot job.” Importing and exporting the job Click on the corresponding arrow. -
Page 13: Technical Data
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE ID-600 FIXMOUNT ID-READER TECHNICAL DATA Compact and high-performance ¡ High power LED illumination in red and white ¡ Flexible and high-performance software ¡ IND. CONT. EQ. 29W7 Parameter changes during production ¡ Enclosure Type 1 Supply Class 2 Easy &... - Page 14 FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE ID600-BM28 ID600-BM28 ID600-BM38 ID600-BM38 -EP15/300 -EP15/300PRO -EP15/300 -EP15/300PRO Tools: Reading 1D code ¡ square square square square Reading 2D code ¡ square square square square Reading stacked codes ¡ square square square square Reading DPM code ¡...
-
Page 15: Dio Connection
FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE LOREM DIO connection Power +24 VDC (BK) 24 VDC (GY) Trigger / Inputs (PNP) Input 0 (BN) Input 1 (BL) Trigger (VT) 24 VDC Common Input (YE) Outputs (PNP) Push/Pull Operation 24 VDC Output 0 (GY/PK) Output 1... - Page 16 FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE FIELDS OF VIEW ID-600 The following table shows the representation of fields of view with the available lenses at various working distances for the ID-600 with 736 x 480 pixels (0.3 MP) and 440 x 1080 pixels (1.58 MP).
- Page 17 FIXMOUNT ID-READER ID-600 – QUCIK START GUIDE LOREM Change job when using the inputs Job change Job slot number To do this, use the inputs 0 and 1. The PLC sets a high signal to the line 0 “Change job” and then sends a series of impulses (1 ms hold time) to line 1 “Job selection.”...
- Page 18 Headquarters Germany: di-soric GmbH & Co. KG | Steinbeisstrasse 6 | 73660 Urbach Phone +49 71 81 98 79-0 | Fax +49 71 81 98 79-179 | info @ di-soric.com di-soric Subsidiaries Austria: di-soric GmbH & Co. KG | Phone +43 7228 72 366 | info.at @ di-soric.com China: di-soric Industrial Automation (Suzhou) Co.
