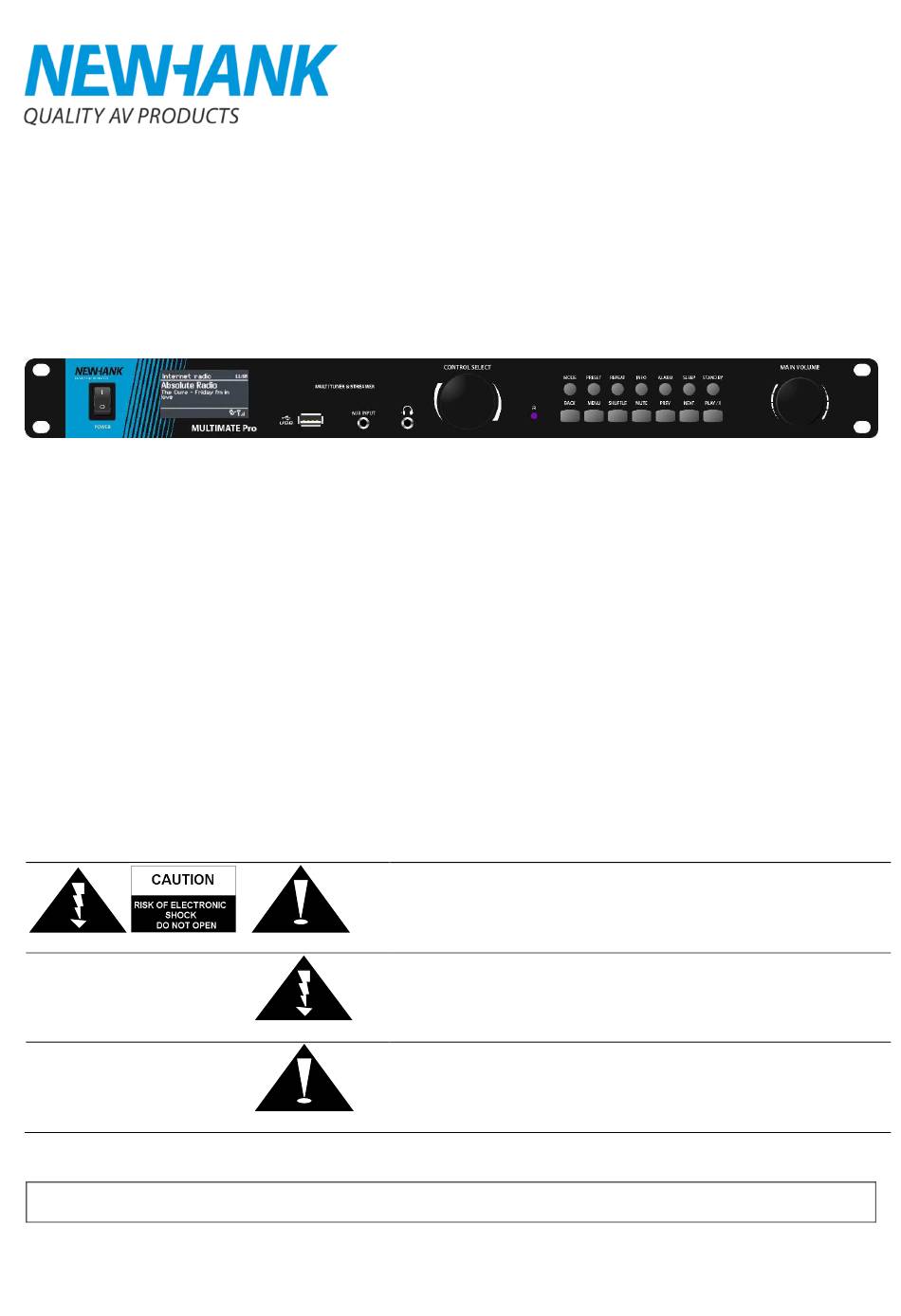

MULTIMATE PRO
User's Manual
INTERNET RADIO
DAB / DAB+ / FM RDS
USB READER / Bluetooth
Remote APP / RS-232
CAUTION: TO REDUCE THE RISK OF ELECTRONIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
V 6-24
www.newhank.com
Advertisement
Table of Contents
Summary of Contents for Newhank MULTIMATE PRO
- Page 1 MULTIMATE PRO User’s Manual INTERNET RADIO DAB / DAB+ / FM RDS USB READER / Bluetooth Remote APP / RS-232 CAUTION: TO REDUCE THE RISK OF ELECTRONIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
-
Page 2: Table Of Contents
7.3 Settings ................................................22 8 Bluetooth mode .................................................. 22 9 Aux in mode ..................................................23 10 Alarms and sleep ................................................23 10.1 Alarms ................................................23 10.2 Sleep ................................................24 11 UNDOK ....................................................24 12 RS232 protocol commands ............................................25 www.newhank.com... -
Page 3: Outward Appearance
Headphones out • Balanced audio out XLR • Line in • Ethernet RJ45 • External (optional) power terminals • Power 230v IEC • Radio antenna IEC • RS-232 DB9 • Wifi / Bluetooth antenna SMA • Earth ground screw www.newhank.com... -
Page 4: Features
Large 2.7 inch display for easy control and clear information display, with up to six lines of text plus status icons • Infrared remote control • Remote APP • RS232 • Clock with auto-update capability and dual independent alarms • Sleep/snooze • Multiple network profiles for easy setup • 13 languages operating www.newhank.com... -
Page 5: Controls
Select next track or hold to scan up/fast forward. PLAY / II Play / Pause REPEAT Music player repeat songs. SHUFFLE Music player shuffle songs. ALARM Set time to start up the device SLEEP Set time to turn off the device www.newhank.com... -
Page 6: Remote Control
Set/recall preset 2 or 7. Set/recall preset 3 or 8. Preset: Press for the Preset recall/Save menu; PRESET Scroll up/down to select the preset number then press 'Select' to confirm. There are 10 presets each for Internet radio, DAB and FM modes. www.newhank.com... - Page 7 MUTE Mute. Previous: Skip back (previous track). Rewind. Fast forward. Next: Skip forward (next track). Additionally, the infrared remote control functions can also be triggered via the RS-232 port, see the protocol commands at the end of this manual. www.newhank.com...
-
Page 8: Screens
As with menus, the selected item is shown with a white background. Dialogue screens mark the current setting with an asterisk (*). Error/Information screens give specific messages for a few seconds, then change automatically to another screen. www.newhank.com... - Page 9 Menus with more options than will fit on one screen have a scroll bar to the right. The Main menu allows access to all modes plus sleep and timer functions. System settings menu Some menus, for example the have several submenus. www.newhank.com...
-
Page 10: Getting Started/Setup
To change between 12 and 24 hour display, select Set 12/24 hour and then select your preference. 3.1.2 Time/date The time and date can be updated manually or automatically. With auto-update, the time and date are automatically synchronized with external clocks. Auto-update is generally more accurate. www.newhank.com... -
Page 11: Network
To connect to a wired network, select [Wired], after ensuring that the Ethernet cable from the wired router is connected to the Ethernet socket of the unit. If the network is open (non-encrypted), the unit connects without any further ado; see Completion below. www.newhank.com... - Page 12 (e.g. advanced versions of Windows Vista). • Skip WPS > Enter key as for a standard encrypted network, above. For more information on setting up a WPS encrypted network, see your WPS router’s instructions. www.newhank.com...
-
Page 13: Common Settings
Several preset EQ modes are available; also a user- defined setting. To adjust the EQ, select Menu > System settings > Equaliser. You can then choose from a variety of preset modes or create your own, with custom bass, treble and loudness settings. www.newhank.com... -
Page 14: Streaming Audio Quality
Allow you to change between 12 and 24 hour display. 3.2.5 Inactive standby Allow you to set designated time when device is non-working will automatically switch to Standby mode. ( Off, 2 hours, 4 hours, 5 hours, 6 hours ) www.newhank.com... -
Page 15: Language
Radio ID is also placed at rear panel. • Friendly name: Name by which the radio is identified on a network 3.2.11 Privacy Policy Guiding you to website for full details: Please visit the following page on a PC or mobile device. www.frontiersmart.com/privacy www.newhank.com... -
Page 16: Backlight
To select a preset, press Preset briefly, then select one of the listed preset stations. When a preset station is playing, it shows P (P1, P2 etc) in the bottom of the screen. Note: Operation of presets is identical for Internet radio, DAB and FM. www.newhank.com... -
Page 17: Browse
To search, select Menu > Station list > then either Stations > or Podcasts > Enter a keyword by selecting characters then OK. The search entry screens are similar in operation to the Wi-Fi password entry screen. www.newhank.com... -
Page 18: Now Playing Information
Each time you press Info , another set of information is displayed, cycling through the following details:. • Artist and track name (default; where available) • Station description • Station genre and location • Signal reliability • Codec and sampling rate • Playback buffer • Today’s Date www.newhank.com... -
Page 19: Music Player Mode (Usb)
Select . A short press plays the track immediately and a long press adds the track to the playlist. You can also add entire folders to the playlist. The unit plays either the selected track or the playlist. www.newhank.com... -
Page 20: Playlists
To erase a track from the playlist, long Select . then confirm YES. The playlist is also preserved during standby. Repeat/shuffle You can repeat tracks or play them in random order by selecting Menu > Repeat play or Menu > Shuffle play. www.newhank.com... -
Page 21: Dab Radio Mode
Stereo broadcasts are indicated with an icon at the top of the screen. To view further information, press Info . Each time you press Info , another set of information is displayed, cycling through DLS text, programme type, ensemble name/frequency, signal strength/error rate, bit rate/codec/channels and today’s date. www.newhank.com... -
Page 22: Settings
Select one of the 10 presets to save the currently playing station. To select a preset, press Preset briefly, then select one of the listed preset stations. When a preset station is playing, it shows P (P1, P2 etc) in the bottom right of the screen. www.newhank.com... -
Page 23: Now Playing Information
> FM weak reception: Listen in mono only > Yes. Bluetooth mode Bluetooth mode let you play audio from your mobile. Turn on your mobile’s Bluetooth link, search the device’s name as shown in display. Once it connected, LCD will show current playing music from mobile. www.newhank.com... -
Page 24: Aux In Mode
To temporarily silence it, press SLEEP . You can change the snooze period with the Select control if you like. The radio returns to standby for the set period, with the silenced alarm icon flashing. www.newhank.com... -
Page 25: Sleep
7 or later and Android Smartphone or tablet running Android 2.2 or later. Note: For brevity, "Smart Device" is used in this guide to mean any Smartphone or tablet, iPad running a suitable version of IOS or Android operating system. www.newhank.com... -
Page 26: 12 Rs232 Protocol Commands
0x3C NEXT 0x32 0x3D INTERNET RADIO Mode 0x3F 0x3E MUSIC PLAYER Mode 0x40 SHIFT 0x15 DAB Mode 0x41 PRESET 0x17 FM Mode 0x42 SLEEP 0x18 AUX IN Mode 0x43 MENU 0x19 PODCAST Mode 0x44 INFO 0x1A BT Mode 0x45 www.newhank.com...
