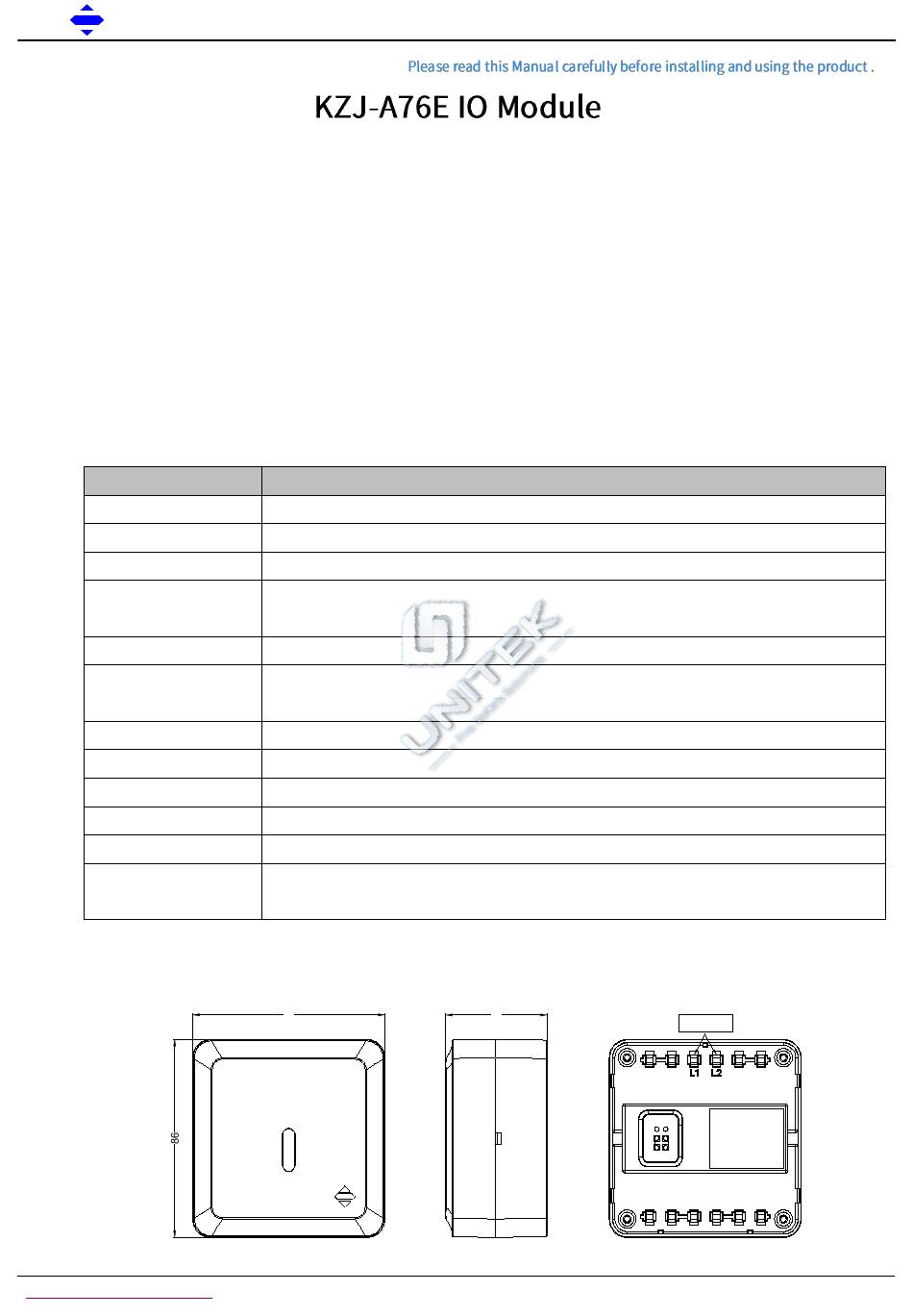

1
Product overview
1.1
KZJ-A76E IO module (after this referred to as KZJ-A76E module) is used with the fire linkage control panel, adopts
non-polarity two-bus power supply design, and can provide DC24V power output. It is mainly used for the output
control of the broadcast signal in the bus-based fire broadcasting system (broadcast module function). After the
module executes the start command, its indicator light will lit, and the switching status information is transmitted back
to the controller, and the controller shows whether the switching is successful. If the switch succeeds, the input
indicator of the KZJ-A76E module will steadily light up. KZJ-A76E module can also realize passive switching signal input
detection and output control through electronic code switching (input/output module function), the input indicator
light will lit after the module input action; After the output control is started successfully, the inspection indicator will
steady on.
2
Technical parameters
2.1
Items
Executive standard
Operating mode
Operation current
External power supply
Output mode
Capacity of the output
control contact
End of line resistor
Weight
External dimensions
Operating environment
Encoding mode
Operation indicator:
3
Appearance and dimensions
3.1
Unit: mm
www.sanjiang-security.com
Product Manual
GB 16806-2006
Non-polarity two-wire system
Quiescent current: < 1mA; Action current: < 20mA
Current: <50mA; Voltage: DC24V (Note: The actual voltage is affected by the bus voltage
drop)
Relay passive output
1A@250VAC Maximum broadcast load:300W
47kΩ
About 158g(With base)
86*86*46(mm)(With base)
Temperature: 0℃～+40℃ relative humidity≤95%(40 ℃±2℃, without condensation)
Through the encoder can be field coding, address coding 1 ~ 324 optional;
The inspection indicator will blink once about every 12 seconds in the inspection status or
remain lit in the output status; the input indicator will remain lit in the feedback status.

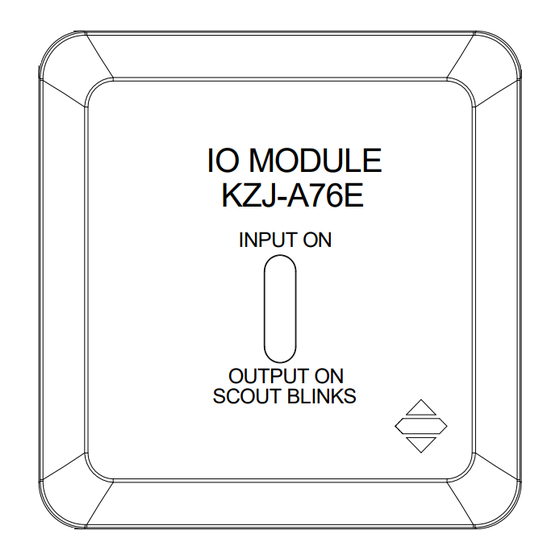

86
IO MODULE
KZJ-A76E
INPUT ON
OUTPUT ON
SCOUT BLINKS
Figure 1 KZJ-A76E Main Body
Page 1 of 3
Parameters
46
OFF
3
2
1
ON
Version: V1.0
CODING PIN
Template (Version):T-006(V01.05)
Advertisement
Summary of Contents for SANJIANG KZJ-A76E
- Page 1 Version: V1.0 Product overview KZJ-A76E IO module (after this referred to as KZJ-A76E module) is used with the fire linkage control panel, adopts non-polarity two-bus power supply design, and can provide DC24V power output. It is mainly used for the output control of the broadcast signal in the bus-based fire broadcasting system (broadcast module function).
- Page 2 Relay common output port NC1, NC2 Relay normally closed contact input port Figure 2 KZJ-A76E module base(DZ-A76) Coding Specification： Module address coding: Clamp the output end of the encoder to the rear cover L1 and L2 pins (regardless of polarity) as shown in Figure 1, set the encoder to the coding function, enter the correct address number and press the "Run/stop"...
- Page 3 Avoid voltage reduction due to bus voltage fluctuation or actual wiring voltage drop, so that the equipment works abnormally. When KZJ-A76E reports a device fault, the module can’t start output normally. You need to check whether the bus voltage or wiring method is normal.
