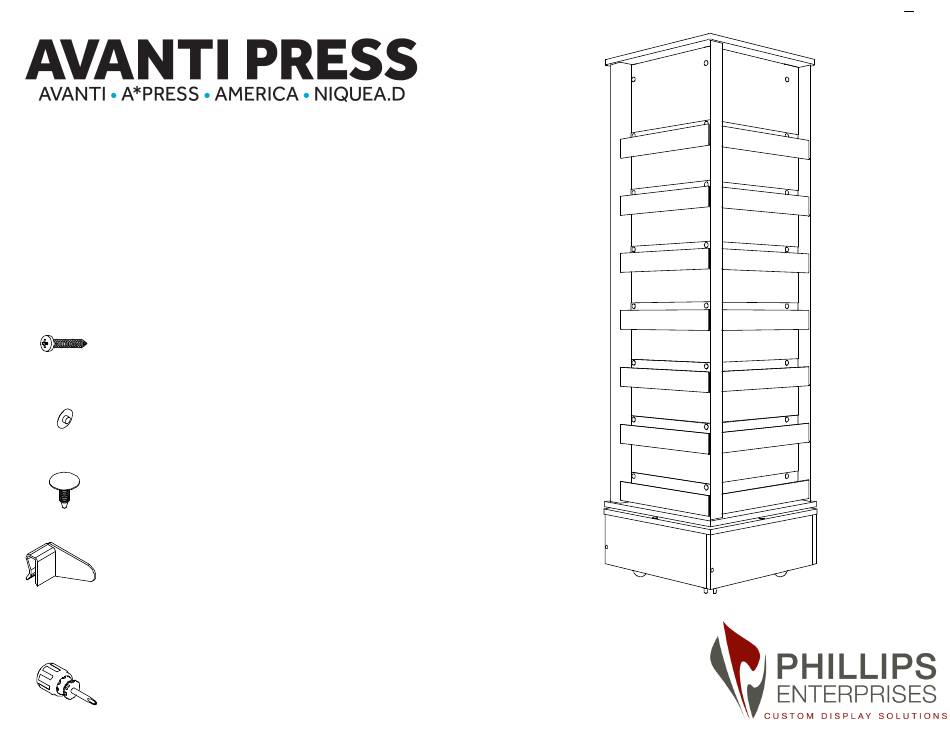

84-POCKET ROTATING TOWER
ASSEMBLY INSTRUCTIONS
(#DISP84NQD & #DISP84ALL)
HARDWARE:
FASTENING SCREW (8 PCS)
COVER CAP (4 PCS)
PUSH-IN FASTENERS (64 PCS)
CARD DIVIDERS (60 PCS)
TOOLS REQUIRED:
PHILLIPS SCREWDRIVER
FOR ASSEMBLY ASSISTANCE
PLEASE CALL 1-800-553-1105
M-F 8AM-4:30PM EST.
4
2CT
24
HWINS1
Advertisement
Summary of Contents for Avanti PRESS DISP84NQD
- Page 1 HWINS1 84-POCKET ROTATING TOWER ASSEMBLY INSTRUCTIONS (#DISP84NQD & #DISP84ALL) HARDWARE: FASTENING SCREW (8 PCS) COVER CAP (4 PCS) PUSH-IN FASTENERS (64 PCS) CARD DIVIDERS (60 PCS) TOOLS REQUIRED: FOR ASSEMBLY ASSISTANCE PHILLIPS SCREWDRIVER PLEASE CALL 1-800-553-1105 M-F 8AM-4:30PM EST.
-
Page 2: Parts List
PARTS LIST CARD POCKET (28X) *ALL PARTS ARE IDENTICAL BASE ASSEMBLY TOWER TOP [4] HOLES IN CORNERS BACKER PANEL (4X) *ALL PARTS ARE IDENTICAL POST (4X) *ALL PARTS ARE IDENTICAL... - Page 3 STEP 1b: IMPORTANT! TO AVOID DAMAGING THE BASE, USE CARE WHEN INSTALLING POSTS. ONCE THE SCREW HAS BEEN FASTENED, THE POST MUST NOT BE USED TO SPIN THE BASE. PLACE THE POST AGAINST THE BASE CLEAT AS SHOWN. IN THE THE SMALL HOLE, INSTALL A FASTENING SCREW.
- Page 4 STEP 2: PLACE THE TOWER TOP ONTO THE POSTS AND FASTEN THE TOP TO THE POSTS WITH FOUR FASTENING SCREWS. FASTENING SCREWS (4X) WHITE COVER CAP (4X) STEP 3: INSTALL FOUR WHITE COVER CAPS ONTO THE EXPOSED BASE FASTENERS.
- Page 5 PUSH IN FASTENER BACKER PANEL STEP 4a: WHEN INSTALLING THE BACKER, THE SHORTER DISTANCE WILL BE TOWARDS THE TOP AND WIDE EDGE TO THE RIGHT. BEFORE INSTALLING PUSH-IN FASTENERS, DOUBLE CHECK THE HOLE ALIGNMENT BETWEEN THE BACKER AND THE POSTS. INSERT TWO PUSH-IN FASTENERS THROUGH THE BACKER PANEL AND INTO THE TOP POST HOLES.
- Page 6 STEP 5: IN THE LOCATIONS REQUIRED, INSTALL CARD DIVIDERS ONTO THE OUTSIDE EDGE OF THE CARD POCKETS AS SHOWN. CARD POCKET ASSEMBLY IS COMPLETE. (7X PER SIDES, 28X TOTAL) PUSH IN FASTENERS STEP 4b: REMOVE PROTECTIVE FILM ON CARD POCKETS BEFORE INSTALLING STARTING FROM THE TOP AND WORKING YOUR WAY...
