Summary of Contents for ABRITES CAN Gateway

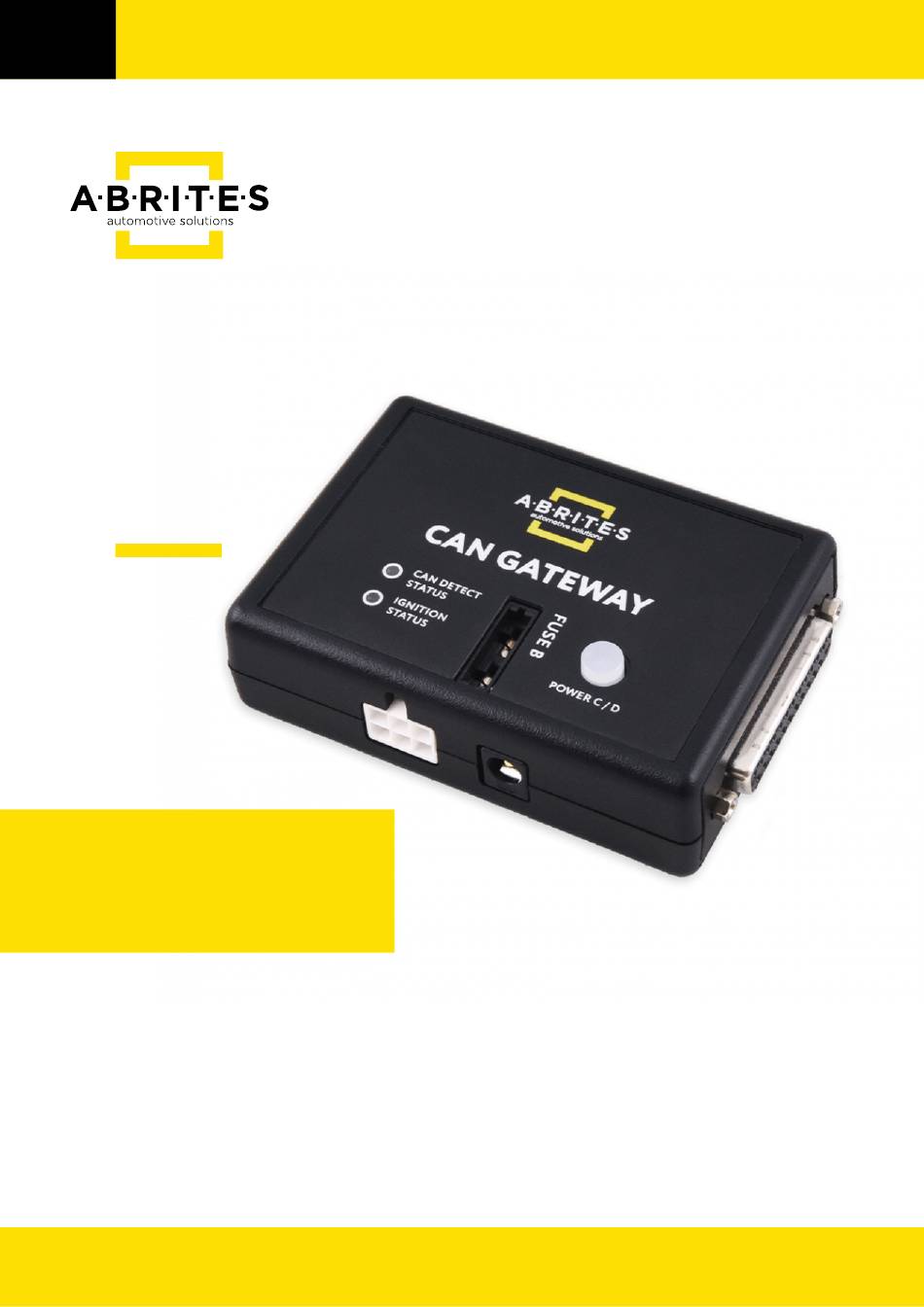

- Page 1 2024 Abrites CAN Gateway User Manual ABRITES CAN GATEWAY User manual version 1.0 www.abrites.com...
-
Page 2: Important Notes
Should you wish to copy this manual or parts of it, you are granted permission only in case it is used with Abrites products, has “Abrites Ltd.” written on all copies, and is used for actions that comply to respective local law and regulations. -
Page 3: Copyright Information
All material herein is Copyrighted © 2005-2023 Abrites, Ltd. Abrites software, hardware, and firmware are also copyrighted Users are given permission to copy any part of this manual provided that the copy is used with Abrites products and the “Copyright © Abrites, Ltd.” statement remains on all copies. -
Page 4: Table Of Contents
2. General Information . 7 2.1 Related products . 7 CB601 - CAN GATEWAY Connection Cable ..7 CB602 - TRUCK EZS/EIS Connection Cable ..8 CB603 - TRUCK MCM Connection Cable ... -
Page 5: List Of Revisions
2024 Abrites CAN Gateway User Manual List of revisions Date Chapter Description Revision 24.06.2024 Document created. 20.09.2024 First General Update www.abrites.com... -
Page 6: Introduction
In this user manual, we’ll walk you through the process of connecting both AVDI and ZN181 - CAN Gate- way Set, using the software and making the right connections to the electronic units you are working on. AVDI should be used with ABRITES software produced by Abrites Ltd. ABRITES is a trade mark of Abrites Ltd... -
Page 7: General Information
ZN081 CAN Gateway is a device developed to work with other connector cables and devices. CB601 - CAN GATEWAY Connection Cable It is used to connect the CAN Gateway to the AVDI and is sold in the ZN181 Set www.abrites.com... -
Page 8: Cb602 - Truck Ezs/Eis Connection Cable
Abrites CAN Gateway User Manual CB602 - TRUCK EZS/EIS Connection Cable It is used to connect TRUCK EZS/EIS to ZN081 - CAN GATEWAY when working on bench, and with the use of MN031 license, and is sold in the ZN0181 Set... -
Page 9: Zn084 - 24V/4A Dc Power Adapter
Fuse - 5A The ZN181 CAN Gateway set, together with the ZN084 24V/4A DC Power adapter, and the CB603, and CB604 give you the full capabilities of the device in its current state, and lets you work with all supporter Mercedes Trucks modules. -
Page 10: Connections
Connect the DC jack of the 24V power supply unit Connect the AVDI Interface with the help of CB601 cable to the “A” connector of the CAN Gateway Once the connections are done, you can work with the Mercedes Trucks software to complete tasks such as: read, save data, set to virgin state, and personalize the MCM unit 3.2 TCU Bench connection:...
