Summary of Contents for Blaupunkt BP15PMT602

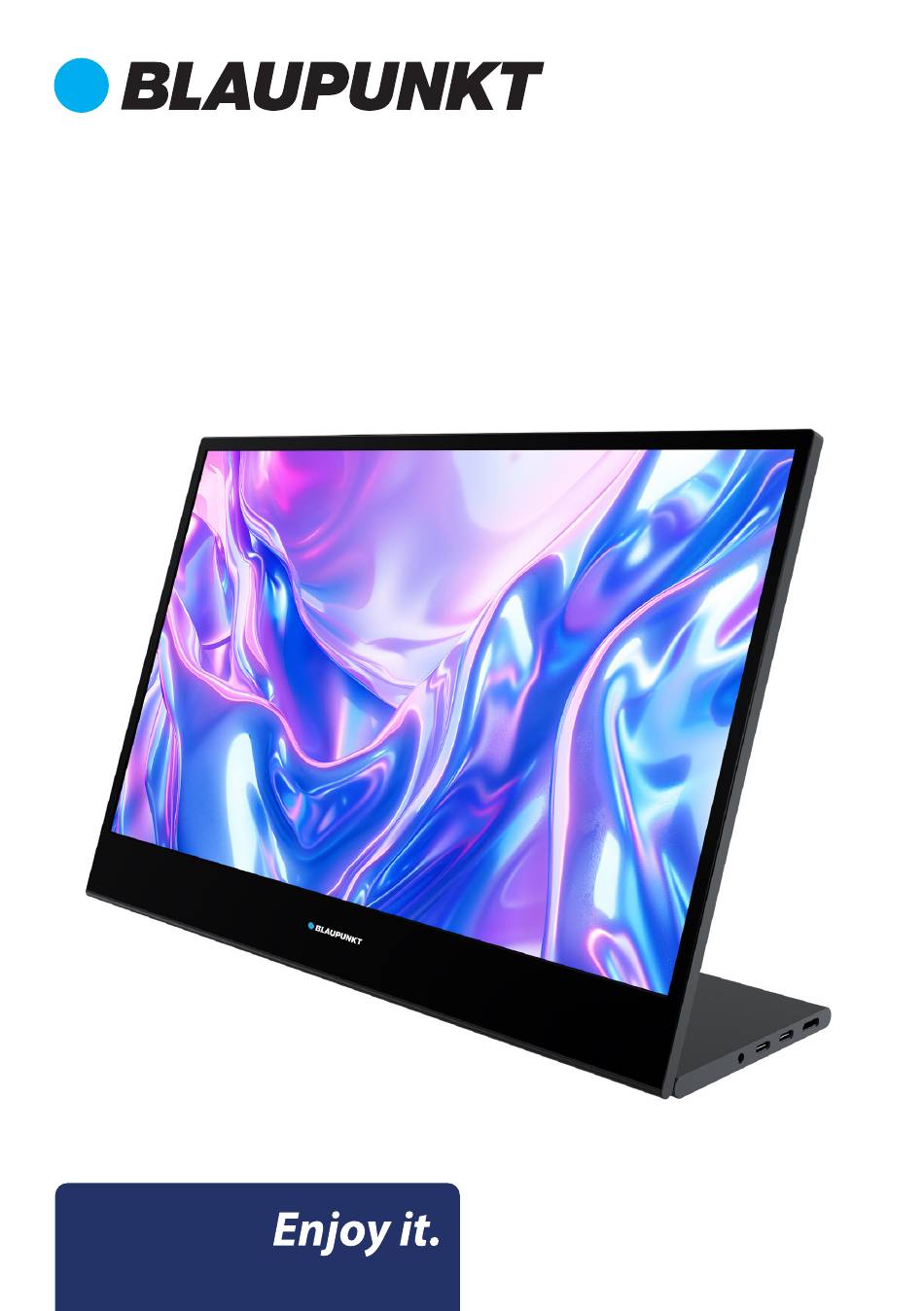

- Page 1 Instruction Manual 15.6” Full HD Touchscreen Portable Monitor - BP15PMT602...
-
Page 3: Table Of Contents
CONTENTS General Safety Installation Wall or Arm Mounting Instructions Attaching the Magnetic stand Controls and Connections Operation Picture Color Reset MISD Specifications Customer Helpline Last Page... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the Monitor. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 GENERAL SAFETY (CONT.) IMPORTANT INFORMATION • Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard • Do not tamper or change or modify the product in any way. • Only use Accessories outlined and recommended by the manufacturer. •...
- Page 6 GENERAL SAFETY (CONT.) • Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire. • The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
- Page 7 GENERAL SAFETY (CONT.) Please make sure upon positioning this product, the place is: • Not wet or damp and Well ventilated • Away from direct sunlight or heaters. • Away from splashes or food. • Protected from excessive dust or grease. •...
-
Page 8: Installation
INSTALLATION Install the stand as described below,... -
Page 9: Controls And Connections
CONTROLS AND CONNECTIONS MINI... - Page 10 CONTROLS AND CONNECTIONS USB TYPE-C PORTS - 1 - Can be used for Power (Adaptor Included) 2 - Can be used for USB Type-C to USB Type-C Video Display. Connect USB Type-C into your Portable Monitor Connect other end of USB Type-C to your Laptop or PC to display the video from device to your Portable Monitor.
-
Page 11: Picture
OPERATION (CONT.) PICTURE • Brightness • Contact • • DCR - picture settings • HDR mode... -
Page 12: Color
OPERATION (CONT.) COLOR • Color Temp. • • GREEN • BLUE • LOW BLUE LIGHT... -
Page 13: Osd
OPERATION (CONT.) • Language • OSD H. POS. • OSD V. POS. • OSD TIMER • Transparency... -
Page 14: Reset
OPERATION (CONT.) RESET • Reset • IMAGE AUTO ADJUST • COLOR AUTO ADJUST... -
Page 15: Misd
OPERATION (CONT.) MISC • Source • Volume • MUTE... -
Page 16: Specifications
SPECIFICATIONS Resolution 1920 x 1080 Display Colours 16.7 Million Contrast ratio: 800 : 1 Brightness 220 cd/m2 Refresh Rate 60Hz Power Source 1 x Instruction Manual 1 x Warranty Card Accessories 1 x USB-C to USB-C Cable 1 x Mini HDMI to HDMI Cable 1 x Power Adapter 1 x USB-A to Type-C Cable CUSTOMER HELPLINE:...
