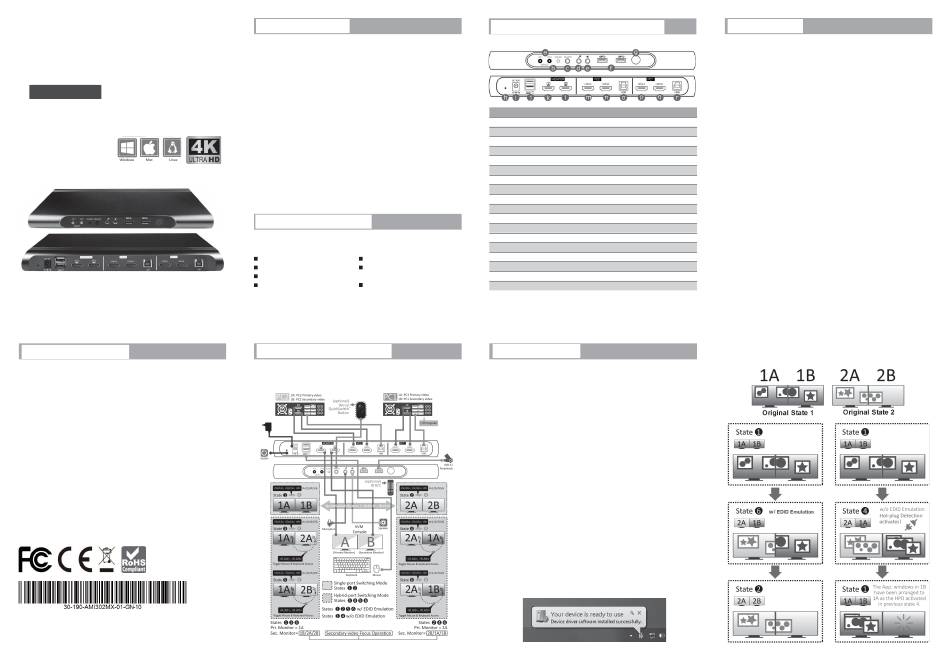

Avico HKU-A1B-0202 Quick Installation Manual

Quick
Installation
Guide
2x2 HDMI 2.0 KVM Switch
HKU-A1B-0202
FCC / CE STATEMENT
FCC Statement:
This equipment has been tested and found to comply with the
regulations for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in
accordance with this Quick Installation Guide, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case,
the user will be required to correct the interference at his/her own
expense.
CE Statement:
This is a Class B product in a domestic environment, this product may
cause radio interference, in which case the user may be required to
take adequate measures.
*This document is subject to possible change without prior notice.
Copyright © 2023 All Rights Reserved
P/N: 30-190-AMI302MX-01-GN-10
1. INTRODUCTION
The HKU-A1B-0202 is a 2-port Dual-monitor HDMI 2.0 KVM Switch,
offering USB 3.0/Dual-HDMI video/Audio & Mic console connectors.
Users can effortlessly access two HDMI-enabled computers using
either of the PC1/PC2 pushbuttons on its front panel or an optional
wired QuickSwitch TM button connected to its REMOTE connector.
This allows you to use a USB keyboard, a USB mouse, two 4K UHD
monitors, a speaker set, and a microphone on a console for accessing
two HDMI-enabled computers. For intuitive and fast switching
between two computers, you can not only press the PC1/PC2
pushbuttons or the optional wired QuickSwitch TM button but also
input their corresponding keyboard hotkeys. This dual-monitor HDMI
2.0 KVM switch supports a maximum video resolution of 3840 x
2160@60Hz, ensuring optimal display quality to meet your specific
requirements. This 2x2 HDMI 2.0 KVM switch functions in two modes:
Single-port Switching Mode, consisting of two states, and Hybrid
Switching Mode, consisting of four states. The Hybrid Switching
Mode enables the simultaneous display of these sources on the two
console monitors, providing greater flexibility and customization in
managing your display configurations.
2. PACKAGE CONTENTS
HKU-A1B-0202 unit x 1 USB-A to USB-B Male Cable x 2
Quick Installation Guide x 1 Wired QuickSwitch TM button
DC 12V Power Adapter x 1 (optional)
HDMI-A to HDMI-A Male
Remote Control (optional)
Cable x 4
3. CONNECTION DIAGRAM
The diagram illustrated below is an example, the actual application
may vary. All illustrated computer, accessories and monitors are not
included in the package, it is for reference only.

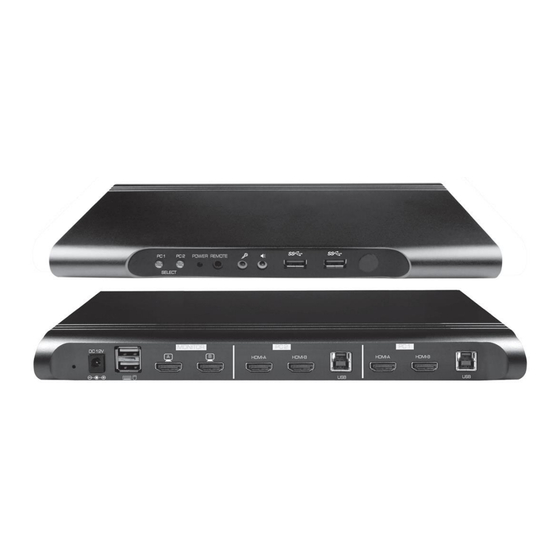

4. FRONT & REAR PANEL OVERVIEW
Front & Rear Panels
Mark Description
a. PC1/PC2 pushbuttons with LED backlight
b. LED Indicators (Red:Power; Green:PC1/PC2 backlit button)
c. 3.5mm Phone Jack (for optional wired QuickSwitchTM button)
d. 3.5mm Phone Jack (to Microphone)
e. 3.5mm Phone Jack (to Headphone/Speaker)
f. USB 3.0 Type-A Ports (to USB Peripheral Devices)
g. IR Receiver
h. Unit Restart Recessed Button
i. 12V DC Power Jack
j. USB 1.1 Type-A Ports (to Keyboard/Mouse)
k. HDMI 2.0 Type-A Port (to primary monitor input)
l. HDMI 2.0 Type-A Port (to secondary monitor input)
m. HDMI 2.0 Type-A Port (to PC2 primary video output)
n. HDMI 2.0 Type-A Port (to PC2 secondary video output)
o. USB 3.0 Type-B Port (to PC2 via USB A-to-B cable)
p. HDMI 2.0 Type-A Port (to PC1 primary video output)
q. HDMI 2.0 Type-A Port (to PC1 secondary video output)
r. USB 3.0 Type-B Port (to PC1 via USB A-to-B cable)
5. INSTALLATION
1. Utilize two HDMI cables and one USB cable to establish connections
between HDMI Input A (p), HDMI Input B (q), and USB 3.0 Port (r)
with the primary video output (p), secondary video output (q), and
USB port of PC1 (r).
2. Replicate step 1 procedure with PC2. Connect HDMI Input A (m),
HDMI Input B (n), and USB port (o).
3. Connect the primary monitor input to the HDMI A output (k).
Secondary monitor connects to HDMI B output (l).
4. Connect a keyboard and mouse to the dedicated USB ports (j).
5. Connect a microphone into the designated (d) microphone jack
and a speaker into the designated (e) speaker jack.
6. Power on the HKU-A1B-0202 unit by inserting the DC plug of the
power adapter into the power jack (i).
7. Next, power on PC1 and PC2. When the unit is switched to either of
the PC1 or PC2, its monitor will display a plug-and-play message as
shown below. If necessary, connect any USB peripheral devices into
the available (f) socket.
8. The setup is now complete, and you can begin to use your
KVM.
Page 1/3
6. OPERATION
HKU-A1B-0202 is operated through two operation modes: Single-
port Switching Mode consisting of states 1 and 2 and Hybrid-
Switching Mode consisting of states 3, 4, 5, and 6. The state 1 of
Single-port Switching Mode is the factory default state.
1. Front-panel PC1/PC2 Push button Operation
Refer to the following diagram, where the utilization of the front-
panel PC1/PC2 buttons enable a direct switching between states 1
and 2. For details regarding the operation of the PC1/PC2 buttons,
please consult the [7. Hotkey Reference List] section on next page.
2. Keyboard Hotkey Operation
You may use various keyboard hotkeys to operate the KVM. Each
keyboard hotkey includes at least three (some include four)
consecutive keystrokes. The leading two keystrokes define the
hotkey preceding sequence. Note that a hotkey preceding
sequence should be pressed within 2 seconds. Otherwise, the
input hotkey preceding sequence will be considered invalid.
See more details in [7. Hotkey Reference List] section on next page
for available keyboard hotkeys.
> Essential Notes for the Unit Operation
a. The PC1/PC2 button only applies between states 1 and 2 of the
Single-port Switching Mode.
b. As only states 1, 2, 5, and 6 are equipped with EDID Emulation
function, the monitors will not undergo the hot-plug detection
procedure during transitions between these states. Therefore,
the application window(s) will stay at its (their) original position
at the extended desktop of the two monitors. However, once
the user performs operation of switching to state 3 or 4, the
monitors will undergo the hot-plug procedure, which might
result in the re-arrangement of the application window(s).
c. Below diagram illustrates the issue of rearrangement of the App.
windows between two scenarios described as above mentioned.
