Summary of Contents for Highlite International DAP CDI-160BT

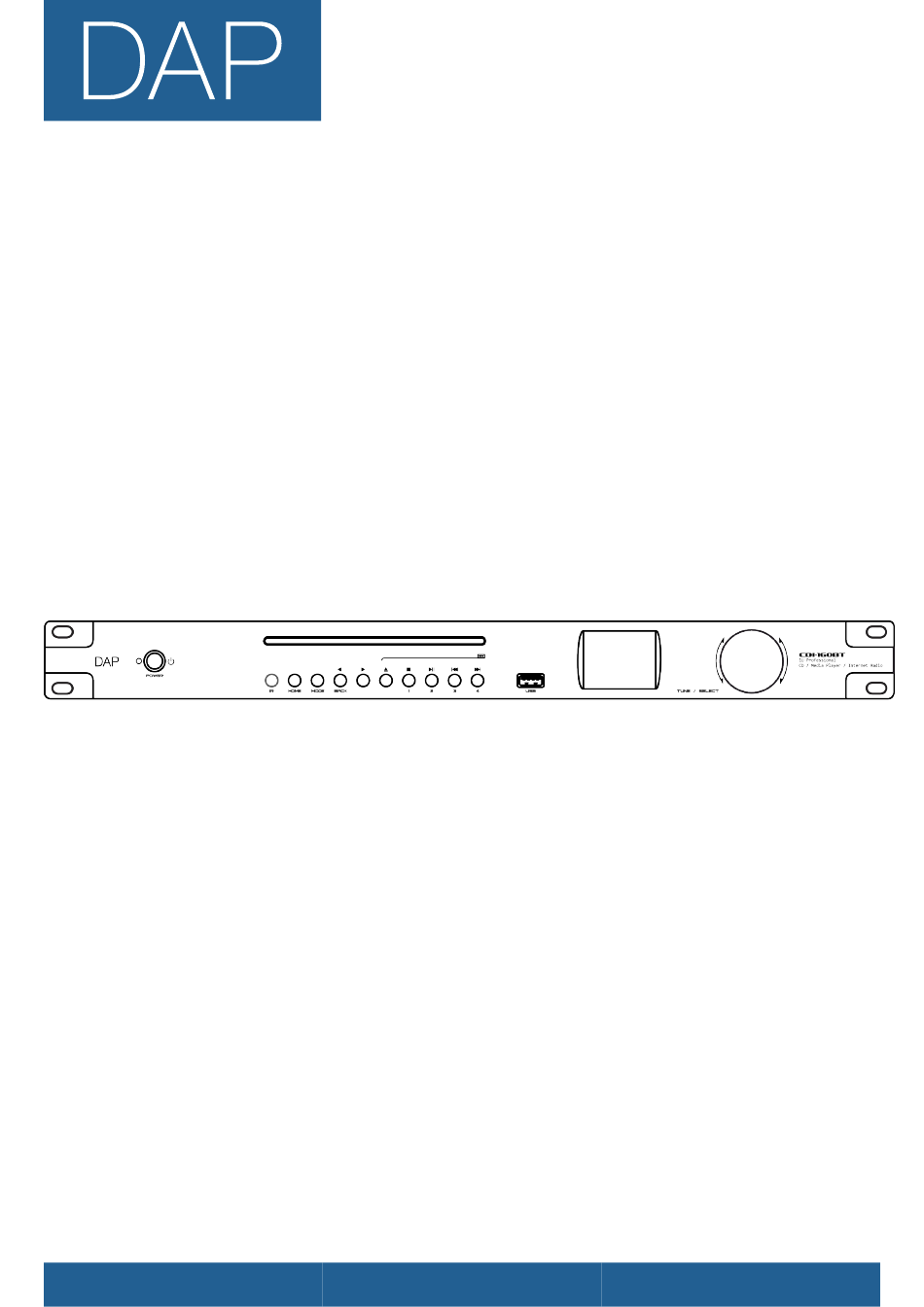

- Page 1 QUICK START GUIDE ENGLISH V1.0 CDI-160BT Product code: D1244...
- Page 2 Highlite International and its authorized service providers are not liable for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or reliance on the information contained in this document.
-
Page 3: Table Of Contents
CDI-160BT Table of contents 1. Introduction ............................1.1. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • DAP CDI-160BT • • Schuko to IEC power cable (1,5 m) • •... -
Page 5: Symbols And Signal Words
CDI-160BT 1.4. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 6: Safety
CDI-160BT Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions DANGER Danger for children For adult use only. -
Page 7: Requirements For The User
Requirements for the User This product may be used by ordinary persons. Installation and maintenance may be carried out by ordinary persons. Service shall be carried out only by instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 8: Description Of The Device
Description of the Device The DAP CDI-160BT is a CD and media player and is designed for installation into a 19-inch rack. The device features DAB+, FM and an internet radio, as well as a USB port and Bluetooth 5.3. There are both balanced and unbalanced outputs on the back of the device. -
Page 9: Product Specifications
CDI-160BT 3.3. Product Specifications Model: CDI-160BT Outputs: Main outputs 3 Main output connector 3-pin XLR / RCA Playback: Supported audio files AAC/AAC+ / FLAC / MP3 / WAV Supported format FAT32 Maximum storage size 512 GB Media input/output USB-A USB type 2.0 ... - Page 10 CDI-160BT Weight 2,8 kg IP rating IP20 (indoor use only) Thermal Specifications: Maximum ambient temperature 40 °C Minimum ambient temperature 0 °C Included Items: Included cables IEC cable Included remotes IR remote Product code: D1244...
-
Page 11: Installation
CDI-160BT Installation 4.1. Safety Instructions for Installation Attention Make sure that there is enough space for ventilation around the device. • • Do not block the ventilation openings. Without proper heat dissipation and air circulation, the internal components may overheat. This can result in product damage. •... -
Page 12: Installation Of The Batteries
CDI-160BT 4.4. Installation of the Batteries The device can be operated with an IR remote control. The remote control is included in the delivery. The remote control is delivered without batteries. It accepts 2 x AAA 1,5 V (alkaline) batteries. To install the batteries: 01) Press on the battery compartment cover and slide it downwards to open the battery compartment. -
Page 13: Setup And Operation
CDI-160BT Setup and Operation 5.1. Setup Example For the complete instructions of operation of this device, refer to the user manual. You can find the latest version of the user manual on our website www.highlite.com. This is a typical setup with 2 streaming devices and 2 active speakers connected through an amplifier to the device. -
Page 14: Maintenance
Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. Product code: D1244... -
Page 15: Deinstallation, Transportation And Storage
Approval Hereby, Highlite International declares that the device CDI-160BT, product code D1244, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com). - Page 16 DAP is a brand of Highlite International B.V.
