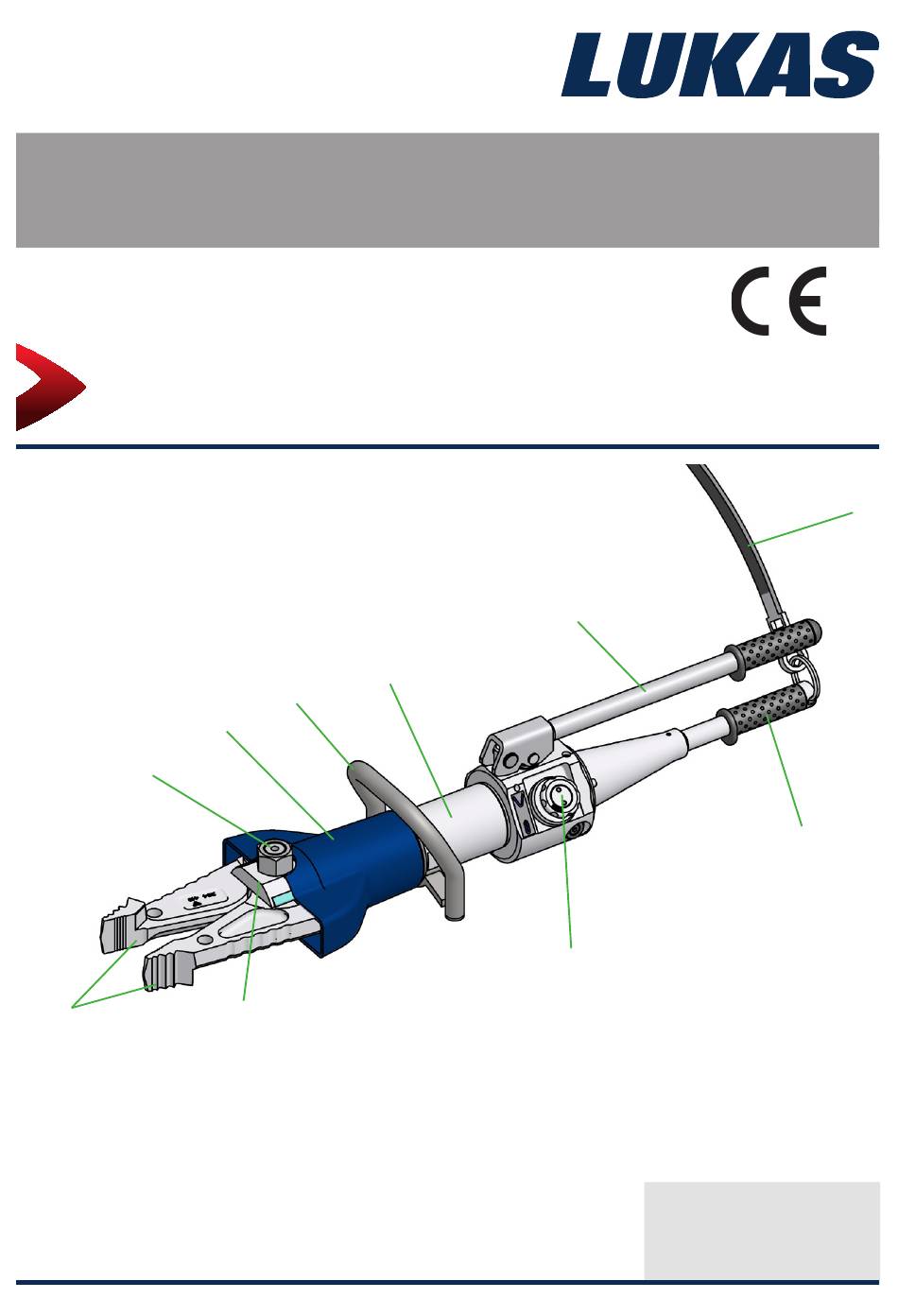

Unitool SC 250 M
7
6
1 Knob (control valve)
2 Hand lever
3 Body of rescue device
4 Handle
5 Protective sleeve
6 Blade arm
(Translation of the original operating instructions)
Operating instructions
for rescue equipment
3
4
5
8
7 Pivot bolt with
8 Rotating head
9 Handle
10 Carrying strap
2
self-locking nut
1
173055085 EN
Edition 09.2024
replaces 03/2023 version
10
9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lukas Unitool SC 250 M
Summary of Contents for Lukas Unitool SC 250 M
- Page 1 Operating instructions for rescue equipment Unitool SC 250 M 1 Knob (control valve) 7 Pivot bolt with 2 Hand lever self-locking nut 3 Body of rescue device 8 Rotating head 4 Handle 9 Handle 5 Protective sleeve 10 Carrying strap...
-
Page 3: Table Of Contents
Content Page 1. Danger classifications Product safety Proper use Functional description 4.1 Description 4.2 Control of the operating movements Operation 5.1 Controlling the working direction 5.2 Moving the blade arms Cutting, spreading, pulling and squeezing 6.1 Safety notes 6.2 Cutting 6.3 Spreading 6.4 Pulling 6.5 Squeezing Dismantling the device/deactivation after operation... -
Page 4: Danger Classifications
1. Danger classifications We differentiate between various different categories of safety instructions. The table shown below provides an overview of the assignment of symbols (pictograms) and signal words to the specific danger and the possible consequences. Damage/ Pictogram Keyword Definition Consequences injury to Death or severe DANGER! Immediate danger injury Potentially Potential death WARNING! dangerous or serious injury situation Less dangerous Minor or slight... -
Page 5: Product Safety
2. Product safety LUKAS products are developed and manufactured to ensure the best performance and quality when used as intended. The operator’s safety is the most important consideration in product design. Furthermore, the operating instructions are intended to help you use LUKAS products safely. - Page 6 (additions or conversions) to device and secure it. Repair the device without obtaining the fault immediately (or have the prior approval of LUKAS. it repaired). Observe all safety and danger All safety and danger information on the device and instructions on the device in the instruction manual.
- Page 7 The build-up of static charges Only touch broken-off or and possible sparking must cut-off parts while wearing be avoided when handling the protective gloves, as the torn/ device. cut edges can be very sharp. The device is filled with When working with or storing hydraulic fluid. This hydraulic the device, ensure that the fluid can be detrimental to function and the safety of the health if it is swallowed or...
-
Page 8: Proper Use
In general, LUKAS hand combination tools can be used to cut, pull, spread, squeeze and lift objects. LUKAS hand combination tools can also be used under water at a depth of up to 40 m (131 ft). ATTENTION! In this case, you must pay strict attention to any leaks in order to prevent risks threatening the environment. -
Page 9: Functional Description
LUKAS hand combination tools are also fitted with a 360° rotating head so that optimal positioning of the blade arms and optimal pumping are always ensured. -
Page 10: Operation
5. Operation 5.1 Controlling the working direction Before activating the hand lever, the working direction is controlled by turning the knob into the required end position. Turned left = close blade arms Turned right = open blade arms spread 5.2 Moving the blade arms Both blade arms are moved into the selected working direction by activating the hand lever (up and down movement). -
Page 11: Cutting, Spreading, Pulling And Squeezing
6. Cutting, spreading, pulling and squeezing 6.1 Safety notes Before the rescue work can commence, the position of the object involved in the accident must be stabilized. You must ensure an adequate substructure and/or adequate support for the object. Worldwide safety guidelines pertaining to the specific country must be observed and complied with. -
Page 12: Cutting
6.2 Cutting The blades must be positioned at a 90° angle to the object to be cut. 90° WRONG RIGHT Higher cutting capacities can be achieved by cutting as close as possible to the blade’s pivot point. WRONG RIGHT When cutting, the blade tips must not be offset (in the crosswise direction) by more than 3 mm (0.12 in.) as otherwise the blade is in danger of breaking. ATTENTION! Avoid cutting particularly high-strength parts of the vehicle’s bodywork (e.g. -
Page 13: Spreading
Only chain sets in a perfect condition may be used. The traction chains must be checked by an expert at least once a year. See the separate operating instructions for the relevant LUKAS chain set in order to correctly position, attach and use the chain sets. -
Page 14: Squeezing
6.5 Squeezing In principle, squeezing can only take place near the tips (see figure below). Squeezing area 7. Dismantling the device/deactivation after operation Once the work has been completed, close the blade arms so that the distance to the tip is just a few mm. This relieves hydraulic and mechanical strain on the device. NOTE: Never store the combination tools with fully-closed blade arms! Complete closure of the blade arms can cause hydraulic and mechanical stress to build up... -
Page 15: Lubricant Recommendation
(dead-man’s function); including when under load. 8.2 Lubricant recommendation Use Klüberpaste ME 31-52 by KLÜBER LUBRICATION to lubricate the mechanical parts such as the blade arms and pins. Maximum temperature: +150°C / +302°F Minimum temperature: -15°C / +5°F ATTENTION! B efore using lubricants which do not correspond to the above-mentioned specifications and/or are not purchased from LUKAS, you must contact LUKAS itself. -
Page 16: Repairs
Service work may only be performed by the device manufacturer or by personnel trained by the device manufacturer and authorized LUKAS dealers. Only original LUKAS spare parts may be used to replace all components (see spare parts list), as special tools and compliance with assembly instructions, safety aspects and inspections are required (see also "Maintenance and Servicing”... -
Page 17: Repairs
9.3 Repairs 9.3.1 Replacing the blade, protective sleeve and handle 1. First of all, carefully clean the rescue equipment. 2. Next, close the blade arms so that the tips are almost touching. NOTE: The blade bolts are only accessible when the blade arms are almost touching. 3. - Page 18 8. Finally, remove the protective sleeve “H” from the equipment as depicted. 9. Loosen the bolts “J” on the handle and remove them. 10. Remove the handle “K” in the direction of the lever elements, and also remove the washers “L” located beneath. 11.
-
Page 19: Troubleshooting
All damaged and/or illegible labels (safety notices, type plate, etc.) must be replaced. Procedure: 1. Remove damaged and/or illegible labels. 2. Clean surfaces with industrial alcohol. 3. Affix new labels. Make sure to affix the labels in the correct positions. If this is no longer known, you should contact your authorized LUKAS dealer or LUKAS directly. 10. Troubleshooting Fault Check Cause Solution... -
Page 20: Technical Data
Contact an authorized LUKAS dealer or the LUKAS Customer Service Department directly if the malfunctions cannot be rectified. The address for the LUKAS Customer Service department is: LUKAS Hydraulik GmbH Weinstraße 39, D-91058 Erlangen Postfach 2560, D-91013 Erlangen Tel.: (+49) 09131 / 698 - 348 Fax.: (+49) 09131 / 698 - 353... -
Page 21: Pivot Bolt Torque
11.2 Pivot bolt torque Device type SC 250 M Pivot bolt M24 x 1.5 [mm] Wrench size [in.] 1.42 [Nm] 100 +10 Torque [lbf.in.] 885 + 89 11.3 Cutting capacities Cutting material Cutting material dimensions SC 250 M max. [mm] [in.] Round material steel (acc. -
Page 22: Declarations Of Conformity
12. Declarations of conformity... - Page 23 Combination tool Item number regulations. SC 250M 81-30-10 Supply of Machinery (Safety) Regulations 2008 BS EN ISO 12100: 2010-12-31 BS EN 13204: 2016-09-30 LUKAS Hydraulik GmbH Weinstraße 39, 91058 Erlangen Deutschland LUKAS Hydraulik GmbH, 91058 Erlangen, Germany Erlangen, 30.08.2022 Seite/Page 1von/of1...
-
Page 24: Notes
A unit of the IDEX Corporation Weinstrasse 39, 91058 Erlangen, Germany Tel.: (+49) 0 91 31 / 698 - 0 Fax.: (+49) 0 91 31 / 698 - 394 email: lukas.info@idexcorp.com www.lukas.com Made in GERMANY Unitool_SC250M_manual_173055085_en.indd © Copyright 2024 LUKAS Hydraulik GmbH...
