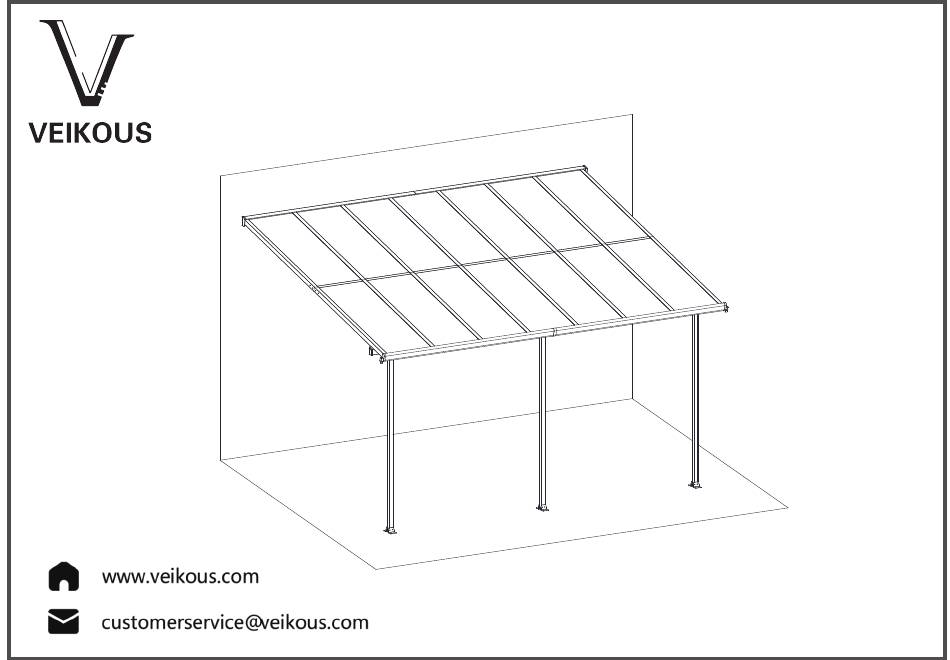

- Page 1 Wall Mount Gazebo 10’x14’ Please read the entire instruction carefully before assembly. lt is HIGHLY RECOMMENDED familiarizing yourself with the parts and double check the appropriate parts for each step.
- Page 2 (Mon - Fri, 10:00 am to 7:00 pm EST). Always keep safety in mind as your structure is being built. You can also e-mail customerservice@veikous.com Keep these instructions for future reference. or visit www.veikous.com. Please prefer email contact. Due to busy lines,...
- Page 3 Notes During Assembly 1.Please note you install the panels with the UV protected side out (White plastic film) remove plastic on both sides film before inserting panels and locking in place in Diagram A. 2.Product dimensions can be adjusted to your specific needs: ·...
- Page 4 Parts List Part Qty.
- Page 5 Hardware List Part Qty.
- Page 6 Required tools Acrylic latex Electric drill exterior caulking Tape Measure (5M) Spanner Pencil Gloves Ladder...
- Page 7 Step1 LLx6 AAx6 BBx12 CCx6 MMx6 MMx2 CC x2 BB x4 AA x2 LL x2...
- Page 8 Step2 BBx24 LLx16 AAx16 C2x6 D2x1 D1x1 MMx16 CCx16 MM x4 MM x4 CC x4 CC x4 BB x8 AA x4 BB x8 LL x4 AA x4 LL x4 MM x4 CC x4 BB x8 LL x4 AA x4...
- Page 9 Step3 AAx6 BBx12 CCx6 MMx6 LLx6 MM x2 CC x2 BB x4 AA x2 LL x2...
- Page 10 Step4 EEx4 FFx4 A2x1 HHx2 GGx4 296cm-279cm Wall (116.5"-109.8") GG x4 EE x4 HH x2...
- Page 11 Step5 EEx4 FFx4 A1x1 HHx2 GGx4 Wall HH x2 GG x4 EE x4...
- Page 12 Step6 HHx4 JJx8 KKx8 OLx1 ORx1 OR x1 HH x2 Caulk...
- Page 13 Step7 I Ix24 BBx48 LLx24 E2x6 JJx6 E1x6 CCx24 MMx24 Repeat six times MMx4 CC x4 BB x8 LL x4 I I x4...
- Page 14 Step8 I Ix4 BBx8 LLx4 F1x1 F2x1 JJx1 CCx4 MMx4 MMx4 CC x4 BB x8 LL x4 I I x4...
- Page 15 Step9 I Ix4 BBx8 LLx4 F3x1 F4x1 F2x1 JJx1 CCx4 MMx4 MMx4 CC x4 BB x8 LL x4 I I x4...
- Page 16 Step10 KKx2...
- Page 17 Repeat six times Step11 KKx6...
- Page 18 Step12 Caulk...
- Page 19 Step13 Px12 Caulk...
- Page 20 Step14 NLx1 NRx1 HHx16 HH x2...
- Page 21 Step15 OOx8 G1x1...
- Page 22 Step16 MMx8 MRx1 MLx1...
- Page 23 Step17 EEx12 GGx12 FFx12 EE x4 GG x4 FF x4...
- Page 24 Step18 LLx8 MMx8 NOTE:Check all screws to make sure they are tightened.
- Page 25 Enjoy Your Product!
